  • SKU: AdvancedHVACPack

Fieldpiece Advanced HVAC Kit

$8,632.39 $9,054.21
GST included.
DESCRIPTION

FREE SHIPPING: Fieldpiece Advanced HVAC Kit by Cooltools HVAC-R

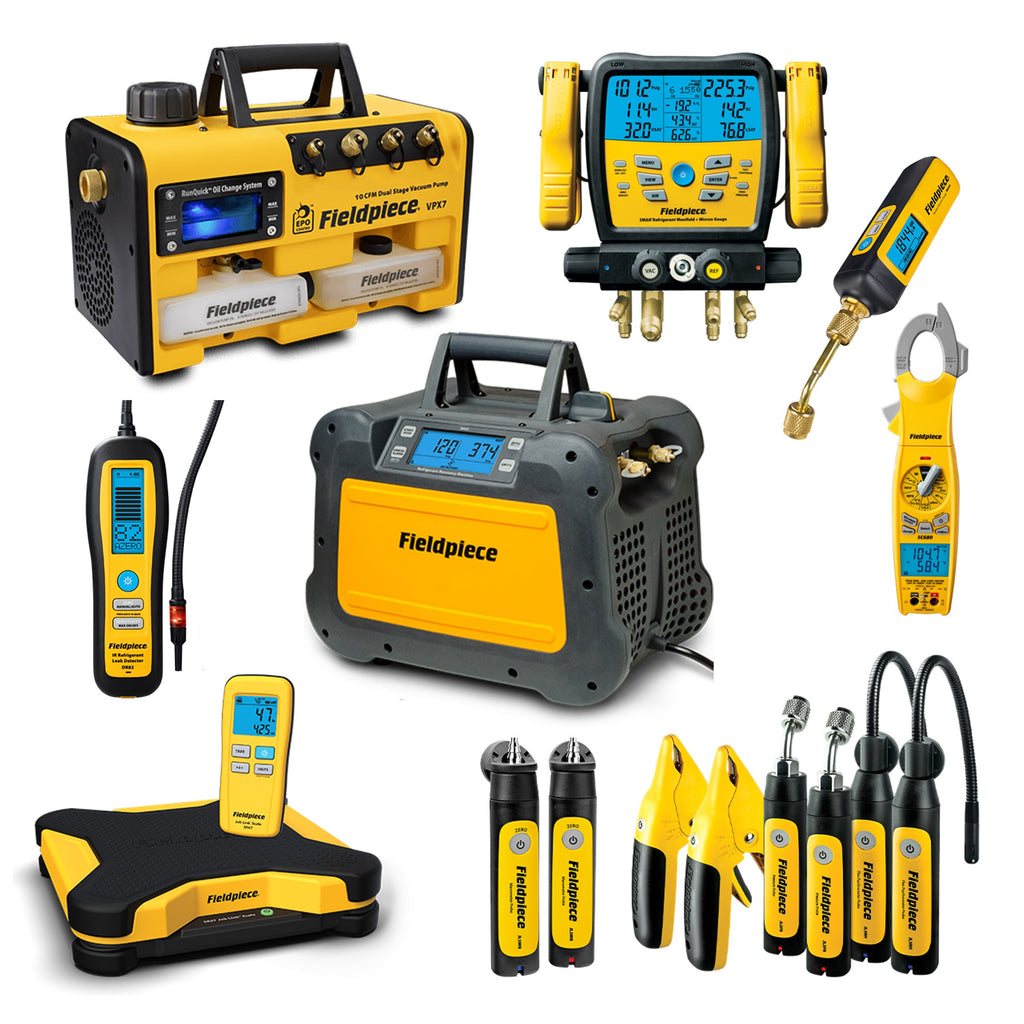

This Cooltools HVAC-R exclusive pack includes:


FEATURES AND CAPABILITIES

Fieldpiece VPX7 283 L/M 10 CFM A2L Certified 2 Stage Vacuum Pump - VPX7INT

The NEW Fieldpiece VPX7INT high-efficiency Vacuum Pump with RunQuick™ Oil Change System - No Fuss - No Mess

  • 10 CFM (283 l/m)flow rate with 15 microns ultimate vacuum
  • 3/4 HP DC motor
  • RunQuick™ Oil Change System offers on-the-fly oil changes in seconds
  • Extra oil bottle storage
  • Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
  • Backlit oil reservoir to view condition of oil and system
  • Water resistant to withstand direct rain
  • Patented lightest weight pump
  • Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
  • Sturdy base stays upright
  • Small footprint – 1,346 cubic inches
  • Quarter-turn gas ballast with LED indicator
  • Convenient, removable cord storage
  • Error messages: indicate wrong power source or other errors
  • Suitable for A2L class refrigerants
    • R32, R1234YF, R1234ZE, R512A, 419B, 439A & other

What's Included:

  • VPX7INT Vacuum Pump
  • 2 x 8oz RunQuick Oil Containers (Filled)
  • Operator’s Manual

Specifications:

Flow Rate 10 CFM (283 l/m)
Oil Capacity 8oz (237mL)
Oil Compatibility Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
Fieldpiece part numbers OIL8X3, OIL32, OIL128
Oil Backlight Blue LED
Oil Drain Ball valve
Port Sizes (1) 1/4”, (2) 3/8”, (1) 1/2”
Compressor Rotary vane, two stage
Motor  3/4 HP Brushless DC
RPM 2500
Power Source 240 VAC @ 50 Hz 1 phase
Nominal Current Draw 6.0 AAC
Ultimate Vacuum at Input Ports 15 microns
Operating Environment -1.1°C to 50°C
Dimensions 201 mm x 296 mm x 406 mm
Weight 11.1 kg


Fieldpiece Recovery Unit - MR45INT

Refrigerant Recycling has never been easier or faster with the MR45INT Recovery Machine

  • Dual cylinder compressor with long life and low friction with ceramic lined cylinders

  • Auto Shut Off when -10 Kpa reached
  • Protected from voltage drop (runs as low as 190 VAC)
  • Single dial self purge
  • Twice the RPMs (3,000) and twice the horsepower (1HP - 0.745kW) with DC Motor
  • Extra large condenser cools faster, especially on hot days
  • Light Weight at only 10 Kgs
  • Water & Rain resistant
  • Easy access ports
  • Easy hose connections and built-in power cord storage
  • Large backlit display with status messages
  • UL Verified to Section 608 of EPA Clean Air Act
  • UL Verified to AHRI Standard 740
  • A2L ready including R32
  • Also can be used for transferring SF6 (sulfur hexafluoride) a non-flammable gas used in electrical components.

What's Included:

  • MR45 Refrigerant Recovery Machine
  • 10 Extra Mesh Screens for Input Port
  • 3 Extra O-ring for Input Port
  • Operator’s Manual

Specifications:

Display 2 x 10000 count LCD with status messages
Backlight Blue color
Measurement rate 3.3 times per second, nominal
Input Port Pressure Sensor Range -30” Hg to 600 psig
Output Port Pressure Sensor Range -30” Hg to 600 psig
High Pressure Cutoff 558 psig, nominal
Resolution and Units 1 psig (1” Hg), 0.05 bar (2 cmHg),  0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg)
Pressure Sensor Accuracy ± 0.5 “ Hg (Vacuum)  ± (0.6% of reading +2 psig)
Final Recovery Vacuum  14.9” Hg
Compressor Twin cylinder reciprocating (oil-less)
DC Motor 1 HP (variable smart speed)
Power Source 220 - 240 VAC @ 50 Hz 1 phase
Max Current Draw 7.0 Amp
Valve Single dual-route ball valve
Input Port Filtration 9 mm mesh screen, stainless
Dimensions 376 mm x 250 mm x 344 mm
Weight 10 Kgs
Operating Environment 32°F to 122°F (0°C to 50°C)
Storage Environment -4°F to 140°F (-20°C to 60°C)
Approved Refrigerants R12, R12345YF, R134A, R22, R32, R401A (MP39), R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R412A, R500, R502, R507, R509



Fieldpiece Wireless 4-Valve Digital Manifold with Micron Gauge - SM480vINT

The newly designed Fieldpiece Manifolds are stronger and more robust than ever before!

      Data Logging
      • Stores up to 9 jobs internally
      • Easy download via USB port
      • Displays % free storage space before logging begins
      • Logs up to 7 days (168 continuous hours)

      Tightness Test built-in feature
      • Check for leaks after repairs or installations
      • View pressure differential over time
      • Timer tracks duration of test
      • Temperature compensated with SL temp to avoid false positives

      Customisable Menu
      • Adjust auto power off duration
      • Adjust backlight duration
      • Set high and low vacuum alarms
      • Select each unit of measurement individually

      Receives Wireless Measurements
      Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.
      Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.

      Increase Professionalism with Job Link® System App
      Streamline and simplify your call even further with the Job Link System App. See your measurements up to 100 metres away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.
      • View measurements on SMAN and/or in Job Link App
      • Monitor and record refrigerant weight
      • Direct 100 meter wireless range (no transmitter needed)

      What's Included:

      • SM480vINT
      • 2 x TC24 Wired Type-K Pipe Clamp thermocouple
      • 1 x ATA1 Type-K Bead Thermocouple with clip
      • 1 x ANC11 Padded Drawstring Case

      Specifications:

      Display LCD (5 inches diagonal)
      Backlight Blue (adjustable duration)
      Low Battery Indication Displayed when the battery voltage drops below the operating level
      Over Range Display OL for pressure, – – – – for temperature
      Auto Power Off 30 minutes of inactivity (adjustable)
      Maximum Manifold Pressure 800 Psig (5500 kPa)
      Battery Type 6 x AA alkaline
      Battery Life 350 hours typical (without vacuum, backlight, and wireless)
      Radio Frequency 2.4 GHz
      Wireless Range 305 meters line of sight – distance decreases through obstructions
      Data Port Micro USB (for extracting data logs or updating firmware)
      Operating Environment 0°C to 50°C at <75% RH
      Storage Environment -20°C to 60°C at <80% RH (with battery removed)
      Temperature Coefficient 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C)
      Weight 1.83 kg
      Water Resistant Designed to IP54


      Fieldpiece Infrared Refrigerant Leak Detector - DR82

      Infrared Refrigerant Leak Detector for HVACR - Superior Sensitivity in a Rugged Design for HVACR

      • 10-year sensor life
      • Doesn’t trigger on soap bubbles and oil
      • Compact – designed to fit in your hand
      • Multiple alarms
      • LED lighted tip and loud beep help find leaks in noisy and dark environments
      • Sensitivity better than 0.03 oz/yr (1g/yr)
      • Ruggedized and IP54-certified
      • 10-hour battery charge
      • Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
      • Non-conductive, sturdy probe that stays where you want it.
      • Weighs less than a pound
      • Works on A2L Refrigerants

      What's Included:

      • Advanced IR Refrigerant Leak Detector (DR82)
      • 5 x Replacement Filtered Tips (RFT6)
      • Wall Charger with USB-C Cable (RCA3)
      • Blow-Molded Case (ABM2)
      • Operator’s Manual

      Specifications:

      Sensor Type Infrared (IR)
      Sensor Life 10 years typical
      Sensitivity Levels High, medium, low, turbo (selectable)
      Maximum Sensitivity 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
      Display Type LCD (backlit for indoor use)
      Detection Feedback Red tip LED, LCD bar graph, LCD digits, beeper
      Refrigerants Detects CFC, HFC, HCFC, HFO and blends and
      doesn’t trigger on oil or soap bubbles
      Response Time <1 seconds typical
      Recovery Time <5 seconds typical
      Body Type Compact, rugged overmolded
      Battery Type 3.7 VDC (nominal) 2600mAh, non-replaceable
      Charge Time 6 hours typical with included charger.
      Battery Life 10 hours typical, backlight off
      Auto Power Off 10 minutes without detection or button press
      Operating Environment 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
      Storage Temperature -4°F to 140°F (-20°C to 60°C); < 80% RH
      Weight 14 oz (400g)
      Water Resistance Designed to IP54



      Fieldpiece Job Link Charge & Air Test Bluetooth Probe Kit JL3KH6

      Take a full system snapshot quickly and easily with the JL3KH6 Charge and Air Test Kit.

      • All measurements can be sent up to 1000’ away directly to your mobile device with the Job Link® System mobile app.
      • Each tool is designed for agility and speed.
      • The pressure probes fit into tight spaces.
      • The pipe clamps use the new Rapid Rail™ sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations.
      • The psychrometers’ flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers. Do more with Job Link probes!

      What's Included:

      • 2 x JL3PR Job Link Pressure Probes for Discharge & Suction Pressure
      • 2 x JL3PC Job Link Premium Pipe Clamp Probes for liquid line subcooling & suction line Superheat
      • 2 x JK3RH Flex Job Link Psychrometer Probes for obtaining Dry Bulb, Wet Bulb, Dew Point Temperatures & Relative Humidity [ RH%]
      • Contained in a quick access padded ANC18 Protective Case
      • 2 x AAA Batteries Per Probe (8 Total)



      Specifications:

      Wireless Range: +300 metres
      Wireless Frequency: 2.4 GHz
      Battery: 2 x AAA (included)
      Battery Life: 150 hrs typical alkaline
      Auto Power Off (APO): 2 hrs (can be disabled)
      Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0

      Job Link™ Pressure Probe - JL3PR
      Connector Type: 45° Standard 1/4” NPT female flare
      Best Accuracy: ±1 psig (±7 kPa)
      Measurement Range: 0 to 580 psig (0 to 4000 kPa)
      Maximum Overload: 800 psig (5500 kPa)
      Water Resistant: Designed to IP55

      Job Link™ Premium Pipe Clamp Probe - JL3PC
      Pipe Compatibility: Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
      Accuracy: ±1°F (±0.6°C)
      Measurement Range: -50°F to 257°F (-46°C to 125°C)
      Stabilization Time: 3 seconds typical
      Measurement Feedback: Beeper and LED
      Water Resistant: Designed to IP55
      Patent: Pending

      Job Link™ Flex Psychrometer Probe - JL3RH
      Flexible Probe: 0.36” (9mm) diameter, 9.25” (235mm) length
      Best Accuracy: ±1°F (±0.6°C) ±2.5 %RH
      Measurement Range: -4°F to 140°F (-20°C to 60°C) 0 %RH to 100 %RH


      Fieldpiece Job Link Wireless Manometer Kit JL3KM2

      The revolutionary new JL3KM2 Job Link® System Manometer probes give HVAC-R pros the freedom to work the way they want to — unrestricted by hoses, so technicians get readings from optimal locations on every system, every time.

      • All-in-one static, gas and draft pressure
      • Record up to 8 readings at once* in Job Link App
      • Accurate and stable measurements
      • Reliable pressure regardless of location
      • Individual pressure readouts
      • Switchable P1 – P2 indicator
      • Easy zero to atmosphere
      • Long-range wireless
      • Job Link® System app compatible

       What's Included:

      • 2x JL3MN Manometer Probe
      • 2x ASP2 Static Pressure Probe and Hose
      • 2x Brass Screw Fitting with Extra Hose
      • 2x Slide Gas Adapter
      • 4x AAA Batteries
      • 1x Padded Case

      Specifications:

      Minimum Device Requirement BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 (Latest compatibility at www.fieldpiece.com)
      Compatible Media Dry, non-corrosive gas
      Pressure Port Tube connector for flexible tubing (4.5 to 8mm ID)
      Units of Measure inWC, mmWC, mbar, psi, Pa
      Accuracy and Ranges: inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00);
      mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0);
      mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00);
      psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165);
      Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930)
      Maximum Overload Pressure 321.08 inWC (11.6 psi; 80.0 kPa)
      Battery Type 2 x AAA, NEDA 24A, IEC LR03
      Battery Life 150 hours typical alkaline. LED slow-blinks red when battery replacement is needed.
      Auto Power Off: 2 hours (APO can be disabled)
      Wireless Range 1000 feet (305 meters) line of sight. Obstructions affect distance.
      Radio Frequency 2.4 GHz
      Operating Environment -10°F to 122°F (-23°C to 50°C) at <75% RH
      Storage Temperature -10°F to 140°F (-23°C to 60°C) at <80% RH (with batteries removed)
      Temperature Coefficient 0.1 x (specified accuracy) per 1.8°F (-10°F to 64°F, 82°F to 122°F), per 1°C (-23°C to 18°C, 28°C to 50°C)
      Weight 0.30 lbs (137 g)


      Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44

      The NEW MG44 Micron Gauge Impact and Weather Resistant designed for the field

      • Confidently perform evacuations with a reliable, leak-proof seal.
      • Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
      • There are three ways to use:
        • View from up to 300 metres away (line of sight) via the Job Link® mobile app
        • View on the Fieldpiece SMAN™ Refrigerant Manifold SM380INT or SM480INT
        • View direct from the MG44’s display
      • Three ways to view the new larger backlit LCD screen is easier to read and its dot-matrix display shows more info including:
        • bar graph
        • rate
        • rate meter
      • IP54-rated weather-resistant.
      • Rugged over-molded construction for extreme impact resistance.
      • Range 50 to 25,000 microns
      • Units of measure: microns (µm) of mercury, mmHg, mbar, mTorr, Torr, and Pascals

      What's Included:

      • Micron Vacuum Gauge - MG44
      • Reversible Coupler Fitting
      • Operator's Manual
      • 2 x AA Alkaline Batteries

      Specifications:

      Minimum Device Requirement BLE 4.0 devices running: iOS® 7.0 or Android™ 5.0
      (Latest compatibility at www.fieldpiece.com)
      Connector type 1/4” SAE male fitting
      Accuracy ±(5% of reading + 5 microns) at 77°F (25°C), 50 to 1000 microns
      Range and Units 50 to 25000 microns of mercury (English),
      6 to 3333 Pascals (Metric),
      0.06 to 33.33 mBar (Metric),
      50 to 25000 mTorr (Metric),
      0.05 to 25 Torr (Metric, equivalent to mmHg)
      Best Resolution 1 micron of mercury (below 2000 microns),
      1 Pascal (below 250 Pascals),
      0.001 mBar (below 2.5 mBar),
      1 mTorr (below 2000 mTorr),
      0.001 Torr (below 2.5 Torr, equivalent to mmHg)
      Battery Type 2 x AA Alkaline, NEDA 15A, JIS UM3, IEC LR6
      Battery Life 40 hours typical alkaline
      Auto Power Off 15 minutes default (APO adjustable)
      Wireless Range 1000 feet (305 meters) line of sight.
      Obstructions affect distance.
      Radio Frequency 2.4 GHz
      Water Resistence IP55
      Operating Environment 14°F to 122°F (-10°C to 50°C) at <75% RH
      Storage Temperature -4°F to 140°F (-20°C to 60°C) at <80% RH (with batteries removed)
      Weight 0.66 lbs (300 g)



      Fieldpiece Digital Wireless Refrigerant Scales 115KG - SRS3

      SRS3 Refrigerant Scales Rugged, Wireless & Water Resistant

      Bluetooth active for direct connection with our Job Link App & directly on your Manifold display

      • Connect to Job Link System Mobile App*
        • Send live weights directly to your device
        • Record and document refrigerant use
      • Long range wireless
      • Flat top bumpers for larger cylinders
      • Max load 252 lbs (114 kg)
      • View units your way
        • Pounds and ounces
        • Pounds only
        • Ounces only
        • Kilograms and grams
        • Kilograms only
        • Grams only

      What's Included:

      • Wireless Refrigerant Scale - SRS3
      • Platform and Remote
      • Rugged Nylon Case with Carrying Strap
      • Standard 9-volt Battery (remote) Installed
      • 6 x AA Batteries (platform) Installed
      • Operator’s Manual

      Please Note: Gas bottle in the image not included, for demonstration purposes only.

      Specifications:

      Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity
      Over range “OL” is displayed
      Maximum load 252 lbs (114 kg)
      Auto power off 30 minutes of inactivity (no change in weight or buttons pressed), (APO can be disabled)
      Backlight Blue, turns off in 60 seconds if no buttons are pressed
      Accuracy: ±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg)
      ±0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg)
      Resolution and Units lb oz (0.25 oz), lb (0.1 lb), oz (0.1 oz), kg g (10 g), kg (0.1 kg), g (10 g)
      Temperature coefficient 0.1 x (specified accuracy) per °F
      Wireless Range 1000 feet (305 meters)
      Radio Frequency 2400 MHz
      Battery Type: Remote Display: 9V, NEDA 1604, JIS 006P, IEC 6F22
      Platform: 6 x AA, NEDA 15A, JIS UM3, IEC LR6
      Battery Life is displayed when the battery voltage drops below the operating level
      Remote Display 80 hours typical alkaline (without backlight)
      Platform 200 hours typical alkaline
      Operating environment 32°F to 122°F (0°C to 50°C) at <75% RH
      Storage temperature -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
      Weight 7.3 lbs (3.3 kg)



      Fieldpiece True RMS AC/DC Wireless Power Clamp Meter - SC680INT

      Built for HVAC-R - Packed with ideal measurements perfect for mini-splits!

      Whether you’re working on small circuitry in mini-splits or on large commercial units, the new SC680 is packed with everything you need to install, service or troubleshoot any HVAC-R system.

      • Measures Power (kW) for system efficiency
      • Verify 3-phase rotation with just two leads.
      • Filter out noise to get true voltage and frequency with low pass filter
      • Take more accurate VAC and AAC readings with True RMS
      • Has True RMS and Low Pass Filter (LPF) to obtain accurate VFD readings
      • Test Diodes and Resistance up to 50MΩ
      • Measures start/run capacitors
      • Magnet for mounting meter during use
      • Molex tips reach into power connectors
      • Safety rated CAT IV-600V/CAT III-1000V

      What's Included:

      • SC680INT Bluetooth Clamp Meter
      • ADLS2 Deluxe Test Lead Set with Gold Plated Tips with Removable Sheath
      • ASA2 Short Leads with Alligator Clips
      • 2 x ATB1 Type K Thermocouples
      • 2 x Velcro Straps
      • 9V Alkaline Battery (not installed)
      • ANC7 Padded Case
      • Operator's Manual

      Specifications:

      Measure up to 600 Amps AC & DC
      Display 10000 count dual display
      Backlight 5 minute duration with auto-off, blue color
      Overrange “OL” or “-OL” is displayed
      Measurement rate 3.3 times per second, nominal Zero: Automatic
      Operating environment 32°F to 122°F (0°C to 50°C) at <70%RH
      Storage temperature -4°F to 140°F (-20°C to 60°C), 0 to 80%RH (with battery removed)
      Accuracy Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
      Temperature coefficient 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F),
      28°C to 50° C (82°F to 122°F)]
      APO (Auto Power Off) Approx. 30 minutes
      Power Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
      Battery life 100 hours typical alkaline (No wireless, no backlight)
      Low battery indication Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level
      Dimensions 247mm(H) x 79mm(W) x 48mm(D)
      Weight Approx. 345g including battery
      Altitude Up to 6562 ft (2000m)
      Overload protection 1000VDC or 750VAC rms unless otherwise stated
      Test leads Use UL listed test leads that comply to UL61010-031 rated CATIV 600V, CATIII 1000V or above. Included test leads are gold-plated and have removable safety caps.

      Please operate the instrument following all instructions of the operator's manual to avoid impairing the safety of the product.



      WARRANTY

      1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)

      AUTHORISED RETAILER

      Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.



      SCROLL UP AND "ADD TO CART" TODAY.

      REVIEWS

      RELATED PRODUCTS



      BACK TO TOP
