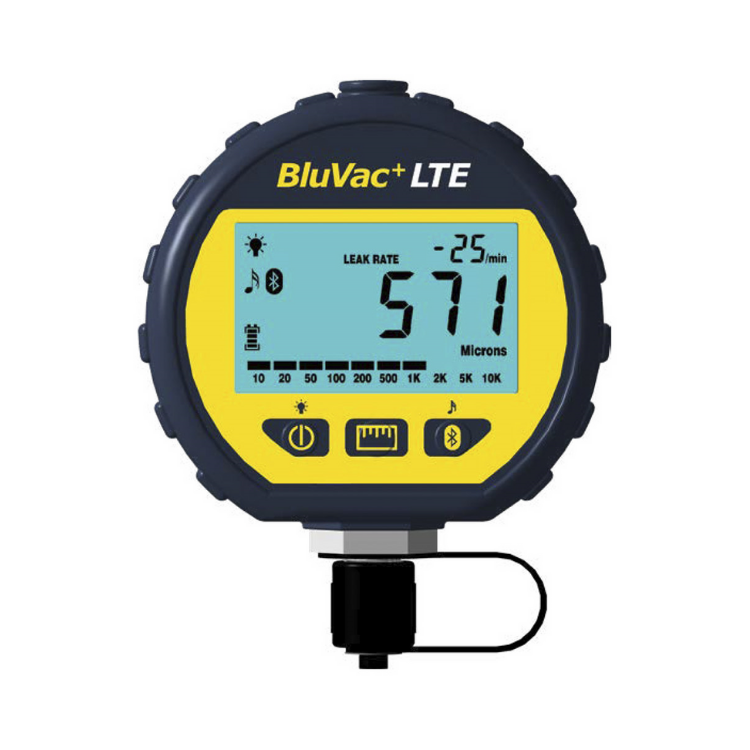

AccuTools BluVac+ LTE Wireless Digital Vacuum Gauge with Leak Rate Indication - A10732
  • SKU: A10732

AccuTools BluVac+ LTE Wireless Digital Vacuum Gauge with Leak Rate Indication - A10732

$785.39
GST included.
DESCRIPTION

DOWNLOAD MANUAL

DOWNLOAD TECHNICAL MATRIX



Ideal for the HVAC-R professional, the AccuTools® BluVac+ LTE Digital Vacuum Gauge is a state-of-the-art digital vacuum gauge utilizing patented technology to deliver the highest accuracy available.

Possessing the same accuracy and reliability as the BluVac+ Pro gauge, the LTE is ideal for budget-conscious technicians without sacrificing performance.

With the BluVac+ LTE, you can accurately measure vacuum pressure in Microns, Pascals, Millibar, Millitorr, and mmHg with a resolution of 1 micron.

Operating for up to 300 hours on a single 9V alkaline battery, the BluVac+ LTE has Bluetooth Smart® wireless capability and sports a large 1/2″ numeric display and a bright blue backlight.

The BluVac+ Micro can be operated stand-alone or in conjunction with an iOS or Android compatible app. It is small, lightweight, rugged and easy to use.


FEATURES

  • Bluetooth Smart® Wireless Capability
  • 0 to 25,000 Micron Range with 1 Micron Resolution
  • Measures Vacuum in Microns, Pascals, Millibar, Millitorr and mmHg
  • “Analog” Vacuum Level Bar Graph and Evacuation Indicator
  • Vacuum Leak Rate Indicator
  • Automatic Oil Sensor
  • Built-in memory retains all previous settings
  • Large, high-visibility back-lit LCD display
  • Rugged, Compact Design with Protective Rubber Boot
  • Long Battery Life
  • Calibration Self Test - can be field calibrated with no special equipment
  • Ideal for HVAC-R Service and Industrial Use
  • 12 Month Warranty



App Features

  • View vacuum on digital gauge or graph
  • Bar graph vacuum indicator
  • Leak check feature
  • Record evacuation process
  • Export as graphical PDF
  • Export as comma-delimited CSV



    WHAT'S INCLUDED

    • BluVac+ LTE Digital Vacuum Gauge
    • Detachable Swivel Hook
    • Brass Coupler
    • Battery (One 9V Alkaline)
    • Instruction Manual



    SPECIFICATIONS

    Range 0 – 25,000 Microns
    (3333 Pa, 33.330 mBar, 25,000 mTorr, 25.000 mmHg)
    Vacuum Accuracy 5% of Reading +/- 5 Microns
    Vacuum Resolution 1 Micron
    (1 Pa, 0.001 mBar, 1 mTorr, 0.001 mmHg)
    Warm-up Time Instant
    Response Time Instant
    Power 9V Alkaline Battery  (9V Lithium recommended for low temperature operation)
    Battery Life Up to 300 Hours (Bluetooth disabled)
    Wireless Range Up to100m (328’) Line-of-Sight
    Compatibility Android and iOS compatible
    Vacuum Port Fitting: ¼” Male Flare – Nickel Plated for Durability with Dust Cap
    Maximum Overpressure 1,000 PSI
    Operating Temperature 10°F – 122°F (-12°C – 50°C)
    Dimensions 3.5” x 3” x 1.25” (9cm x 7.5cm x 3cm)
    Weight 6 oz. (170g) including Battery and Swivel Hook
