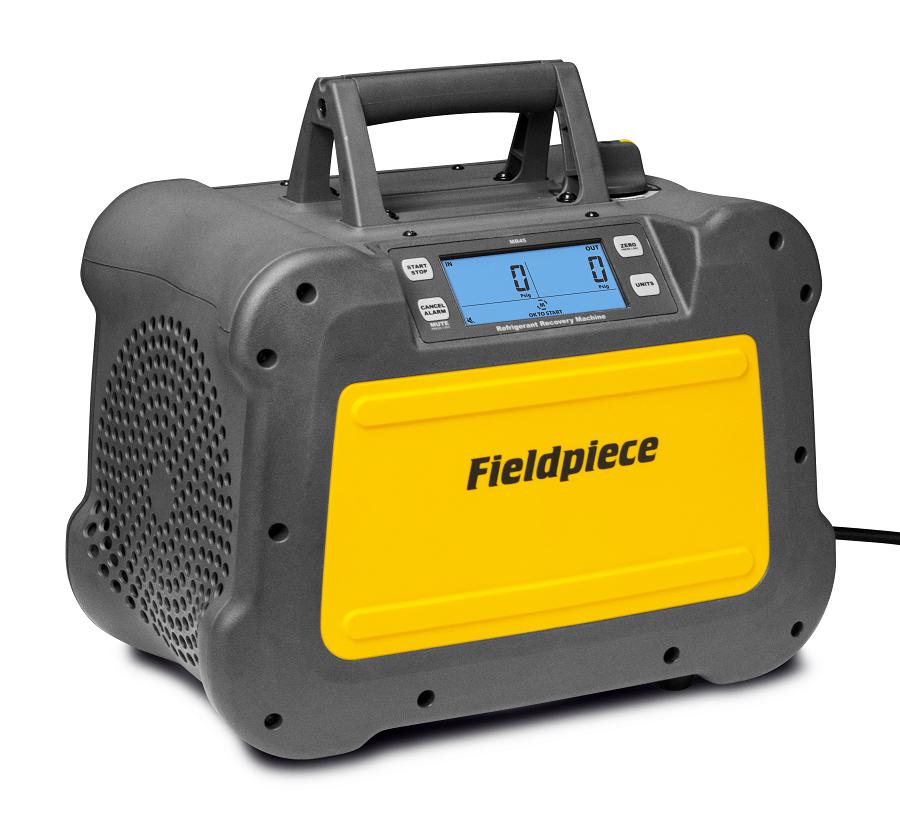

Fieldpiece Recovery Unit - MR45INT

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

MR45INT Highest Vapour Recovery Rate Performance

This full-featured unit has onboard system monitoring that adjusts motor performance to handle liquid and run twice as fast on vapour. The MR45 can also step up low voltage at the supply input to deliver full power to the motor where high voltage drop is a problem. This protects your recovery unit and allows you to get on with the job regardless of power issues.

The Fieldpiece MR45INT is equipped with a powerful 1HP motor and oversized condenser, this recovery unit performs flawlessly on those longer and hotter jobs in the peak of the busy Summer season.

This Fieldpiece Recovery Unit has an easy-to-read display, is lightweight (10Kgs), comes with straight hose connection ports, and a single dial makes this machine user-friendly while being tough enough for everyday use. Its small footprint means it takes up less valuable room in your service vehicle as well.

FEATURES AND CAPABILITIES

• Display:  2 x 10000 count LCD with status messages
• Backlight:  Blue colour
• Measurement rate:  3.3 times per second, nominal
• Input Port Pressure Sensor Range:  -30” Hg to 600 psig
• Output Port Pressure Sensor Range:  -30” Hg to 600 psig
• High-Pressure Cutoff:  558 psig, nominal
• Resolution and Units:  1 psig (1” Hg), 0.05 bar (2 cmHg),  0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg)
• Pressure Sensor Accuracy:  ± 0.5 “ Hg (Vacuum)  ± (0.6% of reading +2 psig)
• Final Recovery Vacuum:  14.9” Hg
• Compressor:  Twin-cylinder reciprocating (oil-less)
• DC Motor:  1 HP (variable smart speed)
• Power Source:  220 - 240 VAC @ 50 Hz 1 phase
• Max Current Draw: 7.0 Amp
• Valve:  Single dual-route ball valve
• Input Port Filtration:  9 mm mesh screen, stainless
• Dimensions:  376 mm x 250 mm x 344 mm
• Weight:  10 Kgs
• Operating Environment:  32°F to 122°F (0°C to 50°C)
• Storage Environment:  -4°F to 140°F (-20°C to 60°C)
• Approved Refrigerants:  R12, R12345YF, R134A, R22, R32, R401A (MP39), R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R412A, R500, R502, R507, R509.

WHAT'S INCLUDED?

• MR45 Refrigerant Recovery Machine
• 10 Extra Mesh Screens for Input Port
• 3 Extra O-ring for Input Port
• Operator’s Manual

WARRANTY

1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
