Fieldpiece Infrared Refrigerant Leak Detector - DR82

Fieldpiece

DR82

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

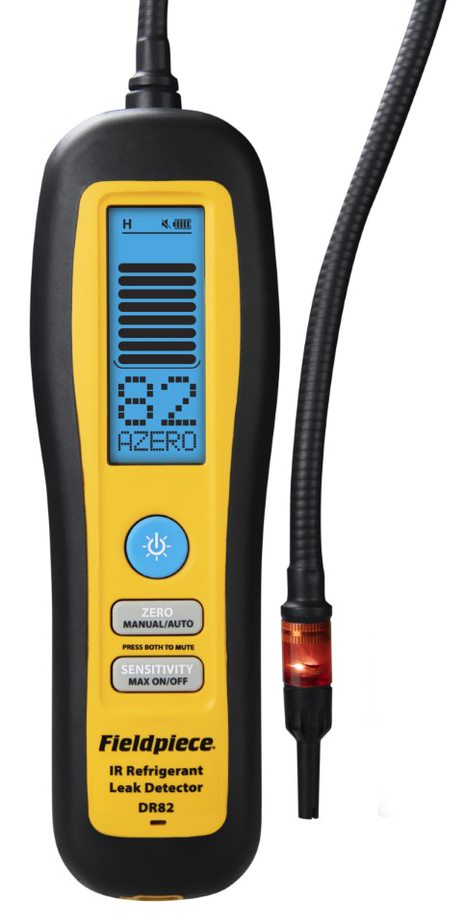

DR82 Infrared Leak Detector for Refrigerants

Like all of Fieldpiece's test instruments, the DR82 Infrared Refrigerant Leak Detector is designed exclusively to make the HVACR Technician's job easier, faster, safer and more efficient.

If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Our newest detector can sniff out leaks at <1.0 gram/yr. That’s 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR82 triggers on all HFC, CFC, HCFC, HFO and blends. You are in control with the manual or automatic zeroing function - it's your choice.

This NEW Fieldpiece Leak Detector is highly sensitive, durable, and more reliable than anything else on the market. The new DR82 Infrared Refrigerant Leak Detector features a large LCD that provides information about the leaks with bar graphs and numerical values.

The ergonomic design fits naturally in your hand. The ruggedized construction stands up to abuse most other leak detectors can't handle. The ten-hour battery life lets you work all day before recharging. If need you can still use it while charging! The mute and Max mode functions allow you to work the way you want to work.

This NEW DR82 is designed for the field with rugged blow moulded carrying cases and water-resistant bodies.

FEATURES AND CAPABILITIES

  • State-of-the-art infrared sensor
  • Good for a wide range of situations due to consistent detection across many refrigerants
  • 10-year sensor life
  • Sensitivity better than 0.03 oz/yr (1g/yr)
  • Doesn’t trigger on soap bubbles and oil
  • Compactly designed to fit in your hand
  • Multiple alarms
  • LED lighted tip and loud beep help find leaks in noisy and dark environments
  • Ruggedized and IP54-certified
  • 10-hour battery charge
  • Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
  • Non-conductive, sturdy probe that stays where you want it.
  • Weighs less than a pound
  • Detects all HFC, CFC, HCFC, HFO and blends
  • Works on A2L Refrigerants

WHAT'S INCLUDED?

  • Advanced IR Refrigerant Leak Detector (DR82)
  • 5 x Replacement Filtered Tips (RFT6)
  • Wall Charger with USB-C Cable (RCA3)
  • Blow-Molded Case (ABM2)
  • Operator’s Manual

SPECIFICATIONS

Sensor Type Infrared (IR)
Sensor Life 10 years typical
Sensitivity Levels High, medium, low, turbo (selectable)
Maximum Sensitivity 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
Display Type LCD (backlit for indoor use)
Detection Feedback Red tip LED, LCD bar graph, LCD digits, beeper
Refrigerants Detects CFC, HFC, HCFC, HFO and blends and
doesn’t trigger on oil or soap bubbles
Response Time <1 seconds typical
Recovery Time <5 seconds typical
Body Type Compact, rugged overmolded
Battery Type 3.7 VDC (nominal) 2600mAh, non-replaceable
Charge Time 6 hours typical with included charger.
Battery Life 10 hours typical, backlight off
Auto Power Off 10 minutes without detection or button press
Operating Environment 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
Storage Temperature -4°F to 140°F (-20°C to 60°C); < 80% RH
Weight 14 oz (400g)
Water Resistance Designed to IP54
US Patent www.fieldpiece.com/patents



WARRANTY

1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
