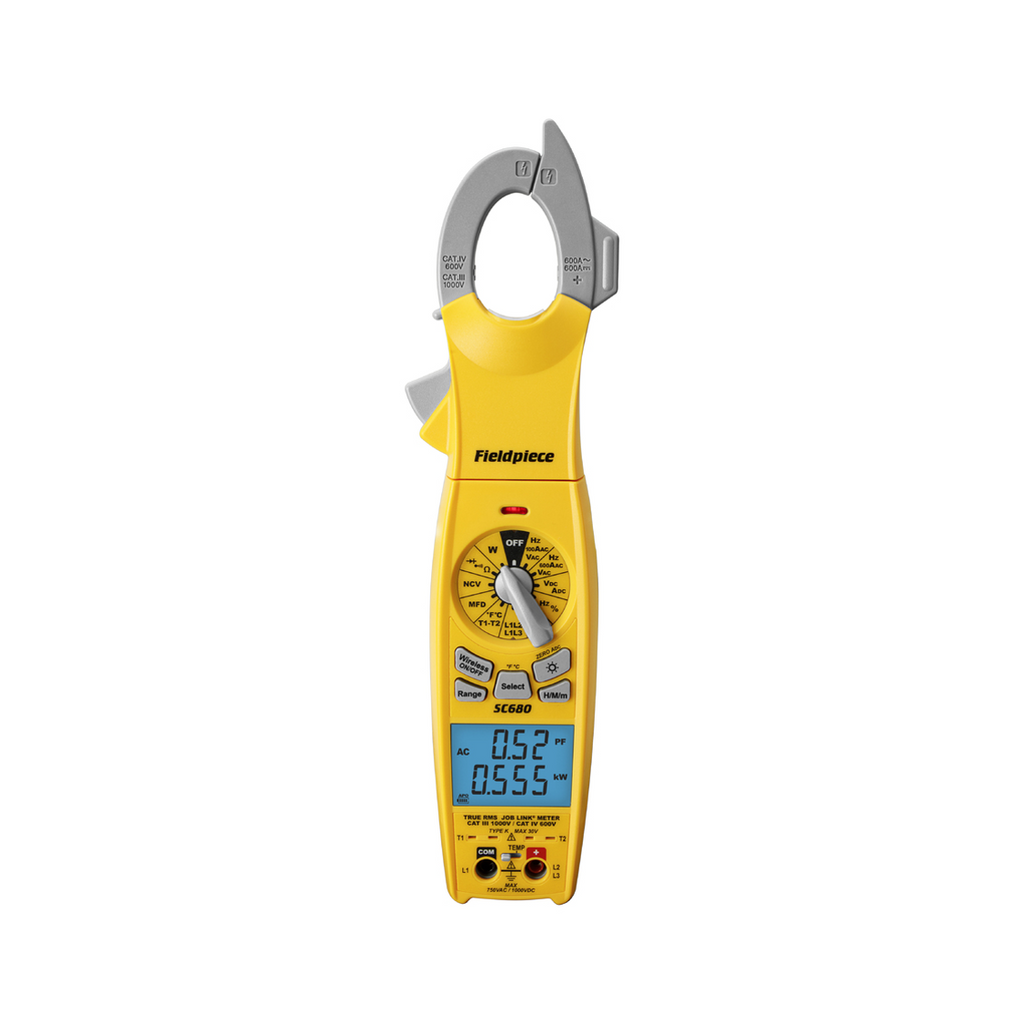

Fieldpiece True RMS AC/DC Wireless Power Clamp Meter - SC680INT
  • SKU: SC680INT

Fieldpiece True RMS AC/DC Wireless Power Clamp Meter - SC680INT

$712.80
GST included.
    DESCRIPTION

    Whether you are working on small circuitry in mini-splits or on large commercial units, the new Fieldpiece SC680 is packed with everything you need to install, service or troubleshoot any HVAC-R system.

    The SC680 is the top-of-the-line clamp meter with wireless functionality for the HVAC-R professional. Send your electrical measurements directly to the Job Link® System mobile app. Leave the meter behind a closed blower door and view the current measurement on your mobile device.


    Help determine system efficiency by directly measuring power consumption (W) of the system. Use this value to inform your customer of energy-saving measures you can take to help them save money on their energy bills.

    Fieldpiece top-of-the-line HVAC-R Meters - not only communicate with Job Link, but you can also measure power consumption (kW) to determine system efficiency. Send and save electrical measurements to Job Link® System mobile App. Plus, calculate power (kW) and system efficiency for in depth understanding of system performance in real-world conditions.

    With Test 3-Phase Power Test, you can conveniently test phase rotation without carrying an extra meter or lead.

    Features a rugged dual display with broad temperature range tolerance that allows for testing in freezers and on rooftops.

    FEATURES AND CAPABILITIES

    • Measures Power (kW) for system efficiency
    • Verify 3-phase rotation with just two leads.
    • Filter out noise to get true voltage and frequency with low pass filter
    • Take more accurate VAC and AAC readings with True RMS
    • Has True RMS and Low Pass Filter (LPF) to obtain accurate VFD readings
    • Test Diodes and Resistance up to 50MΩ
    • Measures start/run capacitors
    • Magnet for mounting meter during use
    • Molex tips reach into power connectors
    • Safety rated CAT IV-600V/CAT III-1000V

    WHAT'S INCLUDED

    • SC680INT Bluetooth Clamp Meter
    • ADLS2 Deluxe Test Lead Set with Gold Plated Tips with Removable Sheath
    • ASA2 Short Leads with Alligator Clips
    • 2 x ATB1 Type K Thermocouples
    • 2 x Velcro Straps
    • 9V Alkaline Battery (not installed)
    • ANC7 Padded Case
    • Operator's Manual

    SPECIFICATIONS

    Measure up to 600 Amps AC & DC
    Display 10000 count dual display
    Backlight 5 minute duration with auto-off, blue color
    Overrange “OL” or “-OL” is displayed
    Measurement rate 3.3 times per second, nominal Zero: Automatic
    Operating environment 32°F to 122°F (0°C to 50°C) at <70%RH
    Storage temperature -4°F to 140°F (-20°C to 60°C), 0 to 80%RH (with battery removed)
    Accuracy Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
    Temperature coefficient 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F),
    28°C to 50° C (82°F to 122°F)]
    APO (Auto Power Off) Approx. 30 minutes
    Power Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
    Battery life 100 hours typical alkaline (No wireless, no backlight)
    Low battery indication Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level
    Dimensions 247mm(H) x 79mm(W) x 48mm(D)
    Weight Approx. 345g including battery
    Altitude Up to 6562 ft (2000m)
    Overload protection 1000VDC or 750VAC rms unless otherwise stated
    Test leads Use UL listed test leads that comply to UL61010-031 rated CATIV 600V, CATIII 1000V or above. Included test leads are gold-plated and have removable safety caps.

    Please operate the instrument following all instructions of the operator's manual to avoid impairing the safety of the product.



    WARRANTY

    1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
