FREE SHIPPING: Fieldpiece Beast Mode Pack - Includes Vacuum Pump, Recovery Machine, Refrigerant Manifold, Leak Detector, Vacuum Gauge, Refrigerant Scales, Clamp Meter and Tool Bag

$6,944.65 $7,310.16
GST included.
DESCRIPTION

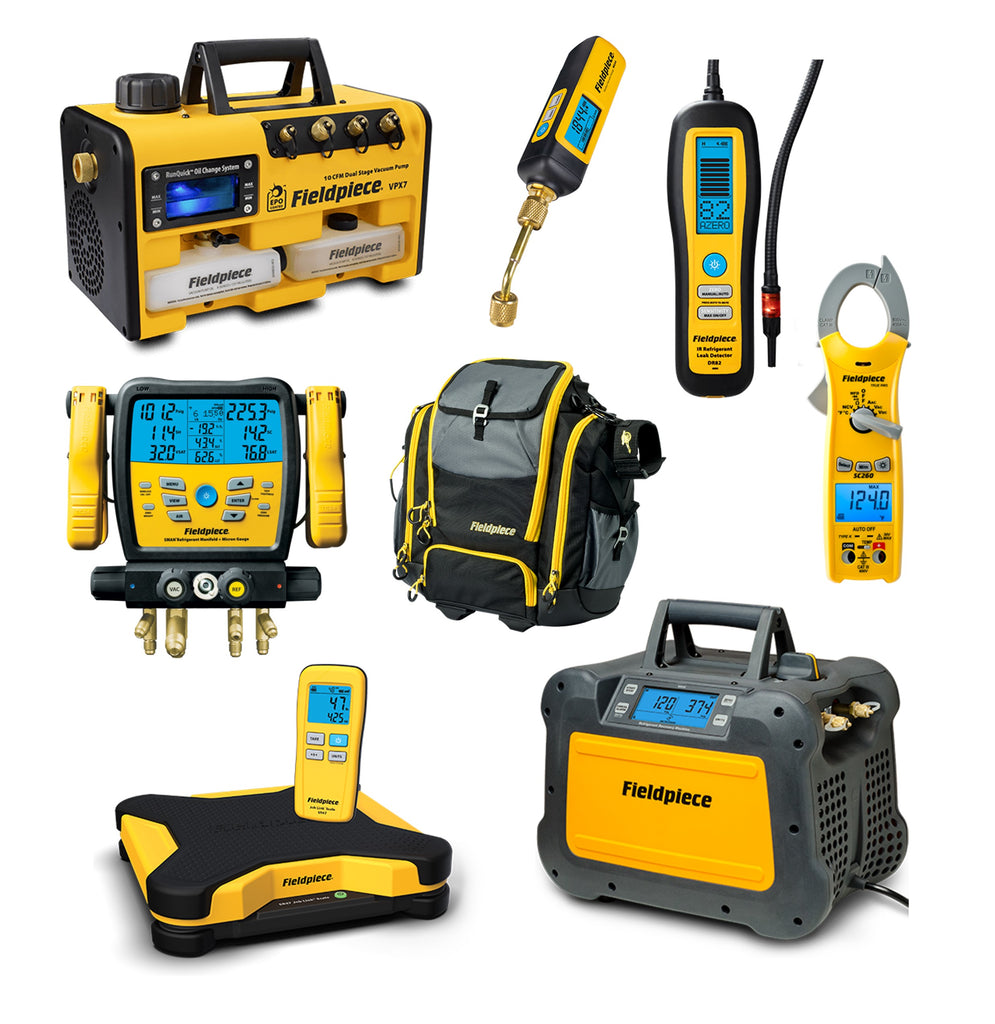

Fieldpiece Beast Mode Pack by Cooltools HVAC-R

This Cooltools HVAC-R exclusive pack includes:


FEATURES AND CAPABILITIES

Fieldpiece VPX7 283 L/M 10 CFM A2L Certified 2 Stage Vacuum Pump - VPX7INT

The NEW Fieldpiece VPX7INT high-efficiency Vacuum Pump with RunQuick™ Oil Change System - No Fuss - No Mess

  • 10 CFM (283 l/m)flow rate with 15 microns ultimate vacuum
  • 3/4 HP DC motor
  • RunQuick™ Oil Change System offers on-the-fly oil changes in seconds
  • Extra oil bottle storage
  • Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
  • Backlit oil reservoir to view condition of oil and system
  • Water resistant to withstand direct rain
  • Patented lightest weight pump
  • Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
  • Sturdy base stays upright
  • Small footprint – 1,346 cubic inches
  • Quarter-turn gas ballast with LED indicator
  • Convenient, removable cord storage
  • Error messages: indicate wrong power source or other errors
  • Suitable for A2L class refrigerants
    • R32, R1234YF, R1234ZE, R512A, 419B, 439A & other

What's Included:

  • VPX7INT Vacuum Pump
  • 2 x 8oz RunQuick Oil Containers (Filled)
  • Operator’s Manual

Specifications:

Flow Rate 10 CFM (283 l/m)
Oil Capacity 8oz (237mL)
Oil Compatibility Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
Fieldpiece part numbers OIL8X3, OIL32, OIL128
Oil Backlight Blue LED
Oil Drain Ball valve
Port Sizes (1) 1/4”, (2) 3/8”, (1) 1/2”
Compressor Rotary vane, two stage
Motor  3/4 HP Brushless DC
RPM 2500
Power Source 240 VAC @ 50 Hz 1 phase
Nominal Current Draw 6.0 AAC
Ultimate Vacuum at Input Ports 15 microns
Operating Environment -1.1°C to 50°C
Dimensions 201 mm x 296 mm x 406 mm
Weight 11.1 kg


Fieldpiece Recovery Unit - MR45INT

Refrigerant Recycling has never been easier or faster with the MR45INT Recovery Machine

  • Dual cylinder compressor with long life and low friction with ceramic lined cylinders

  • Auto Shut Off when -10 Kpa reached
  • Protected from voltage drop (runs as low as 190 VAC)
  • Single dial self purge
  • Twice the RPMs (3,000) and twice the horsepower (1HP - 0.745kW) with DC Motor
  • Extra large condenser cools faster, especially on hot days
  • Light Weight at only 10 Kgs
  • Water & Rain resistant
  • Easy access ports
  • Easy hose connections and built-in power cord storage
  • Large backlit display with status messages
  • UL Verified to Section 608 of EPA Clean Air Act
  • UL Verified to AHRI Standard 740
  • A2L ready including R32
  • Also can be used for transferring SF6 (sulfur hexafluoride) a non-flammable gas used in electrical components.

What's Included:

  • MR45 Refrigerant Recovery Machine
  • 10 Extra Mesh Screens for Input Port
  • 3 Extra O-ring for Input Port
  • Operator’s Manual

Specifications:

Display 2 x 10000 count LCD with status messages
Backlight Blue color
Measurement rate 3.3 times per second, nominal
Input Port Pressure Sensor Range -30” Hg to 600 psig
Output Port Pressure Sensor Range -30” Hg to 600 psig
High Pressure Cutoff 558 psig, nominal
Resolution and Units 1 psig (1” Hg), 0.05 bar (2 cmHg),  0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg)
Pressure Sensor Accuracy ± 0.5 “ Hg (Vacuum)  ± (0.6% of reading +2 psig)
Final Recovery Vacuum  14.9” Hg
Compressor Twin cylinder reciprocating (oil-less)
DC Motor 1 HP (variable smart speed)
Power Source 220 - 240 VAC @ 50 Hz 1 phase
Max Current Draw 7.0 Amp
Valve Single dual-route ball valve
Input Port Filtration 9 mm mesh screen, stainless
Dimensions 376 mm x 250 mm x 344 mm
Weight 10 Kgs
Operating Environment 32°F to 122°F (0°C to 50°C)
Storage Environment -4°F to 140°F (-20°C to 60°C)
Approved Refrigerants R12, R12345YF, R134A, R22, R32, R401A (MP39), R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R412A, R500, R502, R507, R509



Fieldpiece Wireless 4-Valve Digital Manifold with Micron Gauge - SM480vINT

The newly designed Fieldpiece Manifolds are stronger and more robust than ever before!

      Data Logging
      • Stores up to 9 jobs internally
      • Easy download via USB port
      • Displays % free storage space before logging begins
      • Logs up to 7 days (168 continuous hours)

      Tightness Test built-in feature
      • Check for leaks after repairs or installations
      • View pressure differential over time
      • Timer tracks duration of test
      • Temperature compensated with SL temp to avoid false positives

      Customisable Menu
      • Adjust auto power off duration
      • Adjust backlight duration
      • Set high and low vacuum alarms
      • Select each unit of measurement individually

      Receives Wireless Measurements
      Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.
      Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.

      Increase Professionalism with Job Link® System App
      Streamline and simplify your call even further with the Job Link System App. See your measurements up to 100 metres away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.
      • View measurements on SMAN and/or in Job Link App
      • Monitor and record refrigerant weight
      • Direct 100 meter wireless range (no transmitter needed)

      What's Included:

      • SM480vINT
      • 2 x TC24 Wired Type-K Pipe Clamp thermocouple
      • 1 x ATA1 Type-K Bead Thermocouple with clip
      • 1 x ANC11 Padded Drawstring Case

      Specifications:

      Display LCD (5 inches diagonal)
      Backlight Blue (adjustable duration)
      Low Battery Indication Displayed when the battery voltage drops below the operating level
      Over Range Display OL for pressure, – – – – for temperature
      Auto Power Off 30 minutes of inactivity (adjustable)
      Maximum Manifold Pressure 800 Psig (5500 kPa)
      Battery Type 6 x AA alkaline
      Battery Life 350 hours typical (without vacuum, backlight, and wireless)
      Radio Frequency 2.4 GHz
      Wireless Range 305 meters line of sight – distance decreases through obstructions
      Data Port Micro USB (for extracting data logs or updating firmware)
      Operating Environment 0°C to 50°C at <75% RH
      Storage Environment -20°C to 60°C at <80% RH (with battery removed)
      Temperature Coefficient 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C)
      Weight 1.83 kg
      Water Resistant Designed to IP54


      Fieldpiece Infrared Refrigerant Leak Detector - DR82

      Infrared Refrigerant Leak Detector for HVACR - Superior Sensitivity in a Rugged Design for HVACR

      • 10-year sensor life
      • Doesn’t trigger on soap bubbles and oil
      • Compact – designed to fit in your hand
      • Multiple alarms
      • LED lighted tip and loud beep help find leaks in noisy and dark environments
      • Sensitivity better than 0.03 oz/yr (1g/yr)
      • Ruggedized and IP54-certified
      • 10-hour battery charge
      • Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
      • Non-conductive, sturdy probe that stays where you want it.
      • Weighs less than a pound
      • Works on A2L Refrigerants

      What's Included:

      • Advanced IR Refrigerant Leak Detector (DR82)
      • 5 x Replacement Filtered Tips (RFT6)
      • Wall Charger with USB-C Cable (RCA3)
      • Blow-Molded Case (ABM2)
      • Operator’s Manual

      Specifications:

      Sensor Type Infrared (IR)
      Sensor Life 10 years typical
      Sensitivity Levels High, medium, low, turbo (selectable)
      Maximum Sensitivity 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
      Display Type LCD (backlit for indoor use)
      Detection Feedback Red tip LED, LCD bar graph, LCD digits, beeper
      Refrigerants Detects CFC, HFC, HCFC, HFO and blends and
      doesn’t trigger on oil or soap bubbles
      Response Time <1 seconds typical
      Recovery Time <5 seconds typical
      Body Type Compact, rugged overmolded
      Battery Type 3.7 VDC (nominal) 2600mAh, non-replaceable
      Charge Time 6 hours typical with included charger.
      Battery Life 10 hours typical, backlight off
      Auto Power Off 10 minutes without detection or button press
      Operating Environment 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
      Storage Temperature -4°F to 140°F (-20°C to 60°C); < 80% RH
      Weight 14 oz (400g)
      Water Resistance Designed to IP54



      Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44

      The NEW MG44 Micron Gauge Impact and Weather Resistant designed for the field

      • Confidently perform evacuations with a reliable, leak-proof seal.
      • Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
      • There are three ways to use:
        • View from up to 300 metres away (line of sight) via the Job Link® mobile app
        • View on the Fieldpiece SMAN™ Refrigerant Manifold SM380INT or SM480INT
        • View direct from the MG44’s display
      • Three ways to view the new larger backlit LCD screen is easier to read and its dot-matrix display shows more info including:
        • bar graph
        • rate
        • rate meter
      • IP54-rated weather-resistant.
      • Rugged over-molded construction for extreme impact resistance.
      • Range 50 to 25,000 microns
      • Units of measure: microns (µm) of mercury, mmHg, mbar, mTorr, Torr, and Pascals

      What's Included:

      • Micron Vacuum Gauge - MG44
      • Reversible Coupler Fitting
      • Operator's Manual
      • 2 x AA Alkaline Batteries

      Specifications:

      Minimum Device Requirement BLE 4.0 devices running: iOS® 7.0 or Android™ 5.0
      (Latest compatibility at www.fieldpiece.com)
      Connector type 1/4” SAE male fitting
      Accuracy ±(5% of reading + 5 microns) at 77°F (25°C), 50 to 1000 microns
      Range and Units 50 to 25000 microns of mercury (English),
      6 to 3333 Pascals (Metric),
      0.06 to 33.33 mBar (Metric),
      50 to 25000 mTorr (Metric),
      0.05 to 25 Torr (Metric, equivalent to mmHg)
      Best Resolution 1 micron of mercury (below 2000 microns),
      1 Pascal (below 250 Pascals),
      0.001 mBar (below 2.5 mBar),
      1 mTorr (below 2000 mTorr),
      0.001 Torr (below 2.5 Torr, equivalent to mmHg)
      Battery Type 2 x AA Alkaline, NEDA 15A, JIS UM3, IEC LR6
      Battery Life 40 hours typical alkaline
      Auto Power Off 15 minutes default (APO adjustable)
      Wireless Range 1000 feet (305 meters) line of sight.
      Obstructions affect distance.
      Radio Frequency 2.4 GHz
      Water Resistence IP55
      Operating Environment 14°F to 122°F (-10°C to 50°C) at <75% RH
      Storage Temperature -4°F to 140°F (-20°C to 60°C) at <80% RH (with batteries removed)
      Weight 0.66 lbs (300 g)



      Fieldpiece Digital Wireless Refrigerant Scales 115KG - SRS3

      SRS3 Refrigerant Scales Rugged, Wireless & Water Resistant

      Bluetooth active for direct connection with our Job Link App & directly on your Manifold display

      • Connect to Job Link System Mobile App*
        • Send live weights directly to your device
        • Record and document refrigerant use
      • Long range wireless
      • Flat top bumpers for larger cylinders
      • Max load 252 lbs (114 kg)
      • View units your way
        • Pounds and ounces
        • Pounds only
        • Ounces only
        • Kilograms and grams
        • Kilograms only
        • Grams only

      What's Included:

      • Wireless Refrigerant Scale - SRS3
      • Platform and Remote
      • Rugged Nylon Case with Carrying Strap
      • Standard 9-volt Battery (remote) Installed
      • 6 x AA Batteries (platform) Installed
      • Operator’s Manual

      Please Note: Gas bottle in the image not included, for demonstration purposes only.

      Specifications:

      Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity
      Over range “OL” is displayed
      Maximum load 252 lbs (114 kg)
      Auto power off 30 minutes of inactivity (no change in weight or buttons pressed), (APO can be disabled)
      Backlight Blue, turns off in 60 seconds if no buttons are pressed
      Accuracy: ±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg)
      ±0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg)
      Resolution and Units lb oz (0.25 oz), lb (0.1 lb), oz (0.1 oz), kg g (10 g), kg (0.1 kg), g (10 g)
      Temperature coefficient 0.1 x (specified accuracy) per °F
      Wireless Range 1000 feet (305 meters)
      Radio Frequency 2400 MHz
      Battery Type: Remote Display: 9V, NEDA 1604, JIS 006P, IEC 6F22
      Platform: 6 x AA, NEDA 15A, JIS UM3, IEC LR6
      Battery Life is displayed when the battery voltage drops below the operating level
      Remote Display 80 hours typical alkaline (without backlight)
      Platform 200 hours typical alkaline
      Operating environment 32°F to 122°F (0°C to 50°C) at <75% RH
      Storage temperature -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
      Weight 7.3 lbs (3.3 kg)



      Fieldpiece TRMS Combination Mini Clamp Meter - SC260

      Value-packed compact Clamp Meter with True RMS scoped for HVAC-R Testing

      • Volts AC/DC
      • True RMS
      • 400 Amps AC
      • Temperature F/C
      • Capacitance
      • Non-contact voltage
      • 40 Mega Ohm with 0.01 resolution
      • Continuity
      • Diode Test
      • Max/Min/Hold
      • LCD Backlight
      • Low Battery Indicator
      • Hi-voltage Warning

      What's Included:

      • SC260 Meter
      • ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
      • ATB1 Wrap Tab Type K Thermocouple
      • Velcro Strap
      • 9V Battery
      • ANC4 Padded Case

      Specifications:

      Display 4000 count
      Backlight 5 minute duration with auto-off. Blue color. SC260 only
      Overrange (OL) or (-OL) is displayed
      Measurement rate 3 times per second, nominal
      Zero Automatic
      Operating environment 32°F to 122°F (0°C to 50°C) at <70% relative humidity
      Storage temperature -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
      Accuracy Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
      Temperature coefficient 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C(82°F to 122°F)]
      APO (Auto Power Off) Approx. 30 minutes
      Power 9V, NEDA 1604A, IEC 6LR61 9V alkaline battery
      Battery life 200 hours typical alkaline (SC220/SC240); 150 hours typical alkaline (SC260)
      Low battery indication Battery icon blinks and “LO.bt” is displayed when the battery voltage drops below the operating level
      Dimensions 205.5mm(H) x 67.4mm(W) x 45.1mm(D)
      Weight Approx. 265g including battery
      Altitude Up to 6562 ft (2000m)
      Overload protection 600 VDC or 600VAC rms unless otherwise stated
      Test leads Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above
      Included Test leads are gold- plated and have removeable safety caps

      Fieldpiece Tool Bag - BG44

      • Rugged, elevated rack for hand tools
      • Padded pockets to protect meters
      • Magnetic tray
      • Quick carry single strap
      • Compact rugged design

      What's Included:

      • Tool Rack for approximately 11 screw/nut drivers and 8 pliers
      • Pockets
        • 4 padded for meters
        • 1 padded for small tablet
        • 8 for shifters
        • 2 for hex key sets
        • 1 front flap misc.
        • 2 side misc.
        • 1 zipped inside
        • 1 zipped bottom bulk
      • Accessories
        • 1 drill/driver cinch strap
        • 1 water bottle strap
        • 1 tape loop strap
      • Dimensions: 19”h x 14”w x 6”d


      WARRANTY

      1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)

      AUTHORISED RETAILER

      Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.

      SCROLL UP AND "ADD TO CART" TODAY.

      REVIEWS

      RELATED PRODUCTS



      BACK TO TOP
