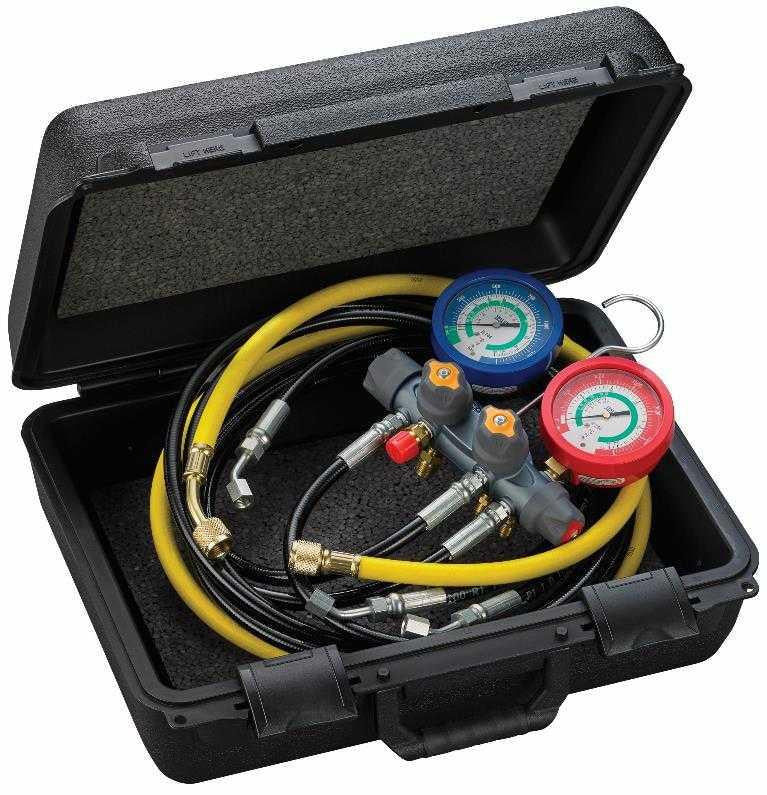

Yellow Jacket CO2 Transcritical Test and Charging Manifold R744 45925

45925 Yellow Jacket CO2 Transcritical Test and Charging Manifold R744

DOWNLOAD BROCHURE

• Large, easy-to-read 3-1/2” (90 mm) liquid-filled red and blue
• 1% accuracy (Class 1) gauges; psi/bar
• Proven double o-ring piston for reliability and long service life
• Fourth hose to enable connection to hi/lo sides, refrigerant tank, and vacuum pump for diagnostics, evacuation and charging without switching hoses
• Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extends the life of the seats
• 3/8” vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings on unit are 1/4”)
• Dedicated transcritical CO2 hose 72” (182 cm) in length
• Durable carrying case
