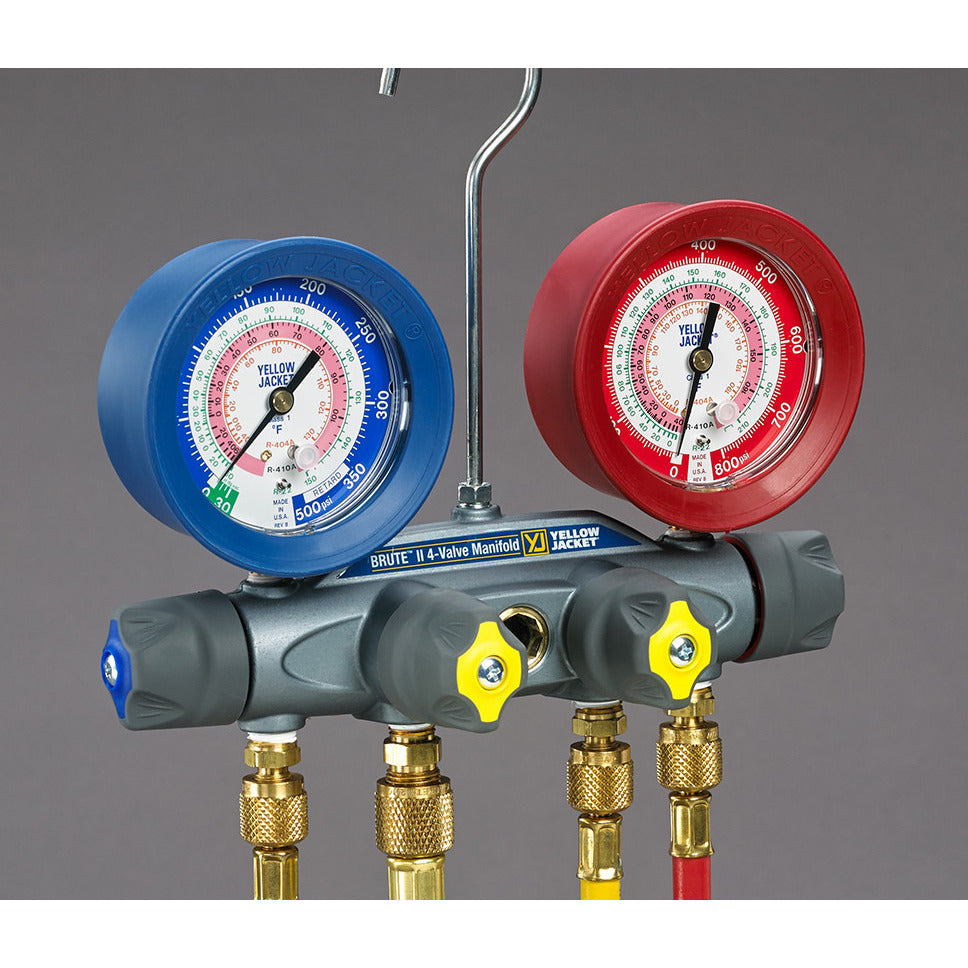

Yellow Jacket BRUTE MANIFOLD 22/134/404A 46145
OVERVIEW
BRUTE II™ 4-Valve Test and Charging Manifold provides the flow that’s proven faster than any conventional manifold. The aluminum alloy body is forged for strength and reliability with 3/8″ bores through the body to speed the job.
FEATURES
- Fourth hose enables connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
- Available in 1/4″ hi-/lo-sides with 3/8″ vacuum port for regular jobs, or 3/8″ hi-/lo-sides with 1/2″ vacuum port for larger systems
- Front access for easy field recalibration
- Double “O” ring piston for reliability and long service life
- Exclusive 100-mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seat
- Contoured easy-grip handles for positive control; color-coded for ready identification
- Sight glass to easily view refrigerant movement and condition during charging and recovery
- Heavy duty hook won’t pull out
- Also available with 3-1/2″ (90 mm) red and blue liquid-filled gauges
- Manifold and hose holder fittings 1/4″-3/8″-1/4″-1/4″ unless otherwise identified
- Made in the USA
All have 1/4″ hi-/lo-sides with 3/8″ vacuum port unless otherwise specified; does not apply to °C manifolds.
