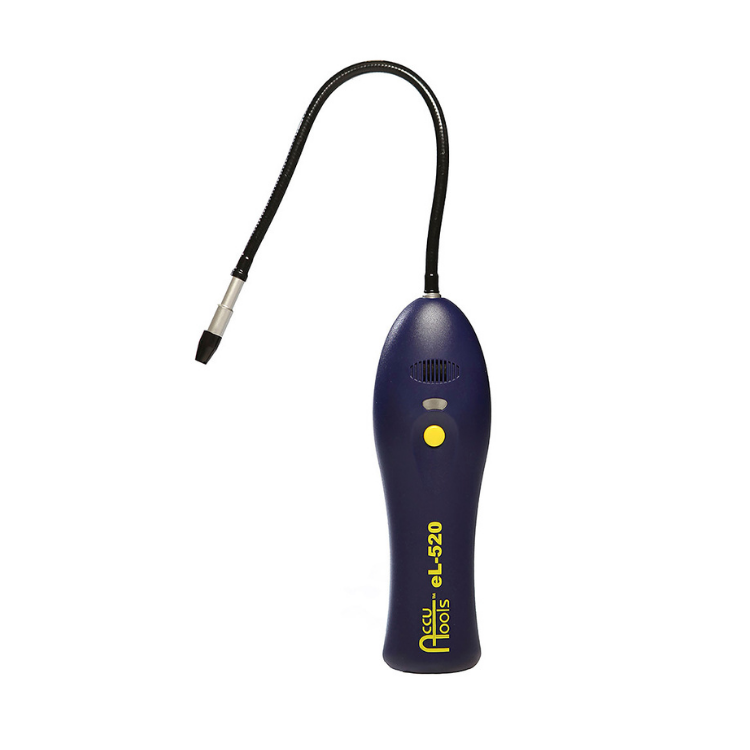

AccuTools eL-520 Refrigerant Leak Detector - A10211
AccuTools eL-520 Refrigerant Leak Detector - A10211
  • SKU: A10211

AccuTools eL-520 Refrigerant Leak Detector - A10211

$461.99
GST included.
DESCRIPTION

DOWNLOAD MANUAL

The AccuTools® eL-520 Refrigerant Gas Leak Detector is the most technologically advanced of its kind. The eL-520’s low power requirements, small size and high sensitivity combine to create a tool that is easy to handle and ultra effective at locating even the most difficult-to-find leaks.

Ideal for all commercial, residential, industrial and automotive air conditioning and refrigeration systems, the eL-520 quickly and accurately isolate leaks. Fully SAE J1627 compliant, the eL-520 detects all HFC, CFC and HCFC refrigerants including R134A, R12, R22 as well as blends such as R404A, R407C, R408A, R 409A, R 410A, and others.

Using state-of-the-art microprocessor-controlled technologies, the eL-520 is fully automatic and requires very little power to operate thus increasing the battery life. A spare sensor housed in the battery compartment also ensures no downtime when sensors are damaged or need replacing.

The eL-520 should not be used on systems that contain flammable refrigerants such as Propane, Isobutane, etc.

AccuTools® Gas Leak Detectors are sensitive, effective, and easy-to-use battery-operated instruments. From traditional refrigerants to CO2 and combustible gases, AccuTools® leak detectors are a must for every technician’s toolbox.

All AccuTools® leak detectors are microprocessor controlled and feature simple one-button operation. Despite their outward simplicity, their innovative technology makes the job easier, faster, and more accurate.

FEATURES

  • Lightweight, ergonomic design
  • Simple, one-button operation
  • Two sensitivity modes, enabling quick and easy location of large and small leaks
  • Both visual and audible leak detection signal
  • Long Battery Life – 2 AA batteries provide 40 hours of operation
  • Low battery indicator
  • Automatic power-off to conserve battery life
  • Extra sensor stored inside the battery compartment
  • Sturdy blow-moulded carrying case


WHAT'S INCLUDED

  • eL-520 Refrigerant Leak Detector with sensor
  • Spare Sensor
  • Batteries (2 AA Alkaline)
  • Sturdy Blow Molded Carrying Case
  • Instruction Manual



SPECIFICATIONS

Sensitivity < 3g/year (0.1 oz/yr)
Sensor Lifetime approx. 30 hours
Response Time instantaneous
Warm-up Time < 2 sec
Reset Time instantaneous
Probe Length 12” (30 cm)
Operating Temperature 32 – 122°F (0 – 50°C)
Batteries 2 x 1.5V ‘AA’ Alkaline Batteries (3 VDC)
Battery Life 40 Hours
Calibration Automatic
Dimensions 7.25” x 2.25” x 1.5” (19 cm x 5.7 cm x 3.8 cm)
Weight 7 oz. (190 grams)
Warranty 12 months (excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
