DESCRIPTION

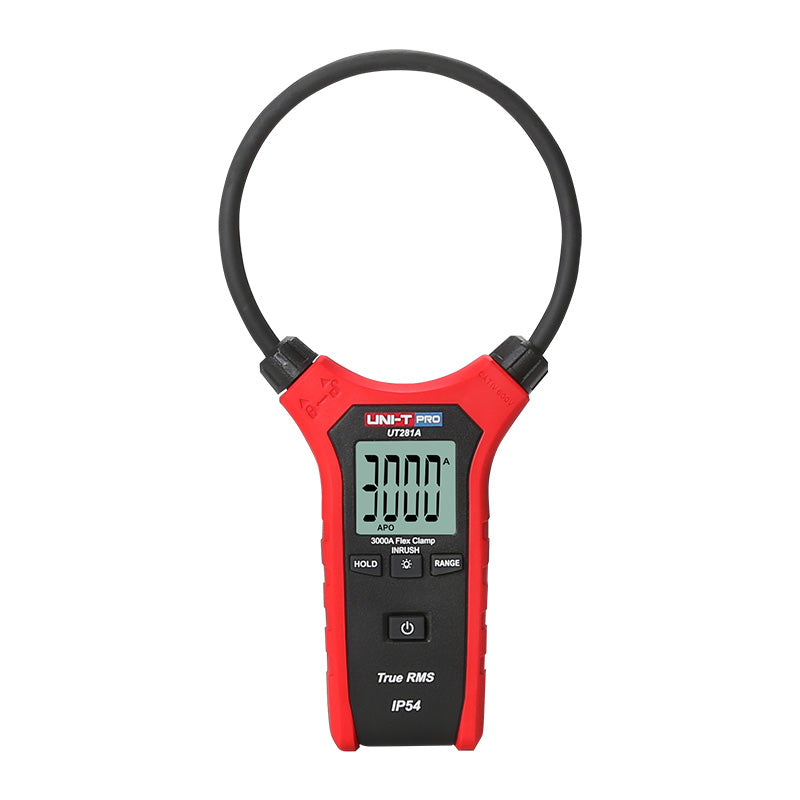

Uni-T True RMS Flex Clamp Meter

The UT281 series can measure large currents in various harsh and hard-to-reach environments. They are designed with Rogowski flex coil and can test up to 3000A AC current.

The UT281A is from UNI-T’s Pro Line series, which meets IP54 and 2m drop proof requirements. Due to the ease in operation, accurate readings, stable performance and reliable quality, these flex clamps are ideal tools for electricians.


FEATURES

  • True RMS
  • IP54, 2m drop proof
  • Coil diameter: 0.75cm, bending length: 45.7cm
  • Large LCD display for clear reading
  • Long press INRUSH key for 2s to measure inrush current
  • Data hold, buzzer, backlight, auto power off
  • Refresh rate: 3 times/s
  • Function selection


WHAT'S INCLUDED?

  • UT281A True RMS Flex Clamp Meter
  • Batteries
  • Operating Manual
  • Box


SPECIFICATIONS

UT281A Range Accuracy
AC current (A) 30A/300A/3000A ±(3%+5)


General Technical Data
Frequency response 45Hz~500Hz (sine wave)
Inrush current 0.5A~3000A (for reference)
Range selection Manual
Flex coil size 10'' (25.4cm) radius: 1.5'' (3.8cm)
Display count 3000
Display interface (LCD) Single
Certificates CE, UKCA, cETLus
Category Ratings CAT IV 600V
IP rating IP54
Power 1.5V battery (R03) x 3
Display 32 x 34mm (1.8 inches)
Dimensions 300 x 150 x 55mm
Weight  220g
