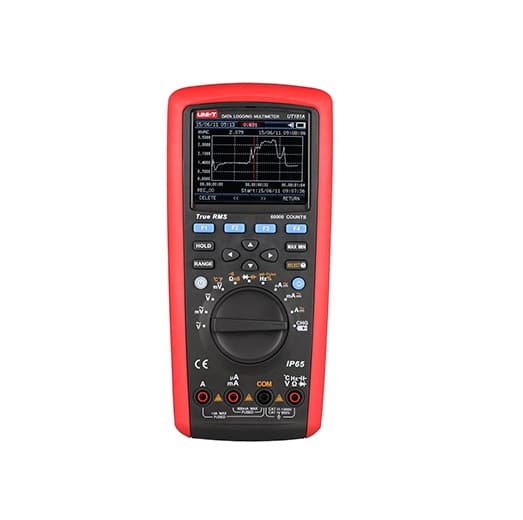

Uni-T True RMS Datalogging Multimeter - UT181A
Uni-T True RMS Datalogging Multimeter - UT181A
Uni-T True RMS Datalogging Multimeter - UT181A
  • SKU: UT181A

Uni-T True RMS Datalogging Multimeter - UT181A

$648.99
GST included.
    DESCRIPTION

    Uni-T True RMS Datalogging Multimeter

    The UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.



    FEATURES

    • Trend capture
    • Data logging: 20000
    • Data comparison
    • 3.5-inch 64k color TFT LCD
    • Dual temperature measurement
    • Low pass filter
    • 2200mAh Li-ion Rechargeable battery
    • Battery indiction/auto power off
    • Real time and date
    • Peak hold
    • Bluetooth/APP
    • USB interface cable /PC software CD
    • IP65



    WHAT'S INCLUDED

    • UT17B-PRO Digital Multimeter
    • Test Leads
    • Batteries
    • Temperature Adaptor Socket
    • Point Contact Temperature Probes
    • Power Adaptor Socket
    • Power Adaptor
    • USB Interface Cable
    • Operating Manual
    • Box



    SPECIFICATIONS

    UT181A Range Accuracy
    DC voltage (V) 1000V ±(0.025%+5)
    AC voltage (V) 1000V ±(0.3%+30)
    DC current (A) 10A ±(0.08%+10)
    AC current (A) 10A ±(0.6%+20)
    Resistance (Ω) 60MΩ ±(0.05%+2)
    Admittance (nS) 60nS ±(2%+10)
    Capacitance (F) 60mF ±(2%+5)
    Frequency (Hz) 10Hz~60MHz ±(0.01%+5)
    Temperature (°C)  -40°C~1000°C ±(1%+30)
    Temperature (°F)  -40°F~1832°F ±(1.5%+50)


    General Technical Data
    Display count 6000
    Category Ratings CAT III 1000V, CAT IV 600V, IP65
    Certificates CE, UKCA, cETLus
    Optional accessories Bluetooth adaptor (UT-D07B)
    Power Li-ion battery: 7.4V 2200mAh
    Display 3.5-inch 64k color TFT LCD (320 x 240)
    Dimensions 225 x 103 x 59mm
    Weight 638.6g
