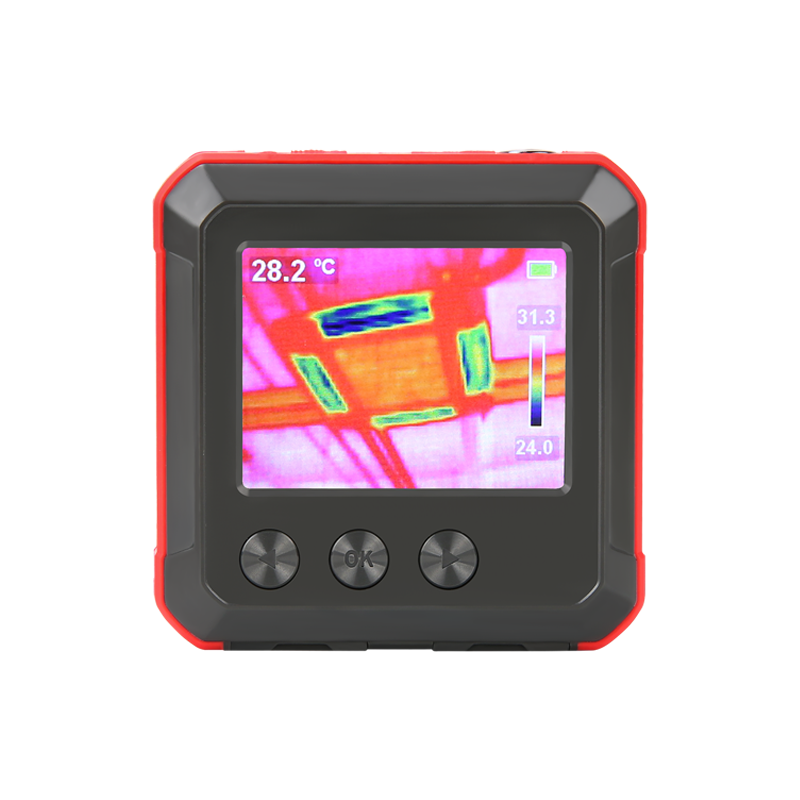

Uni-T Pocket Sized Thermal Camera - UTi80P
Uni-T Pocket Sized Thermal Camera - UTi80P
Uni-T Pocket Sized Thermal Camera - UTi80P
Uni-T Pocket Sized Thermal Camera - UTi80P
  • SKU: UTI80P

Uni-T Pocket Sized Thermal Camera - UTi80P

$680.89
GST included.
DESCRIPTION

Uni-T Thermal Camera

The UTi80P thermal camera is mini and portable in size, users can put it into the pocket to go anywhere to identify and troubleshoot problems, and it can automatically track the objective’s temperature from -10°C to 400°C, which can be widely used in many applications.



FEATURES

  • Mini and portable
  • 4” TFT display screen (320×240 Pixels)
  • IR resolution: 80×60
  • Temperature measurement range: -10°C to 400°C / 14°F to 752°F
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Color palettes: 3(Iron, Rainbow, Grey)
  • PC software analysis
  • Rechargeable Li-ion battery
  • 1/4” tripod mounting hole
  • 1m drop proof



APPLICATION

Motor inspection: The thermal camera UTi80P can detect imbalance loading, overloading, wiring error and parts malfunction etc. Heat insulation protection is the key action for avoiding fire risk, engineer can also use the thermal imager to check the protection situation regularly to ensure safety production.

HVAC inspection: Using UTi80P can check the temperature change of pipeline without any body touch, detect the potential problems such as pipeline thinning, corrosion, and leakage. Avoid the risk to humans and the environment.



WHAT'S INCLUDED?

  • UTi80P Pocket Sized Thermal Camera
  • 16GB Micro SD card
  • Micro USB cable
  • Carrying bag
  • Operating Manual


SPECIFICATIONS

IR resolution (Pixels) 80×60
Display 2.4” TFT LCD (320×240)
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤150mK (0.15°C)
Spatial resolution(IFOV) 11mrad
Frame rate ≤9Hz
Focus Focus Free
Temperature measurement range -10°C~400°C
Accuracy ±2°C or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)


General Technical Data
Certificates CE,RoHS
Battery
Fixed Li-ion battery (3.7V 1300mAh)
Battery operation time  ≥3.5 hours
USB Micro USB
Drop proof 1m
Storage 16GB Micro SD card
Image/Video storage format BMP
Dimensions 76mm×76mm×24mm
Weight 125g
