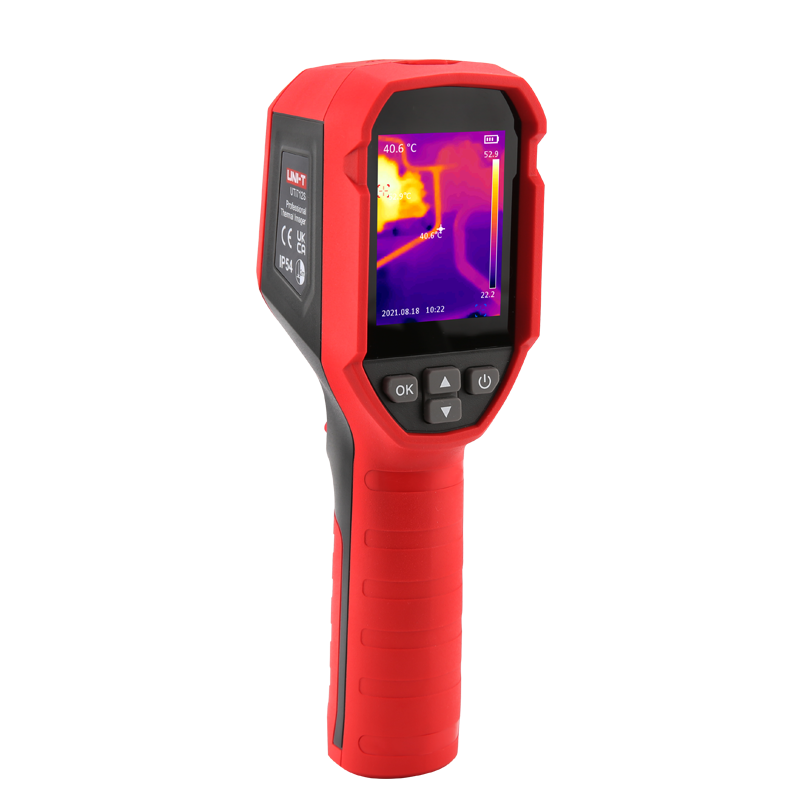

Uni-T Value Thermal Camera
The UTi712S is a cost-effective and highly recommendable thermal camera with a quality build. Some special features include temperature compensation (allows more accurate readings under different temperature environments), laser pointer, and longer battery operation time (more than 9 hours).
This rugged thermal camera has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.
PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
| IR resolution (Pixels) | 120×90 |
| Display | 2.4” TFT LCD (320×240) |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Focus | Focus Free |
| Temperature measurement range | -20°C~400°C |
| Accuracy | ±2°C or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| General Technical Data | |
| Certificates | CE,UKCA,FCC,RoHS |
| Color palettes | 6 (White hot, Black hot, Ironbow, Rainbow HC, Rainbow, Lava) |
| Image modes | Thermal |
| Hi/Lo temperature alarm | Icon, LED flashlight, Buzzer |
| Battery |
Fixed Li-ion battery (3.7V 2600mAh) |
| Battery operation time | ≥8 hours |
| USB | Type-C |
| IP rating | IP54 |
| Drop-proof | 2m |
| Storage | 16GB Micro SD card |
| Image/Video storage format | BMP |
| Dimensions | 197mm×72mm×60mm |
| Weight | 310g |
