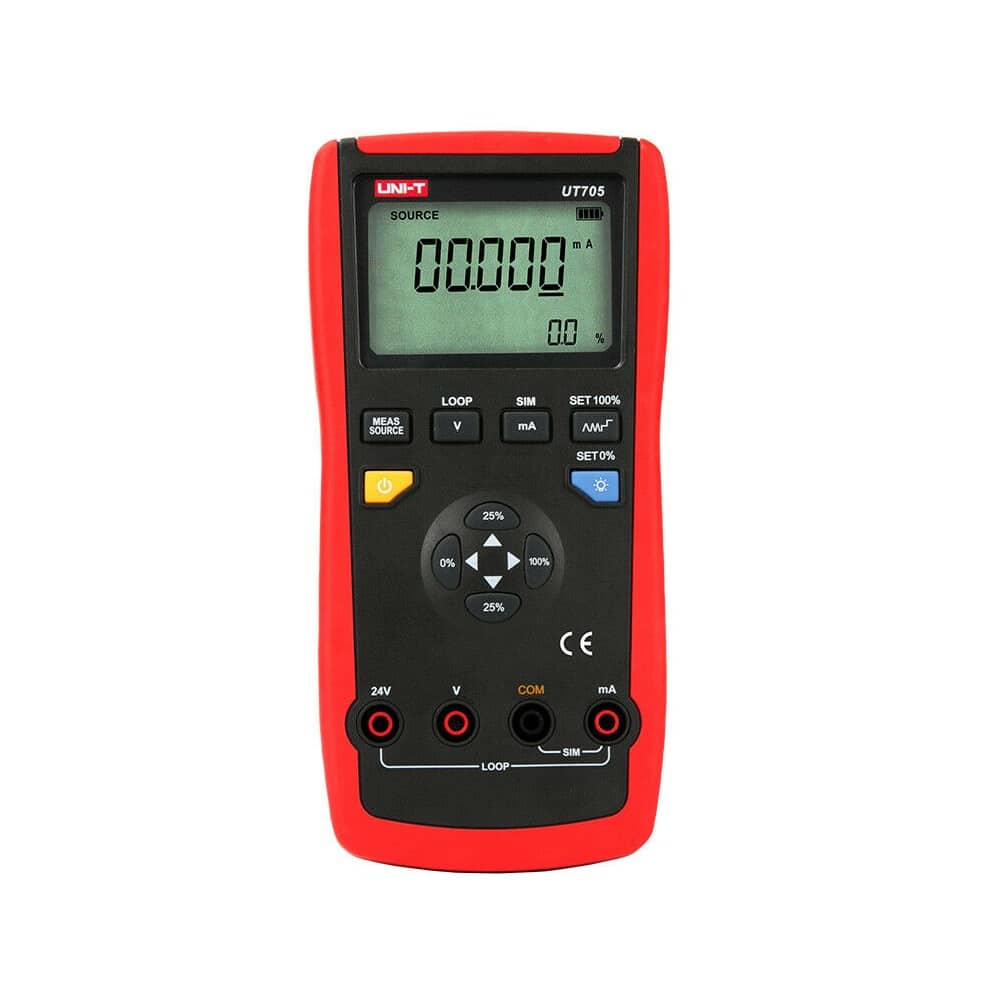

Uni-T Portable Current Loop Calibrator UT705
Uni-T Portable Current Loop Calibrator UT705
Uni-T Portable Current Loop Calibrator UT705
Uni-T Portable Current Loop Calibrator with Test Leads
  • SKU: UT705

Uni-T Portable Current Loop Calibrator UT705

$667.69
GST included.
    DESCRIPTION

    Uni-T UT705 Portable Current Loop Calibrator

    DOWNLOAD MANUAL

    The UT705 features precise DC current and transmitter analogue current outputs and offers DC voltage/current and loop current measurement, button settings, selectable steps, and ramp outputs for enhanced efficiency and accuracy.

    The UT705 is a high-performance device for process loop calibration and maintenance.

    FEATURES

    • Measures: DC voltage, DC current, 4-20mA loop current
    • Output functions: DC current, analogue transmitter, 24V loop
    • Up to 0.02% output and measurement accuracy
    • Compact and ergonomic design, easy to carry
    • Solid and reliable, suitable for on-site use
    • Convenient battery replacement
    • Adjustable backlight display brightness
    • Save frequently-used settings for future use
    • Auto stepping and ramping output for fast linearity detection
    • Conduct mA measurement while providing loop power to the transmitter

    WHAT'S INCLUDED

    • UT705 Portable Current Loop Calibrator
    • Test Leads
    • Battery
    • 12-month warranty

    SPECIFICATIONS

    Loop power function Voltage: 24V
    Accuracy: 10%
    Ramp functions Source functions: Voltage, resistance, temperature
    Ramps: Slow ramp, fast ramp, 25% step-ramp
    Step functions Source functions: Voltage, resistance, temperature
    Steps: 25% of range, 100% of range



    Measure accuracy
    DC voltage (V) 30.000V ±(0.02+2)
    DC current (A) 24.000mA ±(0.02+2)
    Loop current 24.000mA ±(0.02+2)
    Source accuracy
    DC current (source) 24.000mA ±(0.02+2)
    DC current (simulate) 24.000mA ±(0.02+2)



    General Technical Data
    Power
    9V battery (6F22)
    Product colour Red and grey
    Display 63mm x 40mm
    Weight 410g
    Dimension 96mm x 193mm x 47mm
    Standard Accessories Test Leads, Battery
