  • SKU: UT505B

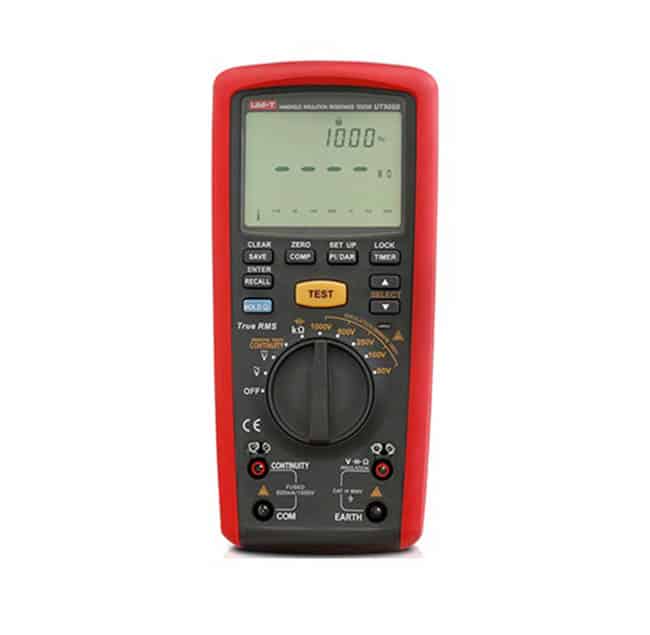

Uni-T Handheld Insulation Resistance Tester UT505B

$602.79
GST included.
    DESCRIPTION

    UT505B Uni-T Handheld Insulation Resistance Tester with Multimeter Features

    DOWNLOAD MANUAL

    DOWNLOAD BROCHURE

    UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulations resistance, PI and DAR to determine the insulation status.

    UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulated materials. They are highly accurate and provide stable readings. It is a popular and well-liked model by many electrical engineers.

    FEATURES

    • True RMS
    • Certificates CE, UKCA
    • DAR/PI measurements for auto resistivity calculation
    • Auto fuse check
    • Continuity Buzzer
    • Comparison measurement
    • High voltage output alarm
    • Auto discharge
    • Step voltage - 10% steps at 50%~120% of range
    • LCD backlight
    • Data hold
    • Auto power off/Auto range
    • Low battery indication
    • 99-group data storage

    WHAT'S INCLUDED

    • UT505B Handheld Insulation Resistance Tester
    • Battery
    • Test leads
    • Carrying bag
    • Alligator clips
    • Test probes
    • Operational Manual
    • 12-month warranty



    SPECIFICATIONS


    Range UT505B
    Insulation resistance (Ω)  50V 50V/100V/250V/500V/1000V 0%~20%
    0.01MΩ~50MΩ ±(3%+3)
    50MΩ~1GΩ ±(3%+3)
    100V 1GΩ~10GΩ ±(10%+3)
    0.01MΩ~100MΩ ±(3%+3)
    100MΩ~1GΩ ±(3%+3)
    250V 1GΩ~20GΩ ±(10%+3)
    0.01MΩ~200MΩ ±(1.5%+5)
    200MΩ~1GΩ ±(1.5%+5)
    500V 1GΩ~50GΩ ±(10%+3)
    0.01MΩ~500MΩ ±(1.5%+5)
    500MΩ~1GΩ ±(1.5%+5)
    1000V 1GΩ~100GΩ ±(10%+3)
    0.1MΩ~2000MΩ ±(1.5%+5)
    2GΩ~9.9GΩ ±(5%+3)
    10GΩ~20GΩ ±(7%+3)
    20GΩ~200GΩ ±(20%+3)
    Load current 50V (R=50kΩ) 1mA 0%~10%
    100V (R=100kΩ) 1mA 0%~10%
    250V (R=250kΩ) 1mA 0%~10%
    500V (R=500kΩ) 1mA 0%~10%
    1000V (R=1MΩ) 1mA 0%~10%
    Leakage current (A) 10~2000μA ±(10%+3)
    Low resistance (Ω) 0.01Ω~100Ω (about 5V/>200mA/20mA optional) ±(1.5%+3)
    Short Circuit Current
    <2mA
    General resistance (Ω) 0.01kΩ~10MΩ ±(3%+3)
    DC voltage (V) 0V~600V ±(2%+3)
    AC voltage (V) 0V~600V ±(1.5%+5)
    Frequency (Hz) 45~1kHz ±(0.1%+3)
    Capacitance (F) 100pF~500μF ±(5%+5)


    General Characteristics
    Power 1.5V battery (AA) x 6
    Display 78mm x 59mm
    Product colour Red and grey
    Product net weight 630g
    Product size 103mm x 255mm x 59mm
