DESCRIPTION

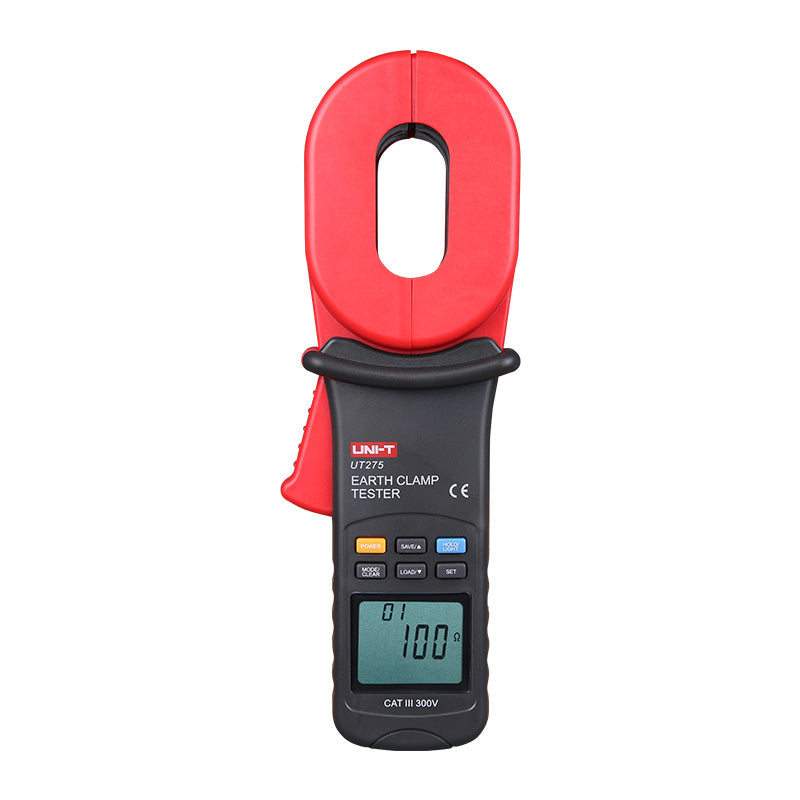

Uni-T Clamp Earth Ground Tester

The UT275 can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need for auxiliary electrodes. It can measure resistance from 0.01Ω with a resolution of 0.001Ω. UT275 can also measure leakage current up to 30A.

These clamps’ double insulation design makes them durable tools for outdoor work and effective in blocking interference signals from the environment.



FEATURES

  • Resistance limit alarm
  • Auto range
  • Data hold
  • Data recall
  • LCD backlight
  • Auto calibration
  • Auto power off
  • Low battery indication



APPLICATIONS

  • Electric power, telecommunication, meteorology, oil field, building and industry



WHAT'S INCLUDED?

  • UT275 Clamp Earth Ground Tester
  • Battery
  • Operating Manual


SPECIFICATIONS

UT275 Range Accuracy
Earth Ground Resistance (Ω) 0.01~0.099Ω ±(1%+0.01)
0.1~0.99Ω ±(1%+0.01)
1~49.9Ω ±(1.5%+0.1)
50~99.5Ω ±(2%+0.5)
100~199Ω ±(3%+1)
200~395Ω ±(10%+5)
400~590Ω ±(20%+10)
600~800Ω
600~1000Ω ±(25%+20)
800~1200Ω
Leakage current (A) 0mA~9mA
10mA~99mA
100mA~299mA
0mA~299mA ±(2.5%+2mA)
0.3A~2.99A ±(2.5%+100mA)
3A~9.9A
10A~20A
3A~30A ±(2.5%+300mA)


General Technical Data
Display count 10000
Jaw opening 28mm
Data storage 30
Display type LCD
Category ratings CAT III 300V
Power 1.5V battery (LR6) x 4
Display 47mm x 28.5mm
Dimensions 293mm x 90mm x 66mm
Weight 1.32kg
