TSI VelociCalc Rotating Vane Anemometer -5725-Anemometer-Kenelec-Cool Tools HVAC-R
  • SKU: TSI5725
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

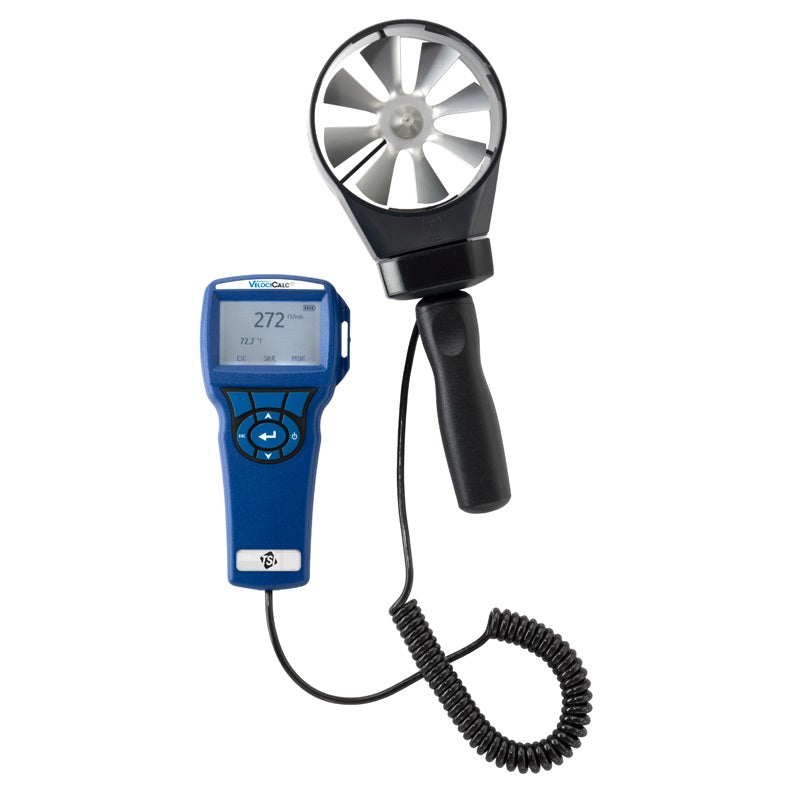

TSI VelociCalc Rotating Vane Anemometer and Data Logger - 5725

$1,550.22
GST included.
DESCRIPTION

DOWNLOAD DATA SHEET

DOWNLOAD TSI HVAC ASSESSMENT HANDBOOK

DOWNLOAD TSI INDOOR AIR QUALITY HANDBOOK

The VelociCalc® Rotating Vane Anemometer 5725 is a high performance, yet simple-to-use, rotating vane anemometer. High accuracy and reliability make the VelociCalc 5725 the professional’s ideal tool for measuring unevenly distributed or fluctuating flows through heating and cooling coils, diffusers, grilles, and filters.

It accurately measures air velocity and temperature, calculates flow rate, performs averaging, and can determine minimum and maximum readings.

Using sweep mode you can quickly provide one averaged reading of velocity or volume over a large measurement area. The large vane head automatically averages velocity and volume readings.

The VelociCalc 5725 includes variable time constant, sampling and statistics functions and data logging capability.

It measures velocity, temperature / calculates flow / data logging.

Articulating, telescopic extension sold separately.



FEATURES AND CAPABILITIES

  • Reversible 4-inch (100 mm) head to read supply and exhaust flows
  • Calculates volumetric flow rate when user inputs duct shape and size, or area
  • Sampling function records multiple point measurements
  • Automatic averaging of air velocity
  • Simultaneously displays velocity and temperature
  • Sweep mode for one overall measurement
  • Optional 36-inch telescopic probe available
  • Compatible with optional Aircone flow hoods
  • Logs 12,700+ samples with a time and date stamp
  • Recall, review, store data



APPLICATIONS

  • Heating and cooling coil analysis
  • Diffuser and grille measurements
  • Fume hood face velocity tests
  • Indoor air quality tests
  • Filter face velocity measurements



WHAT'S INCLUDED?

  • Instrument with 100-mm vane
  • Carrying case
  • Alkaline batteries
  • Operation and service manual
  • USB cable with LogDat2™ Downloading Software
  • Calibration certificate



SPECIFICATIONS

TSI 5725
Velocity
Range  50 to 6,000 ft/min (0.25 to 30 m/s)
Accuracy ±1.0% of reading ±4 ft/min (±0.02 m/s)
Volumetric Flow Rate
Range  Actual range is a function of velocity  and duct area
Duct Size 0 to 500 ft2 (0 to 46.45 m2)
Temperature
Range  40 to 113°F (5 to 45°C)
Accuracy ±2.0°F (±1.0°C)
Resolution  0.1°F (0.1°C)
Data Logging
Storage Range 12,700+ samples and 100 test IDs
Logging Interval 1 second to 1 hour
Time Constant User selectable


General Technical Data
Operating Temperature (Electronics)  40 to 113°F (5 to 45°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Power Requirements Four AA-size batteries or optional AC adapter
Meter Dimensions 3.3 in. x 7.0 in. x 1.8 in.  (8.4 cm x 17.8 cm x 4.4 cm)
Meter Weight 0.6 lbs (0.27 kg)



WARRANTY

1 Year Manufacturer Warranty
