TSI VelociCalc Multi-Function Ventilation Meter and Data Logger - 9565
  • SKU: TSI9565-P-NB
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

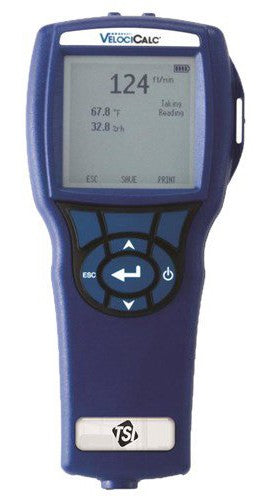

TSI VelociCalc Multi-Function Ventilation Meter and Data Logger - 9565

$2,583.71
GST included.
DESCRIPTION

DOWNLOAD DATA SHEET

DOWNLOAD TSI HVAC ASSESSMENT HANDBOOK

9565-P-NB Multi-function ventilation meter, no plug-in probes, with differential pressure sensor

The VelociCalc® Multi-Function Ventilation Meter 9565 features a menu-driven user interface for easy operation in your local language. On-screen prompts and step-by-step instructions guide the user through instrument setup, operation and field calibration.

The 9565 also features an ergonomic, over-molded case design with probe holder and a keypad lockout to prevent tampering during unattended use.

The model 9565-P-NB measures differential pressure, barometric pressure and has inputs for two K alloy thermocouples.

This model does not have Bluetooth capabilities.


FEATURES AND CAPABILITIES

  • Best-in-class air velocity accuracy
  • Optional “smart” plug-in probes, including VOC, CO2, and rotating vane probes
  • Accommodates up to two K-alloy thermocouples
  • Large graphic display
    • Displays up to five measurements simultaneously
    • On-screen messages and instructions
    • Program for local language
  • Intuitive menu structure allows for ease of use and setup
  • Multiple data logging formats
  • Includes TrakPro™ and LogDat2™ downloading software with USB cable


APPLICATIONS

  • HVAC testing and balancing
  • Cleanroom testing
  • Biological safety cabinet and laboratory fume hood testing
  • HVAC commissioning and troubleshooting
  • IAQ investigations
  • Thermal comfort studies
  • Ventilation evaluations
  • Process air flow testing



WHAT'S INCLUDED?

  • 9565 instrument
  • Static pressure tip
  • Tubing, 8 ft. (2.4 m)
  • USB cable with LogDat2™ and TrakPro™ downloading software
  • Hard carrying case
  • Four alkaline batteries
  • Operation and service manuals
  • Calibration certificate


SPECIFICATIONS

TSI  9565-P-NB
Velocity (Pitot or Airflow probe for Models 9565-NB,  9565-A-NB, 9565-P-NB)
Range 250 to 15,500 ft/min (1.27 to 78.7 m/s)
Accuracy ±1.5% at 2,000 ft/min (10.16 m/s)
Resolution 1 ft/min (0.01 m/s)
Static/Differential Pressure (Models 9565-NB,  9565-A-NB, 9565-P-NB)
Range -15 to +15 in. H2 O (-28.0 to +28.0 mm Hg, -3,735 to +3,735 Pa)
Accuracy ±1% of reading ±0.005 in. H2 O  (±0.01 mm Hg, ±1 Pa)
Resolution 0.001 in. H2 O (0.1 Pa, 0.01 mm Hg)
Data Logging
Storage 26,500+ samples and 100 test IDs
Logging Interval 1 second to 1 hour
Time Constant User selectable


General Technical Data
Operating Temperature (Electronics)  40 to 113°F (5 to 45°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Power Requirements Four AA-size batteries or AC adapter
Meter Dimensions 3.8 in. x 8.3 in. x 2.1 in. (9.7 cm x 21.1 cm x 5.3 cm)
Meter Weight 0.8 lbs. (0.36 kg)

WARRANTY

1 Year Manufacturer Warranty
