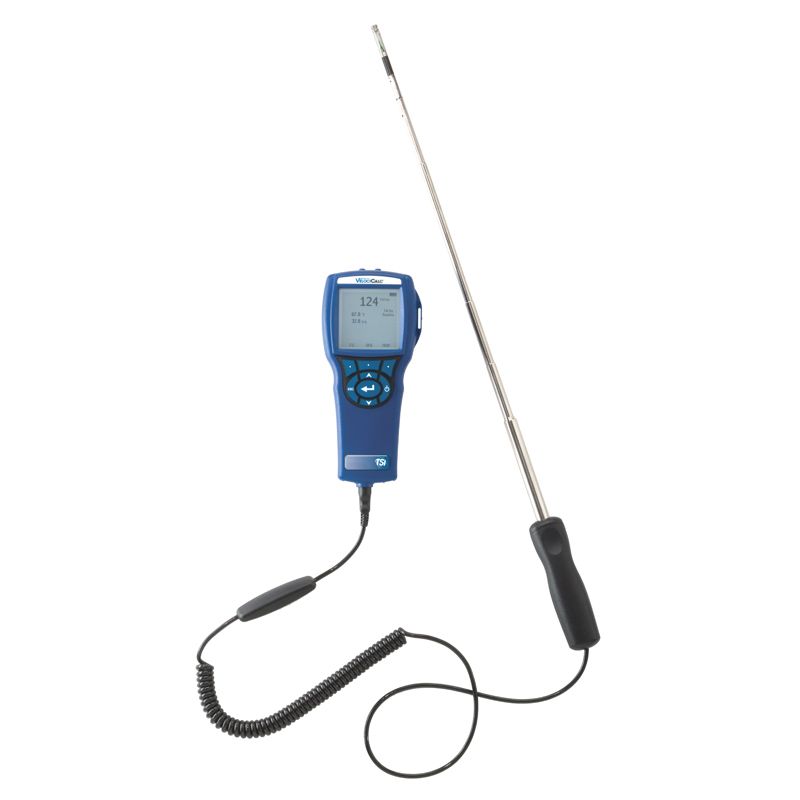

TSI VelociCalc Multi-Function Ventilation Meter and Data Logger with Straight Probe - 9565

$4,908.24

Tax included. Shipping calculated at checkout.

Shipping Ask about this product

ADD TO WISHLIST

Vendor: TSI
Product Type: Anemometer
Barcode:

DESCRIPTION

Contact Us Now For Estimated Delivery Time - This item is not always in stock

Cooltools HVAC-R offers a FLAT RATE Australia Wide delivery for orders up to 5KG. Get in touch for a custom shipping quote.

DOWNLOAD DATA SHEET

DOWNLOAD TSI HVAC ASSESSMENT HANDBOOK

DOWNLOAD TSI INDOOR AIR QUALITY HANDBOOK

The VelociCalc® Multi-Function Ventilation Meter 9565 features a menu-driven user interface for easy operation in your local language. On-screen prompts and step-by-step instructions guide the user through instrument setup, operation and field calibration.

The 9565 also features an ergonomic, over-molded case design with probe holder and a keypad lockout to prevent tampering during unattended use. The 9565 model includes the Straight Air Velocity Probe 964 and is designed to work with a wide range of plug-in probes.

It measures velocity, temperature, humidity, differential pressure, barometric pressure and has inputs for two K alloy thermocouples.

Includes a straight, telescopic probe and data logging.

This model does not have Bluetooth® capabilities.

FEATURES AND CAPABILITIES

Straight Air Velocity Probe 964 measure air velocity, temperature and relative humidity
Includes differential pressure sensor
Best-in-class air velocity accuracy
Optional “smart” plug-in probes, including VOC, CO2, and rotating vane probes
Accommodates up to two K-alloy thermocouples
Large graphic display

Displays up to five measurements simultaneously
On-screen messages and instructions
Program for local language

Compatible with all pitot tubes on the market
Intuitive menu structure allows for ease of use and setup
Multiple data logging formats
Includes TrakPro™ and LogDat2™ downloading software with USB cable

APPLICATION

HVAC testing and balancing
Clean room testing
Biological safety cabinet and laboratory fume hood testing
HVAC commissioning and troubleshooting
IAQ investigations
Thermal comfort studies
Ventilation evaluations
Process air flow testing

WHAT'S INCLUDED

9565 instrument
964 probe
Static pressure probe (1)
Tubing, 8 ft. (2.4 m)
USB cable with LogDat2™ and TrakPro™ downloading software
Hard carrying case
Four alkaline batteries
Operation and service manuals
Calibration certificate

SPECIFICATIONS

TSI 9565-NB
Velocity (Pitot or Airflow probe for Models 9565-NB, 9565-A-NB, 9565-P-NB)
Range	250 to 15,500 ft/min (1.27 to 78.7 m/s)
Accuracy	±1.5% at 2,000 ft/min (10.16 m/s)
Resolution	1 ft/min (0.01 m/s)
Volumetric Flow Rate
Range	Actual range is a function of velocity, pressure, duct size, and K factor
Duct Size	1 to 500 inches in increments of 0.1 in. (2.5 to 1,270 cm in increments of 0.1 cm)
Static/Differential Pressure (Models 9565-NB, 9565-A-NB, 9565-P-NB)
Range	-15 to +15 in. H2 O (-28.0 to +28.0 mm Hg, -3,735 to +3,735 Pa)
Accuracy	±1% of reading ±0.005 in. H2 O (±0.01 mm Hg, ±1 Pa)
Resolution	0.001 in. H2 O (0.1 Pa, 0.01 mm Hg)
Barometric Pressure
Range	20.36 to 36.648 in. Hg (517.15 to 930.87 mm Hg)
Accuracy	±2% of reading
Data Logging
Storage	26,500+ samples and 100 test IDs
Logging Interval	1 second to 1 hour
Time Constant	User selectable
964 Thermoanemometer Straight Probe
Velocity
Range	0 to 50 m/s (0 to 9,999 ft/min)
Accuracy	+/- 3% of reading or +/- 0.015 m/s (+/- 3 ft/min)
Resolution	0.01 m/s (1 ft/min)
Temperature
Range	-10 to 60 C (14 to 140 F)
Accuracy	+/- 0.3 C (+/- 0.5 F)
Resolution	0.1 C (0.1 F)
Humidity
Range	5 to 95% RH
Accuracy	+/- 3% RH
Resolution	0.1% RH

General Technical Data
Operating Temperature (Electronics)	40 to 113°F (5 to 45°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Power Requirements	Four AA-size batteries or AC adapter
Meter Dimensions	3.8 in. x 8.3 in. x 2.1 in. (9.7 cm x 21.1 cm x 5.3 cm)
Meter Weight	0.8 lbs. (0.36 kg)

WARRANTY

1 Year Manufacturer Warranty
