TSI VelociCalc Air Velocity - 9545-Anemometer-Kenelec-Cool Tools HVAC-R
  • SKU: TSI9545
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

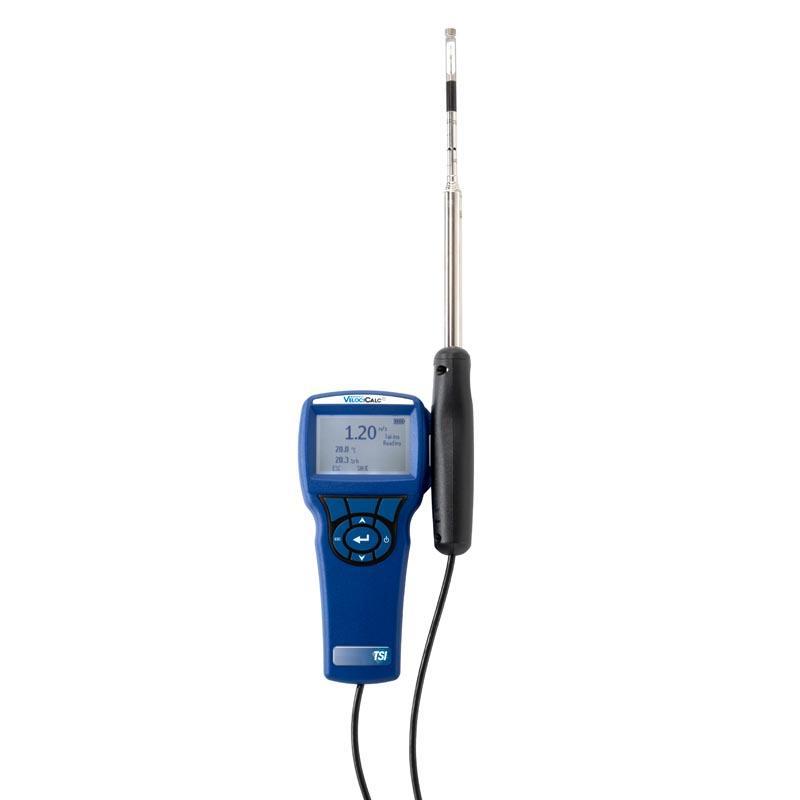

TSI VelociCalc Air Velocity and Data Logger with Straight Probe - 9545

$2,480.36
GST included.
DESCRIPTION

DOWNLOAD DATA SHEET

DOWNLOAD TSI HVAC ASSESSMENT HANDBOOK

The VelociCalc® 9545 model has a telescopic straight probe. Ideal for optimizing HVAC system performance, commissioning, plant maintenance, critical environment certification and duct traverses.

This meter simultaneously measures and data logs several ventilation parameters using a single probe with multiple sensors. It measures velocity, temperature, and relative humidity. Calculates flow, wet bulb and dew point temperature.



FEATURES AND CAPABILITIES

  • Simple to operate
  • Accurate air velocity measurement
  • Calculates volumetric flow, and actual/standard velocity
  • Displays humidity as % relative humidity, wet bulb or dew point temperature
  • Displays up to three measurements simultaneously
  • Data log 12,700+ samples and 100 test IDs
  • Straight probe version (9545)



APPLICATIONS

  • HVAC system performance
  • Commissioning
  • Plant maintenance
  • Critical environment certification
  • Duct traverses



WHAT'S INCLUDED?

  • Instrument with telescopic straight probe
  • Hard carrying case
  • 4 alkaline batteries
  • USB cable and LogDat2™ Downloading Software
  • Operation and service manual
  • Calibration certificate




SPECIFICATIONS

TSI  9545
Velocity
Range 0 to 6,000 ft/min (0 to 30 m/s)
Accuracy ±3% of reading or ±3 ft/min (±0.015 m/s), whichever  is greater
Resolution 1 ft/min (0.01 m/s)
Volumetric Flow Rate
Range   Actual range is a function of  velocity and duct size
Duct Size 1 to 250 inches in increments of 0.1 in.  (1 to 635 cm in increments of 0.1 cm)
Temperature
Range 14 to 140°F (-10 to 60°C)
Accuracy ±0.5°F (±0.3°C)
Resolution 0.1°F (0.1°C)
Relative Humidity
Range 5 to 95% RH
Accuracy ±3% RH
Range 0.1% RH
Data Logging
Storage 12,700+ samples and  100 test IDs
Logging Interval 1 second to 1 hour
Time Constant User selectable



General Technical Data
Operating Temperature (Electronics)  40 to 113°F (5 to 45°C)
Operating Temperature (Probe)  14 to 140°F (-10 to 60°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Power Requirements Four AA-size batteries or AC adapter
Meter Probe Length 40 in. (101.6 cm)
Meter Probe Diameter of Tip 0.28 in. (7.0 mm)
Meter Probe Diameter of Base 0.51 in. (13.0 mm)
Meter Dimensions 3.3 in. x 7.0 in. x 1.8 in.  (8.4 cm x 17.8 cm x 4.4 cm)
Meter Weight 0.6 lbs. (0.27 kg)



WARRANTY

1 Year Manufacturer Warranty
