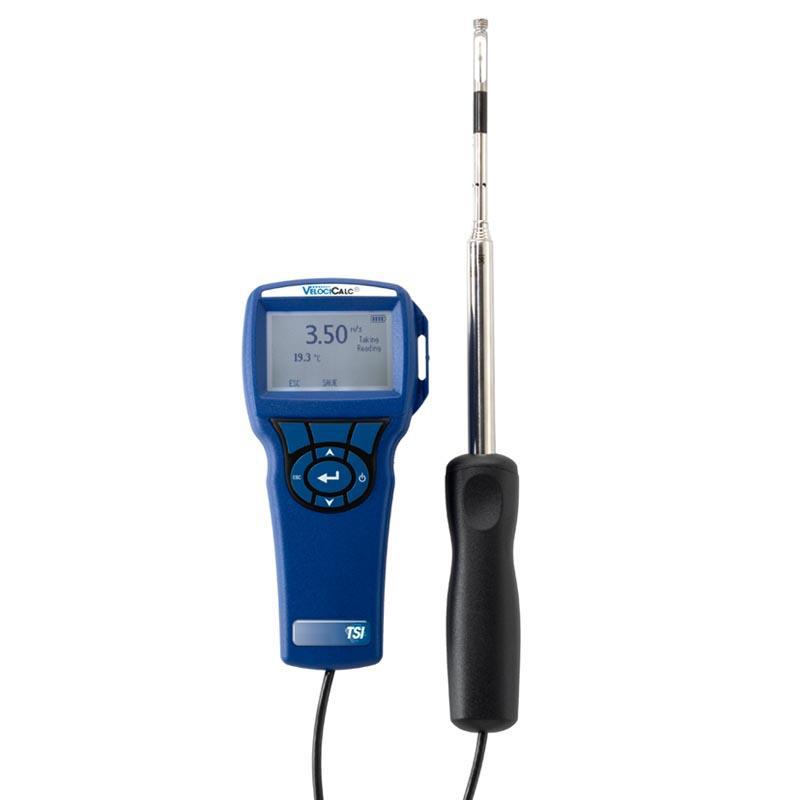

TSI VelociCalc Air Velocity and Data Logger with Straight Probe - 9535

$1,860.27
GST included.
DESCRIPTION

DOWNLOAD DATA SHEET

DOWNLOAD TSI HVAC ASSESSMENT HANDBOOK

The VelociCalc® Air Velocity Meter 9535 is like having multiple meters for the price of one.

This meter simultaneously measures and data log several ventilation parameters using a single probe with multiple sensors. It measures velocity and temperature, and calculates flow.

Comes with a telescopic straight probe and data logging.



FEATURES AND CAPABILITIES

  • Simple to operate
  • Accurate air velocity measurement
    • 0 to 6,000 ft/min (0 to 30 m/s) range
  • Simultaneously measure temperature and velocity
  • Calculates volumetric flow and actual/standard velocity
  • Displays up to three measurements simultaneously
  • Data log 12,700+ samples and 100 test IDs
  • Straight probe version (9535)



APPLICATIONS

  • HVAC system performance
  • Commissioning
  • Plant maintenance
  • Critical environment certification
  • Duct traverses



WHAT'S INCLUDED?

  • Instrument with telescopic straight probe
  • Hard carrying case
  • 4 alkaline batteries
  • USB cable and LogDat2™ Downloading Software
  • Operation and service manual
  • Calibration certificate



SPECIFICATIONS

TSI  9535
Velocity
Range 0 to 6,000 ft/min (0 to 30 m/s)
Accuracy ±3% of reading or ±3 ft/min (±0.015 m/s), whichever  is greater
Resolution 1 ft/min (0.01 m/s)
Volumetric Flow Rate
Range   Actual range is a function of  velocity and duct size
Duct Size 1 to 250 inches in increments of 0.1 in.  (1 to 635 cm in increments of 0.1 cm)
Temperature
Range 0 to 200 °F (-18 to 93°C)
Accuracy ±0.5°F (±0.3°C)
Resolution 0.1°F (0.1°C)
Data Logging
Storage 12,700+ samples and  100 test IDs
Logging Interval 1 second to 1 hour
Time Constant User selectable


General Technical Data
Operating Temperature (Electronics)  40 to 113°F (5 to 45°C)
Operating Temperature (Probe)  0 to 200°F (-18 to 93°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Power Requirements Four AA-size batteries or AC adapter
Meter Probe Length 40 in. (101.6 cm)
Meter Probe Diameter of Tip 0.28 in. (7.0 mm)
Meter Probe Diameter of Base 0.51 in. (13.0 mm)
Meter Dimensions 3.3 in. x 7.0 in. x 1.8 in.  (8.4 cm x 17.8 cm x 4.4 cm)
Meter Weight 0.6 lbs. (0.27 kg)


WARRANTY

1 Year Manufacturer Warranty
