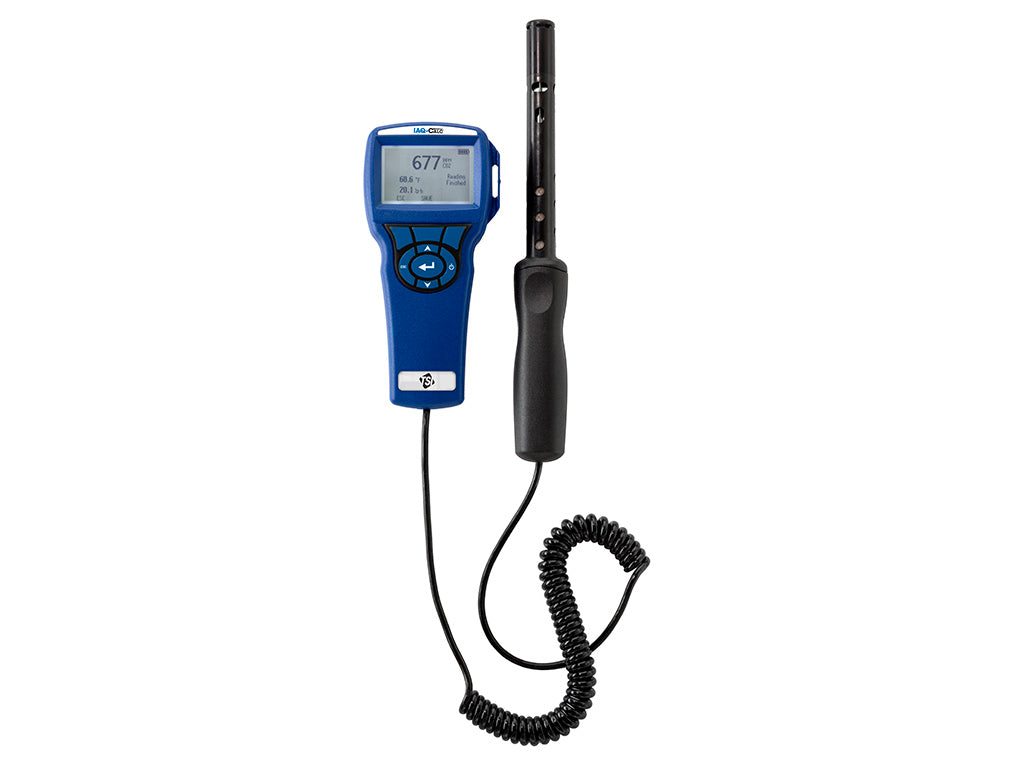

TSI IAQ-Calc Indoor Air Quality Meter and Data Logger - 7525
  • SKU: TSI7525
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

TSI IAQ-Calc Indoor Air Quality Meter and Data Logger - 7525

$3,686.46
GST included.
DESCRIPTION

DOWNLOAD DATA SHEET

DOWNLOAD TSI HVAC ASSESSMENT HANDBOOK

TSI IAQ-Calc™ Indoor Air Quality Meter 7525 is an outstanding instrument for investigating and monitoring indoor air quality or IAQ. Handheld, easy to use allowing you to gather your data and work with ease.

The 7525 IAQ Meter measures and data logs multiple parameters such as carbon dioxide (CO2), temperature, and humidity. It calculates dew point, wet bulb temperature, and percent of outside air.



FEATURES AND CAPABILITIES

  • Low-drift NDIR CO2 sensor for stable, accurate readings
  • Sampling function records multiple point measurements
  • Ergonomic, overmolded case design
  • Temperature and relative humidity measurements help determine thermal comfort
  • Calculates percent outside air from either CO2 or temperature
  • Directly calculates dew point and wet bulb temperatures
  • Shows up to three parameters



Features TSI 7515 TSI 7525 TSI 7545
CO2 Yes Yes Yes
CO     Yes
Temperature   Yes Yes
Humidity   Yes Yes
Percentage outside air   Yes Yes
Dew point   Yes Yes
Wet bulb temperature   Yes Yes
Data logging/downloading   Yes Yes
Statistics Yes Yes Yes
Review data   Yes Yes
Certificate of Calibration Yes Yes Yes

APPLICATIONS

  • Verify building HVAC system performance
  • Examine building IAQ conditions to optimize worker productivity
  • Comply with regulations and guidelines



WHAT'S INCLUDED?

  • Instrument
  • Hard carrying-case
  • (4) AA alkaline batteries
  • Operation and service manual
  • NIST calibration certificate
  • LogDat2™ Downloading Software with USB cable
  • AC adapter



SPECIFICATIONS

TSI 7525
CO2
Sensor Type Dual-wavelength NDIR (non-dispersive infrared)
Range 0 to 5,000 ppm
Accuracy ±3.0% of reading or ±50 ppm, whichever is greater
Resolution 1 ppm
Response Time 20 seconds
Temperature
Sensor Type Thermistor
Range 0 to 60°C (32 to 140°F)
Accuracy ±0.5°C (±1.0°F)
Resolution 0.1°C (0.1°F
Response Time 30 seconds (90% of final value, air velocity at 2 m/s [400 ft/min])
Relative Humidity
Sensor Type Thin-film capacitive
Range 5% to 95% RH
Accuracy ±3.0% RH
Resolution 0.1% RH
Response Time 20 seconds (for 63% of final value)
Percentage Outside Air
Range 0 to 100%
Resolution 0.1%
Data Logging
Ranges Model 7525 logs up to 30,300 data points
with key (3) measured parameters enabled
Time Constant 1 sec, 5 sec, 10 sec, 20 sec, 30 sec (user selectable)
Log Intervals 1 second up to 1 hour (user selectable)



General Technical Data
Operating Temperature 5 to 45°C (40 to 113°F)
Storage Temperature -20 to 60°C (-4 to 140°F )
Probe Length 7.0 cm (2.75 in.)
Probe Diameter 1.9 cm (0.75 in. )
Power Requirements  Four AA-size batteries
Meter Dimensions 8.4 cm x 17.8 cm x 4.4 cm (3.3 in. x 7.0 in. x 1.8 in.)
Weight  0.27 kg (0.6 lbs) (with batteries)

WARRANTY

1 Year Manufacturer Warranty





AUTHORISED RETAILER

Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
