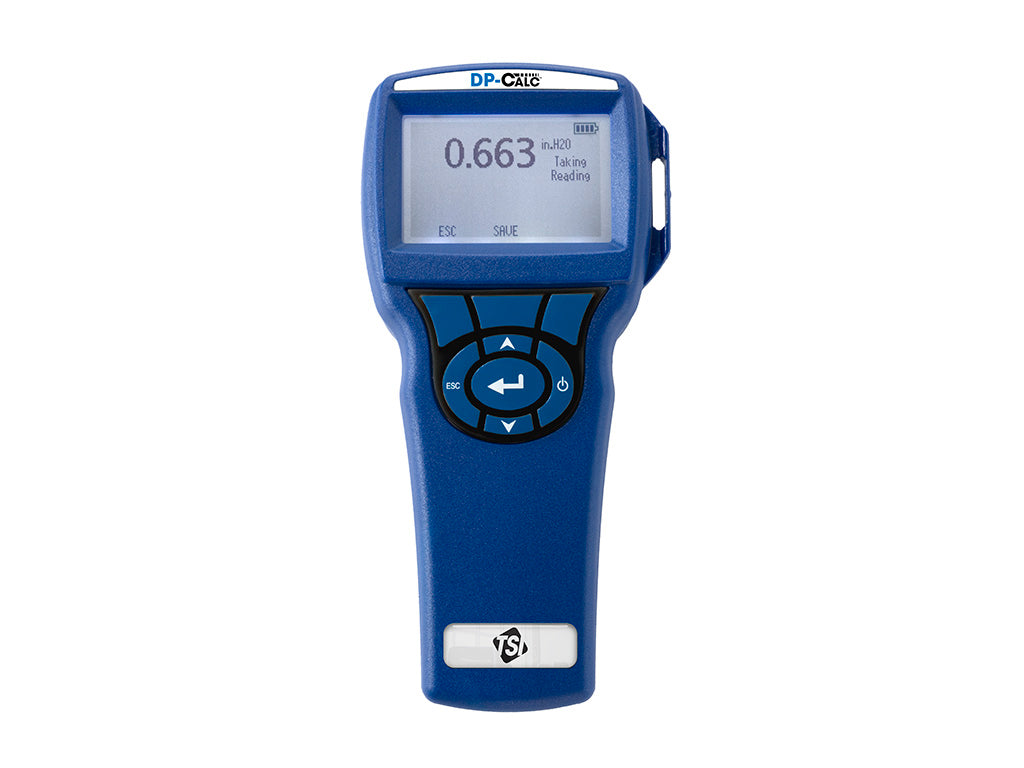

TSI DP-Calc Micromanometer and Data Logger - 5825
  • SKU: TSI5825

TSI DP-Calc Micromanometer and Data Logger - 5825

$1,775.40
GST included.
DESCRIPTION

Contact Us Now For Estimated Delivery Time - This item is not always in stock

DOWNLOAD BROCHURE

DOWNLOAD TSI HVAC ASSESSMENT HANDBOOK

The TSI 5825 DP-Calc™ Micromanometer allows you to easily make HVAC pressure measurements. This robust instruments can be used with pitot probes to measure duct velocity. The high performance 5825 can calculate flow and has data logging capabilities.



FEATURES AND CAPABILITIES

The high performance DP-Calc 5825 can calculate flow and has data logging capabilities.

  • Measure differential and static pressure from -15 to +15 in. H2O (-3735 to +3735 Pa)
  • Calculate and display velocity when using a pitot tube
  • Variable time constant
  • Statistics
  • Data logging with time and date stamp
  • Stores 12,700+ samples and 100 test IDs
  • Programmable K factors



APPLICATIONS

  • HVAC commissioning and troubleshooting
  • Testing and balancing
  • Pitot tube duct traverses
  • Static pressure measurements
  • Pressure drop across filters, coils, fans, and diffusers
  • Environmental air flow testing



WHAT'S INCLUDED?

  • Instrument
  • Hard carrying case
  • 4 alkaline batteries
  • Operation and service manual
  • Calibration certificate(2)
  • 1.2-m rubber tubes
  • Static pressure tip
  • LogDat2™ Downloading software and USB cable

SPECIFICATIONS

TSI 5825
Static/Differential Pressure
Range -15 to +15 in. H2O
( -28.0 to +28.0 mm Hg, -3735 to +3735 Pa)
Accuracy ±1% of reading ±0.005 in. H2O
(±0.01 mm Hg, ±1 Pa)
Resolution 0.001 in. H2O (0.1 Pa, 0.01 mm Hg)
Velocity (Pitot Tube)
Range 250 to 15,500 ft/min (1.27 to 78.7 m/s)
Accuracy ±1.5% at 2,000 ft/min (10.16 m/s)
Resolution 1 ft/min (0.1 m/s)
Volumetric Flow Rate
Range Actual range is a function of velocity, pressure, duct size, and K factor
Duct Size 1 to 500 inches in increments of 0.1 in.
(2.5 to 1270 cm in increments of 0.1 cm)
Data Logging
Storage 12,700+ samples and 100 test IDs
Logging Interval 1 second to 1 hour
Time Constant User selectable



General Technical Data
Operating Temperature  40 to 113°F (5 to 45°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Power Requirements Four AA-size batteries or optional AC adapter
Meter Dimensions 3.3 in. x 7.0 in. x 1.8 in. (8.4 cm x 17.8 cm x 4.4 cm)
Meter Weight 0.6 lbs. (0.27 kg)

WARRANTY

1 Year Manufacturer Warranty
