TSI DP-Calc Micromanometer - 5815
  • SKU: TSI5815

TSI DP-Calc Micromanometer - 5815

$1,162.70
GST included.
DESCRIPTION

Contact Us Now For Estimated Delivery Time - This item is not always in stock

DOWNLOAD BROCHURE

DOWNLOAD TSI HVAC ASSESSMENT HANDBOOK

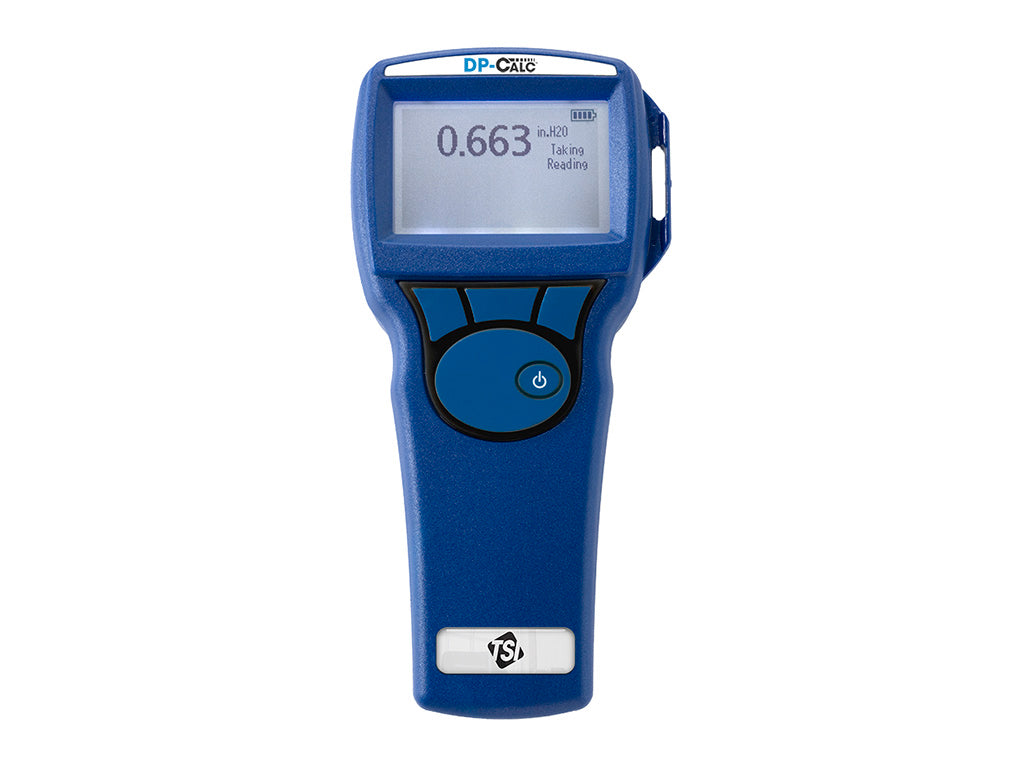

The TSI 5815 DP-CALC Micromanometer is a simple to operate, handheld digital micromanometer for fast, accurate differential and static pressure measurements. This robust instrument can be used with pitot probes to measure duct velocity.



FEATURES AND CAPABILITIES

  • Measure differential and static pressure from -15 to +15 in. H2O (-3735 to +3735 Pa)
  • Calculate and display velocity when using a Pitot tube



APPLICATIONS

  • HVAC commissioning and troubleshooting
  • Testing and balancing
  • Pitot tube duct traverses
  • Static pressure measurements
  • Pressure drop across filters, coils, fans, and diffusers
  • Environmental air flow testing



    WHAT'S INCLUDED?

    • Instrument
    • Hard carrying case
    • 4 alkaline batteries
    • Operation and service manual
    • Calibration certificate



    SPECIFICATIONS

    TSI 5815
    Static/Differential Pressure
    Range -15 to +15 in. H2O
    ( -28.0 to +28.0 mm Hg, -3735 to +3735 Pa)
    Accuracy ±1% of reading ±0.005 in. H2O
    (±0.01 mm Hg, ±1 Pa)
    Resolution 0.001 in. H2O (0.1 Pa, 0.01 mm Hg)
    Velocity (Pitot Tube)
    Range 250 to 15,500 ft/min (1.27 to 78.7 m/s)
    Accuracy ±1.5% at 2,000 ft/min (10.16 m/s)
    Resolution 1 ft/min (0.1 m/s)



    General Technical Data
    Operating Temperature  40 to 113°F (5 to 45°C)
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Power Requirements Four AA-size batteries
    Meter Dimensions 3.3 in. x 7.0 in. x 1.8 in. (8.4 cm x 17.8 cm x 4.4 cm)
    Meter Weight 0.6 lbs. (0.27 kg)

    WARRANTY

    1 Year Manufacturer Warranty
