Testo Smart Probes VAC Set (Testo 405i, Testo 410i, Testo 605i, Testo 805i) - 0563 0003 10

Testo

0563 0003 10

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE
FAQ

The testo VAC Smart Probe Set provides a combination of four instruments needed to test and balance a multi outlet ventilation system. Two types of anememoters give you the capacity to measure in-duct air flow and the flow from each vent. Using an IR temperature probe for surface temperatures will show you motor and electrical equipment conditions and an easy check of each outlet. The thermohygrometer will provide an assessment of the humidity and dewpoint concerns throughout the system.

  • Measurement of air and surface temperature, humidity, air velocity and volume flow
  • Measurement menus for volume flow measurement in ducts and at outlets, identification of mould risk, easy image documentation including IR temperature reading and measurement spot marking
  • Display measurement data as a graph or table and analyze and send via testo Smart Probes App
  • In conjunction with your smartphone/tablet, carry out the most important measurements involved in air conditioning systems

In conjunction with a smartphone or tablet, it can be used to measure air and surface temperatures, air humidity, air velocities and volume flows in, on and around
air conditioning plants and systems. Measurement data reports can be emailed directly as a PDF or Excel file.

FEATURES AND CAPABILITIES

testo 405 i - thermal anemometer

  • For measuring volume flow, air velocity and temperature
  • Simple configuration of the dimension and geometry of the duct cross-section for determining the volume flow
  • Convenient for working in ventilation ducts thanks to its telescopic tube, which can be extended up to 400 mm
  • Really convenient to operate thanks to the testo Smart Tools App (e.g. easy viewing of readings, measurement data trend, log function)

testo 410 i - vane anemometer

  • Measurement of air velocity, volume flow and temperature
  • Display of the volume flow of multiple outlets in order to adjust systems
  • Easy parametrization of the outlet (dimension and geometry)
  • Convenient viewing of readings on a smartphone/tablet with the testo Smart Tools App

testo 605i - Thermohygrometer

  • Measurement of air humidity and temperature in rooms and ducts
  • Automatic calculation of the dew point and wet bulb temperature via testo Smart Probes App
  • Measurement data analyzed and sent via testo Smart Probes App
  • Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m

testo 805 i - infrared thermometer

  • Non-contact infrared measurement of surface temperature
  • Easy selection of emission level via stored materials list
  • Highly visible marking of the measuring spot thanks to 8-point laser
  • Image documentation with readings and measuring spot marking

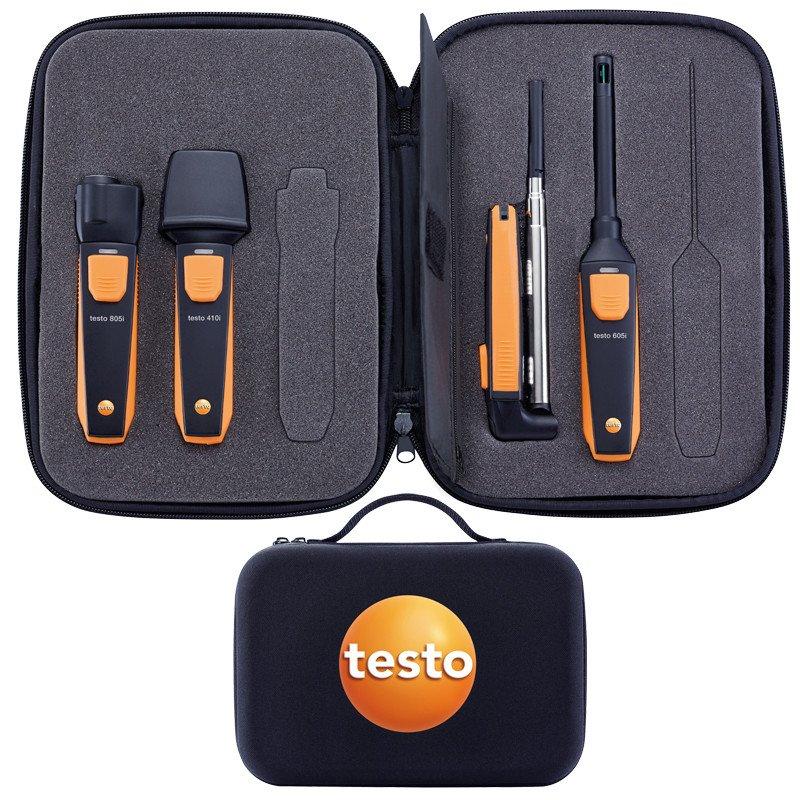

testo Smart Case (Climate)

  • Practical storage case for Smart Probes testo 805i, testo 410i, testo 510i, testo 405i, testo 605i and testo 905i (available separately)
  • Outer: impact-resistant, flexible hard shell with zip
  • Inner: protective foam insert with precise-fit compartments for each measuring instrument
  • Compact dimensions: 270 x 190 x 60 mm

System requirements:

  • iOS 8.3 or later
  • Android 4.3 or later
  • Bluetooth 4.0

WHAT'S INCLUDED?

  • 1 x testo 405i thermal anemometer operated via smartphone, including extendable (400 mm) telescope, batteries and calibration protocol (0560 1405)
  • 1 x testo 410i vane anemometer operated via smartphone, including protective cap, batteries and calibration protocol (0560 1410)
  • 1 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)
  • 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
  • 1 x testo Smart Case “VAC”, including foam insert (0516 0260)

SPECIFICATIONS

testo 405i

testo 410i

testo 605i

testo 805i

Instrument Sensor

Hot wire

Vane

Humidity – capacitive

Infrared

Measuring range

0 to 30 m/s

0.4 to 30 m/s

0 to 100 %RH

-30 to +250 °C

Accuracy ±1 digit

±(0.1 m/s + 5 % of m.v.)
(0 to 2 m/s)
±(0.3 m/s + 5 % of m.v.)
(2 to 15 m/s)

±(0.2 m/s + 2 % of m.v.)
(0.4 to 20 m/s)

±(1.8 %RH + 3 % of m.v.)
at +25 °C
(5 to 80 %RH)

±1.5 °C or ±1.5 % of
reading 0 to +250 °C)
±2.0 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C)

Resolution

0.01 m/s

0.1 m/s

0.1% RH

0.1 °C

Sensor type

NTC

NTC

NTC

-

Measuring range

-20 to +60 °C

-20 to +60 °C

-20 to +60 °C

-

Accuracy ±1 digit

± 0.5 °C

± 0.5 °C

±0.8 °C (-20 to 0 °C)
±0.5 °C (0 to +60 °C)

-

Resolution

0.1 °C

0.1 °C

0.1 °C

-

Compatibility

requires iOS 8.3 or newer / Android 4.3 or newer

requires mobile terminal device with Bluetooth® 4.0

Bluetooth® range

up to 15 m

up to 15 m

up to 100 m

up to 15 m

Storage temperature

-20 to +60 °C

-20 to +60 °C

-20 to +60 °C

-20 to +60 °C

Operating temperature

-20 to +50 °C

-20 to +50 °C

-20 to +50 °C

-10 to +50 °C

Battery type

3 micro
batteries AAA

3 micro
batteries AAA

3 micro
batteries AAA

3 micro
batteries AAA

Battery life

15 hrs

130 hrs

150 hrs

30 hrs

Dimensions

200 x 30 x 41 mm

154 x 43 x 21 mm

243 x 30 x 25 mm



140 x 36 x 25 mm

Telescope extendable
to 400 mm

40 mm Vane diameter

73 mm probe shaft

Optics

-

-

-

10:1

Laser marketing

-

-

-

Diffractive optics
(laser circle)

Emissivity

-

-

-

0.1 to 1.0 adjustable
