Testo Smart Probes Heating Set (Testo 115i, Testo 510i, Testo 805i) - 0563 0004 10
0563 0004 10
$546.00 inc GST
Estimated Delivery Between and .
PRODUCT DESCRIPTION
DOWNLOAD BROCHURE
FAQ
The compact heating set with the testo 115i clamp thermometer, the testo 510i differential pressure measuring instrument and the testo 805i infrared thermometer is ideal for the most important measuring tasks performed by heating engineers.
- Compact professional measuring instruments from the Testo Smart Probes series for use with smartphones/tablets
- All measuring instruments required for non-contact temperature measurement and the measurement of flow and return temperature, as well as gas flow pressure
- Measurement data analyzed and sent via testo Smart App
- Measurement data displayed as a table or graphic
- Handy testo Smart Case transport bag
In conjunction with a smartphone or tablet, it enables all heating system temperatures and pressures to be measured and checked
FEATURES AND CAPABILITIES
testo 115i - Clamp thermometer
- Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
- Fast identification of temperature changes by graphic progression display
- Measurement data analyzed and sent via testo Smart Probes App
- Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m
testo 510 i - differential pressure measuring instrument
- Measurement of gas flow and static pressure
- Measurement menu for pressure drop test including alerts
- Simple configuration and determination of volume flow with Pitot tube
- Magnetic holder for easy attachment
testo 805 i - infrared thermometer
- Non-contact infrared measurement of surface temperature
- Easy selection of emission level via stored materials list
- Highly visible marking of the measuring spot thanks to 8-point laser
- Image documentation with readings and measuring spot marking
testo Smart Case (Heating)
- Practical storage case for Smart Probes testo 115i, testo 510i, testo 805i, testo 410i and testo 549i (available separately)
- Outer: impact-resistant, flexible hard shell with zip
- Inner: protective foam insert with precise-fit compartments for each measuring instrument
- Compact dimensions: 250 x 180 x 70 mm
System requirements:
- iOS 8.3 or later
- Android 4.3 or later
- Bluetooth 4.0

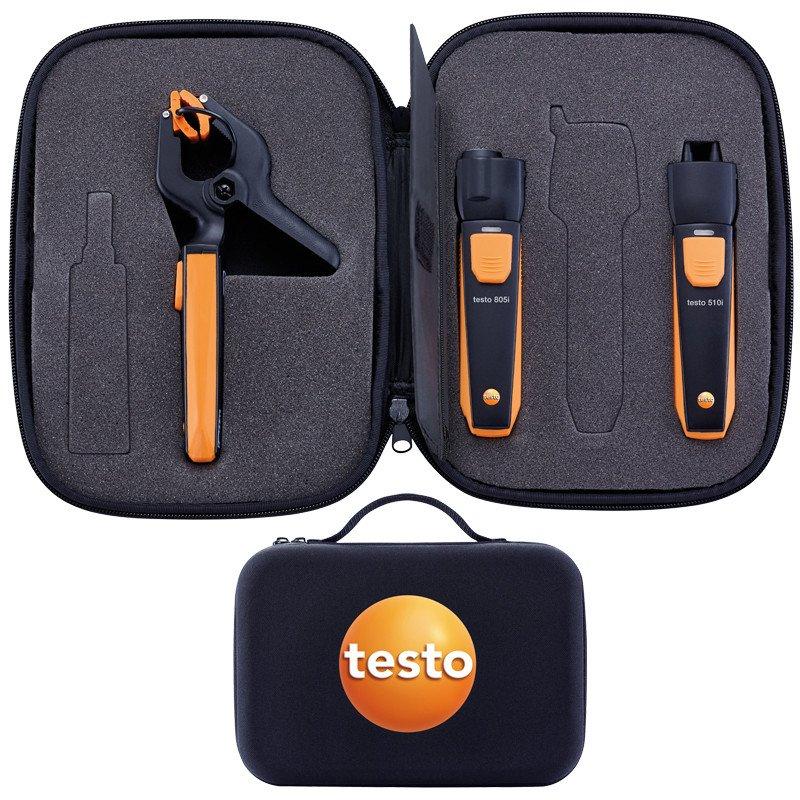

WHAT'S INCLUDED?
- 1 x testo 115i surface thermometer operated via smartphone, including batteries and calibration protocol (0560 2115 02)
- 1 x testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol (0560 1510)
- 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
- 1 x testo Smart Case “Heating”, including foam insert (0516 0270)
SPECIFICATIONS
Technical Data
|
testo 115i |
testo 510i |
testo 805i |
|
|
Instrument Sensor |
NTC |
Pressure |
Infrared |
|
Measuring range |
-40 to +150 °C |
-150 to 150 hPa |
-30 to +250 °C |
|
Accuracy ±1 digit |
±1.3 °C (-20 to +85 °C) |
±0.05 hPa (0 to 1 hPa) |
±1.5 °C or ±1.5 % of |
|
Resolution |
0.1 °C |
0.01 hPa |
0.1 °C |
|
Compatibility |
Requires mobile |
Requires mobile |
Requires mobile |
|
Bluetooth® range |
up to 100 m |
up to 15 m |
up to 15 m |
|
Storage temperature |
-20 to +60 °C |
-20 to +60 °C |
-20 to +60 °C |
|
Operating temperature |
-20 to +50 °C |
-20 to +50 °C |
-10 to +50 °C |
|
Battery type |
3 micro |
3 micro |
3 micro |
|
Battery life |
150 hrs |
150 hrs |
30 hrs |
|
Dimensions |
183 x 90 x 30 mm |
148 x 36 x 23 mm |
140 x 36 x 25 mm |
|
Optics |
- |
- |
10:1 |
|
Laser marketing |
- |
- |
Diffractive optics |
|
Emissivity |
- |
- |
0.1 to 1.0 adjustable |
AUTHORISED RETAILER
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
SCROLL UP AND "ADD TO CART" TODAY.
