The compact VAC kit includes four App-controlled measuring instruments for the most important measuring tasks performed by VAC engineers: the testo 405i thermal anemometer, the testo 410i vane anemometer, the testo 605i thermohygrometer and the testo 805i infrared thermometer.
Application-specific measurement menus for superheating/subcooling, target superheat, heating/cooling power
More than 90 common refrigerants plus refrigerant updates in the testo Smart Probes App
100 m Bluetooth® range for particularly flexible applications
Transmission and analysis of measurement data via testo Smart Probes App
In conjunction with a smartphone or tablet, itcan be used to measure air and surface temperatures, air humidity, air velocities and volume flows in, on and around air conditioning plants and systems. Users can read off their measuring values conveniently via the testo Smart App installed on the smartphone/tablet.
FEATURES AND CAPABILITIES
testo 115i - Clamp thermometer
Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
Fast identification of temperature changes by graphic progression display
Measurement data analyzed and sent via testo Smart Probes App
Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m
testo 549i - High-pressure gauge
Measurement of high and low pressure
Low refrigerant loss – since no hoses are required for measurements
Measurement data displayed in the form of a graph or table, and sent via testo Smart Probes App
Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m
testo 605i - Thermohygrometer
Measurement of air humidity and temperature in rooms and ducts
Automatic calculation of the dew point and wet bulb temperature via testo Smart Probes App
Measurement data analyzed and sent via testo Smart Probes App
Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m
testo HVAC softcase
Practical storage case for all Smart Probes: testo 115i (2x), testo 405i, testo 410i, testo 510i, testo 549 (2x), testo 605i (2x), testo 805i and testo 905i
Outside: impact-resistant, flexible hard shell with zip
Inside: protective foam insert with precise-fit compartments for each measuring instrument
Compact dimensions: 400 x 290 x 80 mm
System requirements:
iOS 8.3 or later
Android 4.3 or later
Bluetooth 4.0

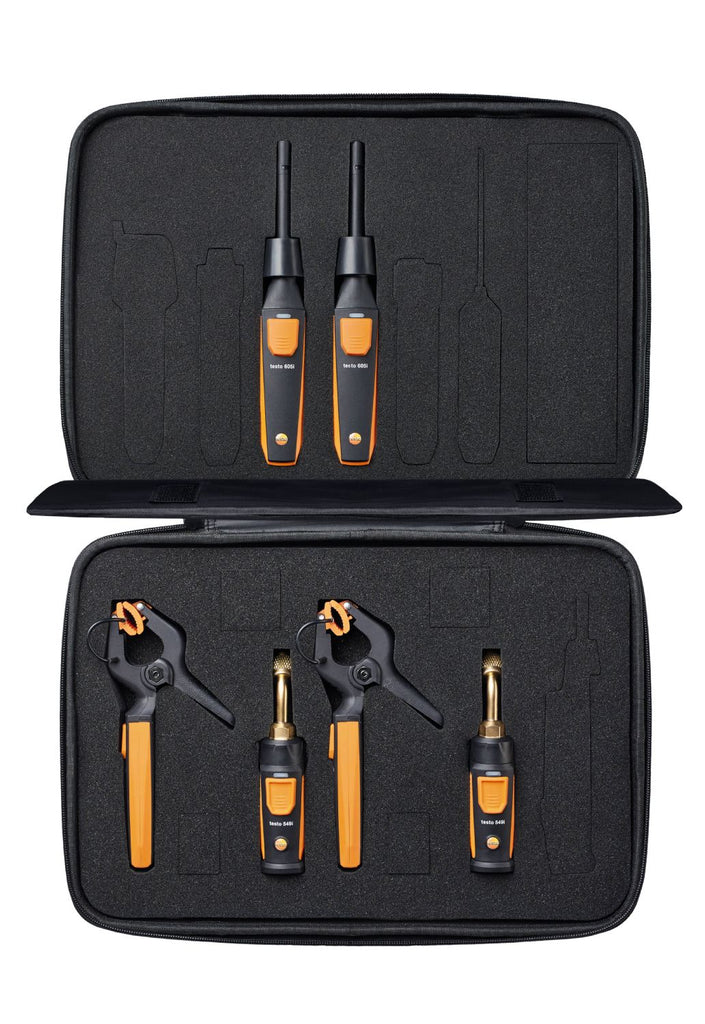

WHAT'S INCLUDED?
2 x testo 115i clamp thermometers operated via smartphone, including batteries and calibration protocol (0560 2115 02)
2 x testo 549i high-pressure gauges operated via smartphone, including batteries and calibration protocol (0560 2549 02)
2 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)
1 x testo HVAC softcase, including foam insert (0516 0283)
SPECIFICATIONS
testo 115i
testo 549i
testo 605i
Sensor type
NTC
Pressure
Humidity – capacitive
NTC
Measuring range
-40 to +150 °C
-1 to 60 bar
0 to 100 %RH
-20 to +60 °C
Accuracy ±1 digit
±1.3 °C (-20 to +85 °C)
0.5% of full scale value
±3.0 %RH (10 to 35 %RH) ±2.0 %RH (35 to 65 %RH) ±3.0 %RH (65 to 90 %RH) ±5 %RH (< 10 %RH or > 90 %RH) (at +25 °C)
±0.8 °C (-20 to 0 °C) ±0.5 °C (0 to +60 °C)
Resolution
0.1 °C
0.01 bar
0.1 %RH
0.1 °C
Connection
-
7/16" – UNF
-
-
Overload rel.
-
65 bar
-
-
Compatibility
requires iOS 8.3 or newer, Android 4.3 or newer, requires mobile terminal device with Bluetooth® 4.0
Bluetooth® range
up to 100 m
Storage temperature
-20 to +60 °C
Operating temperature
-20 to +50 °C
Battery type
3 micro batteries AAA
Battery life
150 hrs
130 hrs
150 hrs
Dimensions
183 x 90 x 30 mm
150 x 32 x 31 mm
218 x 30 x 25 mm, 73 mm probe shaft
Measurable media
-
CFC, HFC, HCFC, N, H2O, CO2
-
-
