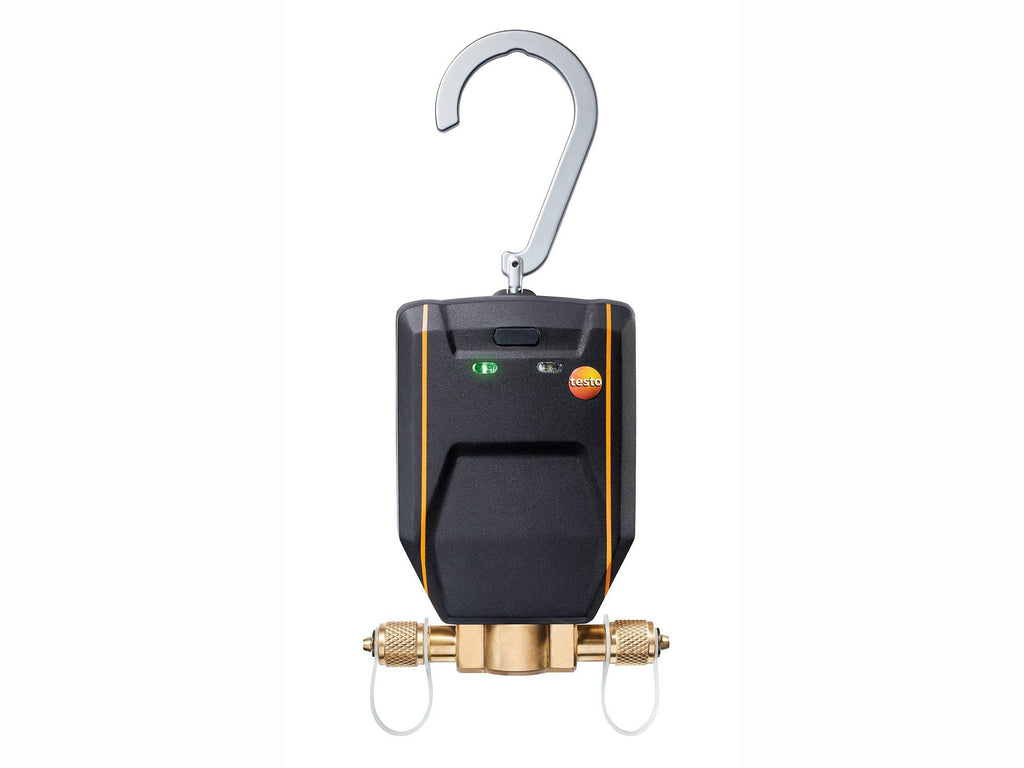

Fully automatic and precise charging of refrigeration systems and heat pumps: The NEW Testo Intelligent Refrigerant Valve makes it possible - together with the separately available Testo 560i refrigerant scale, a Testo manifold, Testo Smart Probes and the Testo Smart App.
- Automatic and precise refrigerant charging according to target superheat, subcooling and weight in combination with the digital refrigerant scale Testo 560i (available separately or as a kit)
- Wireless connection and operation with Testo manifolds and Testo Smart App via Bluetooth®.
- All measured values for the charging process at a glance in the manifold and App – with storage of the measured data in the App
- Robust, handy and compact
Charge refrigeration systems and heat pumps faster and more precisely: automatically with the Testo 560i wireless refrigerant scale, the intelligent refrigerant valve, a digital manifold from Testo and the Testo Smart App. So opt for the practical kit consisting of refrigerant valve and refrigerant scale Testo 560i right away - and benefit from time savings and maximum precision.
FEATURES AND CAPABILITIES
- Intelligent Bluetooth valve for digital refrigerant scale Testo 560i (available separately or as a kit) for automatic and precise refrigerant charging of refrigeration systems/heat pumps
- Easy operation via Testo manifold or Testo Smart App with automatic charging programs according to target value superheat, subcooling or refrigerant weight
- Flexible in confined environments: Valve and scale automatically connect via Bluetooth to the manifold and App on your smartphone/tablet
- All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App
- Compatible with Testo 560i, manifolds Testo 557s/550s/550i as well as Testo 557 /550, Smart Probes Testo 115i/549 i/605i and Testo Smart App for Android and iOS
Advantages of the refrigerant valve
- Especially robust thanks to IP54
- High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 50 m)
- Long battery life of over 60 hours and replaceable 9 V block battery
- Very practical due to sturdy hook
WHAT'S INCLUDED?
- Testo Refrigerant Valve with Bluetooth for digital refrigerant scale Testo 560i
- 1 x 9V (6LR61) battery
- Instruction manual
Also available in a kit: Testo 560i Digital Refrigerant Scale Kit with Bluetooth and Intelligent Valve - 0564 2560
SPECIFICATIONS
Refrigerant valve |
Ambient humidity |
0 to 80 %RH |
Maximum working pressure |
35 bar |
General Technical Data |
Operating temperature |
-10 °C to +50 °C / +14 °F to +122 °F |
Storage temperature |
-10 °C to +50 °C / +14 °F to +122 °F |
Protection class |
IP54 |
Product colour |
black/orange; silver |
Connection |
Bluetooth 4.2 |
Bluetooth® range |
>50 m free field |
Battery type |
9.0 V alkaline battery (6LR61) |
Battery life |
>60 hrs + 3000 valve operations |
Dimensions |
95 x 119 x 47 mm (LxWxH) |
Weight |
570 g (incl. batteries) |
