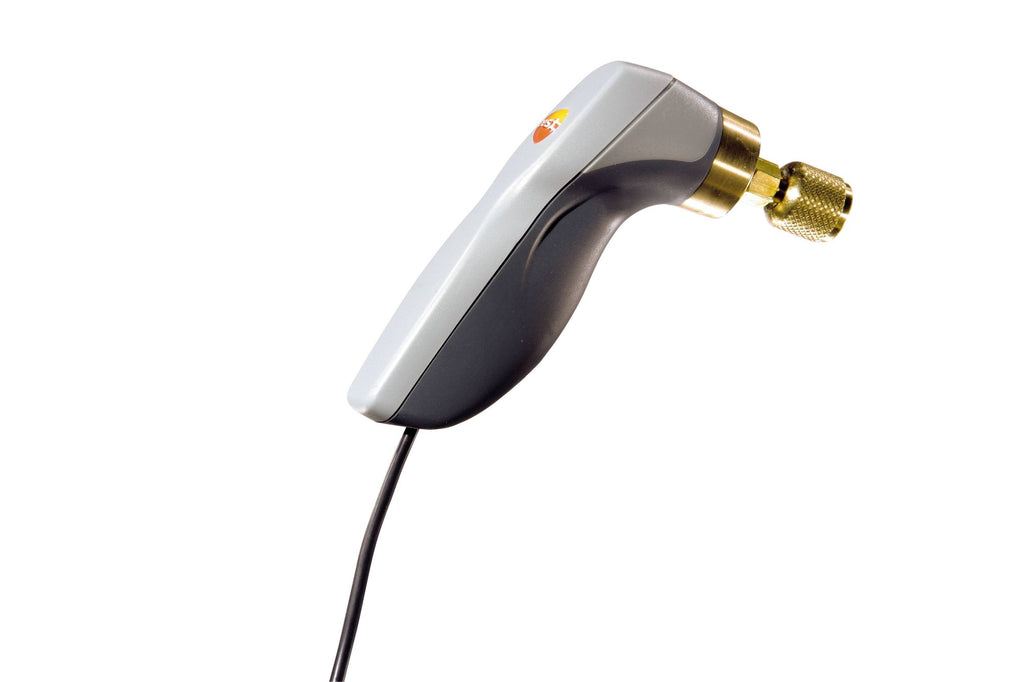

In order to check the lubricating oil pressure in the refrigeration compressor, simply attach the oil pressure probe to the appropriate measuring instrument, screw the connection onto the compressor's oil measurement fittings and select the "Pressure/Compressor" menu.
The lubricating oil pressure is now also shown in the measuring instrument's display.
The oil pressure probe enables reliable checking of the lubricating oil pressure in the refrigeration compressor – this means you can avoid failures and save costs resulting from too low a pressure and the insufficient lubrication associated with this.
| Pressure measurement | |
| Measuring range | 0 to +25 bar rel 0 to +360 psi rel |
| Accuracy | 1.5 % of fsv |
| Resolution | 0.01 bar / 0.1 psi |
| Probe connection | ¼ SAE (7/16 “ UNF) |
| Overload rel. (low pressure) | 50 bar rel 725 psi rel |
| General technical data | |
| Cable length | 2.9 m |
| Product colour | grey |
| Dimensions | 120 x 29 x 38 mm |
| Weight | 245 g |
