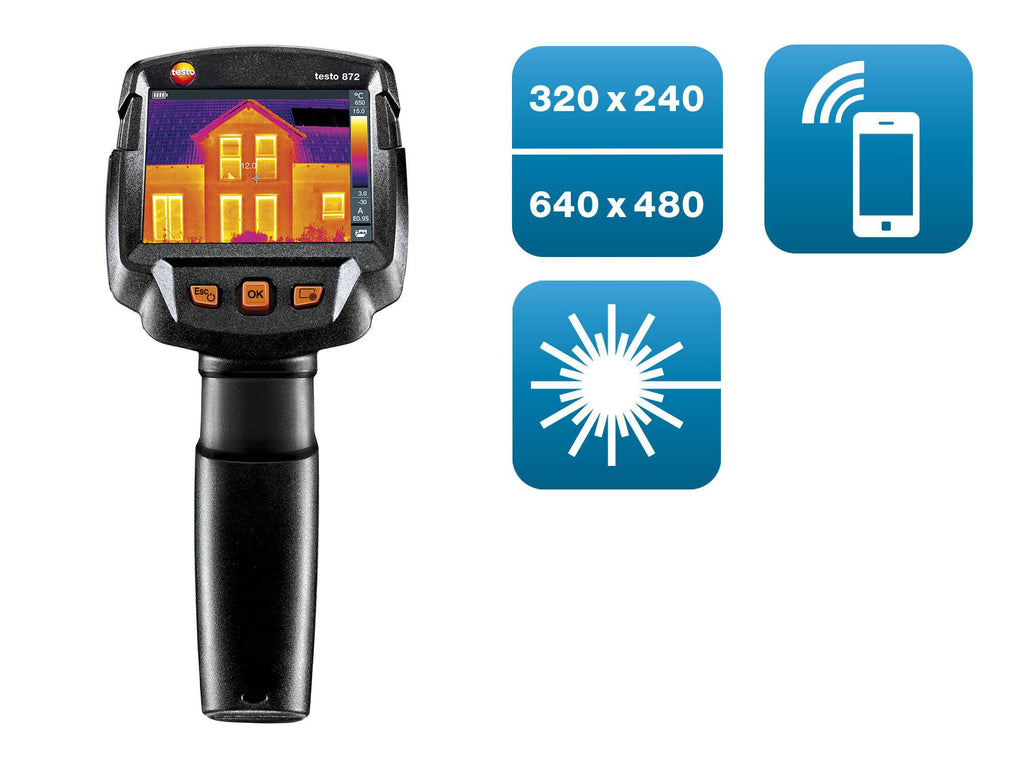

Testo 872 Thermal Imaging Camera 320 x 240 Pixels with Thermography App and Integrated Laser Marker - 0560 8721
Testo 872 Thermal Imaging Camera 320 x 240 Pixels with Thermography App and Integrated Laser Marker - 0560 8721
Testo 872 Thermal Imaging Camera 320 x 240 Pixels with Thermography App and Integrated Laser Marker - 0560 8721
  • SKU: 0560 8721

Testo 872 Thermal Imaging Camera 320 x 240 Pixels with Thermography App and Integrated Laser Marker - 0560 8721

$6,056.87
GST included.
    DESCRIPTION
    DOWNLOAD BROCHURE

    The testo 872 thermal imager stands out thanks to its resolution of 320 x 240 pixels, an excellent thermal sensitivity, numerous innovative functions, smartphone connection via the testo Thermography App and the best price-performance ratio of its class.

    The testo 872 thermal imager is ideally suited for professional industrial and building thermography - at the same time it ensures your work is both quick and easy. It is versatile to use, for example in industrial and mechanical maintenance or for detecting structural defects. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of thermal image scale.

    • Highest image quality: IR resolution of 320 x 240 pixels, via integrated testo SuperResolution Technology 640 x 480 pixels
    • Precise measurement: thermal sensitivity of 0.06°C
    • Smart and wireless: use your mobile device with the free testo Thermography App and wirelessly transmit readings from the testo 770-3 clamp meter and the testo 605i humidity measuring instrument (both available separately)
    • Integrated laser marker – can also be precisely visualized as a measuring point in the thermal image

    The testo 872 thermal imager gives you the best possible support for your work in professional industrial and building thermography. Take thermal images quickly, reliably and smartly with the highest image quality, very good thermal sensitivity and innovative functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

    For even more meaningful thermal images, the thermal imager testo 872 also wirelessly integrates the measurement values of the clamp probe testo 770-3 as well as the thermohygrometer testo 605i (both available as an option).

    FEATURES AND CAPABILITIES

    Technical highlights of the testo 872 thermal imager
    The testo 872 thermal imager is characterized by its easy handling and its outstanding image quality. Its technical features are impressive:

    • Highest image quality thanks to high resolution: 76,800 temperature measuring points for precise thermography. Infrared resolution of 320 x 240 pixels – extendible to 640 x 480 pixels via integrated SuperResolution Technology
    • Detecting temperature differences from as little as 0.06°C
    • testo Thermography App to use mobile terminal devices as a second display and for remote control or to write and send reports, along with saving them online
    • Wireless communication thanks to Bluetooth – this means you can also wirelessly integrate the readings of the compatible testo 770-3 clamp meter and testo 605i thermohygrometer
    • Built-in digital camera and laser marker generate a real image in parallel to the thermal image
    • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
    • The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
    • The testo ɛ-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
    • The IFOV warner means the distance from the measurement object/measurement spot size is determined and the measurement spot is shown on the thermal image – you, therefore, avoid measurement errors because the camera shows you exactly what you can measure
    • Pro software for image evaluation on the PC
    • You can choose to save thermal images as JPEGs

    The testo 872 thermal imager– smart and networked
    The testo 872 thermal imager guarantees wireless communication with mobile terminal devices via WLAN. The testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control.

    The testo 872 delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and testo 605i thermohygrometer. Both are available separately – simply order them straight away along with your testo 872. The thermal imager wirelessly integrates the measurement results of these measuring instruments via Bluetooth. The additional output, current and voltage values of the testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the testo 605i humidity measuring instrument and easily detect locations at risk of developing mould using the special humidity palette in the thermal imager via the traffic light principle.

    APPLICATION

    Areas of application of the testo 872 thermal imager
    Detect locations at risk of developing mould, pinpoint thermal bridges, discover structural defects or identify overheated connections. The testo 872 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.

    Preventive maintenance
    Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.
     - Fast detection of critical thermal status (so-called HotSpots) during continuing operation
     - Avoid expensive damage, downtimes and fire risks on plants and machines
     - Electrical maintenance:
              Test switching cabinets, electrical conditions, photovoltaic plants
              Evaluate heat status in low, medium and high voltage plants
     - Mechanical maintenance:
              Identify wear on machines
             Test motors, bearings, shafts

    Detecting structural defects and ensuring construction quality
    - Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
    - Test air-tightness of windows and doors
    - Locate insulation errors and cold bridges in a building shell
    - Detect and visualize mould-risk areas

    Professional energy consultation
    - Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
    - Easy recording and documentation of energy loss from buildings
    - Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
    - Localize untight spots in new buildings quickly and easily in combination with Blower Door

    Preventing mould formation
    - Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode

    Easy checking of heating systems and installations
    - Test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
    - Localization of the course of heating loops in underfloor heating systems
    - Testo radiators for silting
    - Measure flow and return temperatures

    Localize pipe ruptures
    - Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
    - Precise localization of leakages in underfloor heating and other inaccessible pipe systems

    Locating leaks in flat roofs
    - Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation

    WHAT'S INCLUDED

    • testo 872 thermal imager with radio module for Bluetooth/WLAN
    • USB cable, mains unit
    • Lithium-ion rechargeable battery
    • Pro software IRSoft (free download)
    • 3 x testo ε-Markers
    • Commissioning instructions, short instructions
    • Calibration protocol
    • Case

    SPECIFICATIONS

    Infrared image output
    Spectral range 7.5 to 14 µm
    Infrared resolution 320 x 240 pixel
    Thermal sensitivity 60 mK
    Field of view 42° x 30°
    Minimum focus distance <0.5 m
    Geometric resolution (IFOV) 2.3 mrad
    SuperResolution (Pixel) 640 x 480 pixels
    SuperResolution (IFOV) 1.3 mrad
    Image refresh rate 9 Hz
    Focus Fixed focus
    Image output visual
    Image size at least 3.1 MP
    Minimum focus distance 0.5 m
    Image presentation
    Display type 8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
    Digital zoom 2x; 4x
    Display option IR image / real image
    Colours 10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
    Imager equipment
    Full screen mode Included
    JPEG storage Included
    Video streaming via wireless LAN with testo Thermography App
    Standard lens 42° x 30°
    Digital camera Included
    Interface USB 2.0 Micro B
    WLAN Connectivity Communication with the testo Thermography App wireless module BT/WLAN (EU, EFTA, USA, AUS, CDN, TR)
    Bluetooth Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional) Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey"
    Laser Laser marker
    Imager storage
    File format image .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
    Storage device Internal Memory (2.8 GB)
    Measurement
    Measuring range -30 to +100°C; 0 to +650°C
    Accuracy ±2 °C, ±2 % of m.v.
    Emissivity 0.01 to 1
    Reflected temperature manual
    testo ε-Assist Included
    Measuring function
    Solar mode – manual Input of solar radiation value
    Analysis function Mean point measurement, hot/cold-spot recognition, Delta T, area measurement (min-max on area)
    Electrical mode - manual Input of current, voltage or power
    IFOV warner Included
    Humidity mode - manual Included
    testo ScaleAssist Included
    Humidity measurement with humidity measuring instrument Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)
    Electrical measurement with clamp meter Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately)
    Ambient Condition
    Operating temperature -15 to +50 °C
    Storage temperature -30 to +60 °C
    Air humidity 20 to 80 %RH non-condensing
    Housing protection class IP54
    Vibration 2G
    Power supply
    Battery type Fast-charging, Li-ion battery can be changed on-site
    Operating time 4.0 h
    Mains operation yes
    Charging options In instrument / charger (optional)
    PC software
    System requirements Windows® 10; Windows® 8; Windows® 7
    Physical specification
    Dimensions 219 x 96 x 95 mm
    Weight 510 g
    Product-/housing material PC - ABS
    Product colour Black
    Display ligthing bright / normal / dark
    Standards, tests
    EU-/EG-guidelines RED: 2014/53/EU; EMC: 2014/30/EU
