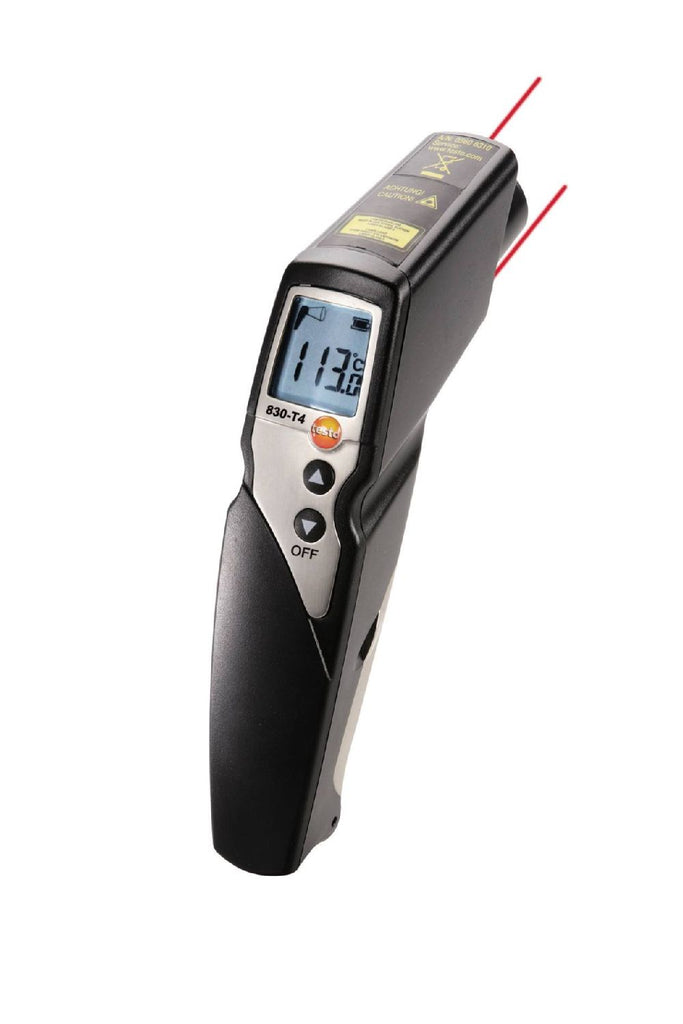

Testo 830 T4 Kit IR Thermometer - 0563 8314

Testo

0563 8314

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

The testo 830-T4 infrared thermometer in a practical set can be used universally and enables you to measure surface temperatures in trade and industry quickly and precisely, both on a non-contact basis and with surface contact.

Versatility comes with the set: the testo 830-T4 IR thermometer, including practical protective leather sleeve and a cross-band surface probe for precise contact measurement on different surfaces. This means you are flexibly equipped for the professional measurement of surface temperatures.

FEATURES AND CAPABILITIES

  • Easy to handle gun-style design
  • 2-point laser marking for precise display of the measuring point
  • 30:1 optics also enable the accurate measurement of small objects at a distance
  • Limit value control with min./max. function along with visual and acoustic signal

The advantages of the testo 830-T4 infrared thermometer
The measuring spot diameter is only 36 mm at a distance of 1 m to the surface, thanks to the good 30:1 optics. This means that even temperatures of small objects can be reliably determined from a safe distance. For example, you can comfortably measure the temperatures of heating pipes from a standing position.

The 2-point laser marking means you can always see clearly and distinctly at which location the temperature is being measured. You can also measure very small temperature differences very accurately with the precise resolution of 0.1°C. And the min./max. function enables you to set individual limit values. There is a visual and acoustic indication when limit values are exceeded.

Extended functions with attachable surface probe
Would you also like to carry out contact measurement in addition to non-contact IR measurement (e.g. for control purposes)? Then attach the cross-band surface probe which is included in the set to the infrared thermometer. Its sprung cross-band is also suitable for surfaces that are not flat.

The comparative contact measurement with the surface temperature probe will also help you determine the emission level of the surface material. This means you will be able to set the infrared thermometer emission level accordingly in order to achieve the best results in the subsequent IR measurement.

WHAT'S INCLUDED?

  • Testo 830-T4 infrared thermometer
  • Cross-band surface probe
  • Protective leather case
  • Battery
  • Protocol certificate

SPECIFICATIONS

Temperature - TC Type K (NiCr-Ni)

Measuring range

-50 to +500 °C

Accuracy

±0.5 °C + 0.5 % of mv

Resolution

0.1 °C

Measuring rate

1.75 s



Temperature - Infrared

Measuring range

-30 to +400 °C

Accuracy

±1.5 °C (-20 to 0 °C)

±2 °C (-30 to -20.1 °C)

±1 °C or ±1 % of mv (Remaining Range)

Resolution

0.1 °C

Measuring rate

0.5 s



General technical data

Storage temperature

-40 to +70 °C

Operating temperature

-20 to +50 °C

Product-/housing material

ABS

Battery type

9V block battery

Battery life

15 h

Dimensions

190 x 75 x 38 mm
