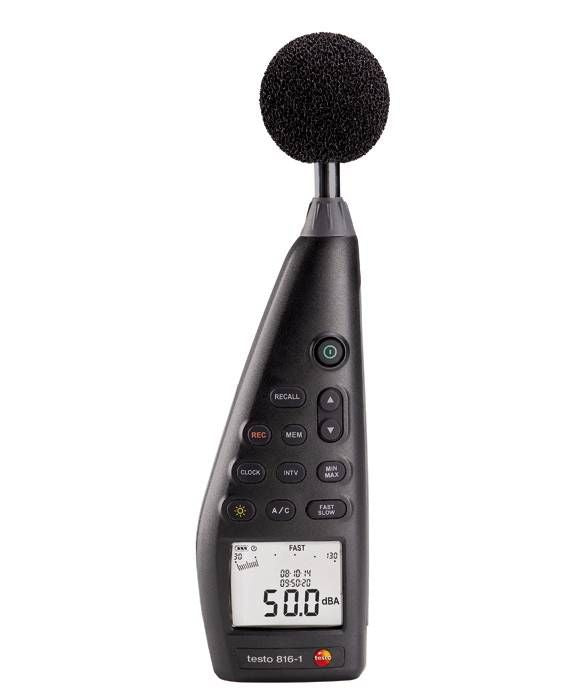

Testo 816-1 Sound Level Meter 20 Hz to 8 kHz - 0563 8170
Testo 816-1 Sound Level Meter 20 Hz to 8 kHz - 0563 8170
  • SKU: 0563 8170

Testo 816-1 Sound Level Meter 20 Hz to 8 kHz - 0563 8170

$1,262.17
GST included.
    DESCRIPTION
    DOWNLOAD BROCHURE

    The testo 816-1 is ideal for sound level measurements at workplaces, in industrial and production halls, and in public places. With the touch of a button, the measuring instrument can be switched from Slow (1 sec.) to Fast (125 ms). It is also possible to switch between the frequency weighting characteristic curves A and C and vice versa, also at the touch of a button. Characteristic curve A corresponds to the sound pressure sensitivity of the human ear, while characteristic curve C can evaluate low-frequency components of a noise.

    The top-of-the-range testo 816-1 sound level meter complies with all requirements with regard to the execution of non-conform noise level measurements according to IEC 61672-1 Class 2 and ANSI S1.4 Type 2. This makes it suitable for carrying out noise level measurements in the workplace as well as in public places, industry and production.

    The testo 816-1 has all the features which its little brother, the testo 816, has but also comes with a built-in data logger that can save up to 31 000 readings and dedicated PC software.

    FEATURES AND CAPABILITIES

    • Precise noise level measurements according to IEC 61672-1 Class 2 and ANSI S1.4 Type 2
    • Ideal for health and safety inspections and immission control
    • Frequency weighting A and C
    • Integrated memory for up to 31 000 readings: long-term measuring possible
    • PC software for data analysis and USB cable for data transfer
    • Switchable time weighting Fast/Slow
    • Bar graph display
    • Backlit display
    • AC and DC output for the connection of other instruments

    The sound level meter for pros: measure, save, analyse
    The testo 816-1 also comes with a practical all-in-one carry bag and a whole host of technical features and benefits designed to allow you to carry out professional noise level measurements as a part of health and safety inspections and immission controls. Benefits include being able to change the measuring rate from slow (one measurement per second) to fast (one measurement every 125 milliseconds) depending on the type of measurement, and being able to select between two frequency measurement types: the characteristic curve A corresponds to the way the human ear perceives sound pressure while the characteristic curve C measures the low frequency percentage of the noise.

    In addition, you can also use the optional sound calibrator and the screwdriver included in the scope of delivery to recalibrate your testo 816-1 sound level meter on site wherever you are.

    The sound level meter also has a backlit display for use in all lighting conditions.

    But that is by no means all: the testo 816-1 sound level meter has an internal data logger that can save up to 31 000 measurements and comes with a USB cable that allows you to hook your meter up to a PC and transfer the data directly, and dedicated PC software designed to help you manage and analyse the data you have collected.

    APPLICATION

    Areas of use for the testo 816-1 sound level meter
    Health and safety is a key issue in the workplace where noise levels are not allowed to exceed certain decibel limits. But high noise levels are just as much an issue in public places where environmental noise caused by traffic, industry and public events not only reaches levels which some residents find uncomfortable or annoying but which can also be harmful to their health.

    The testo 816-1 sound level meter is designed for checking and measuring noise levels in the workplace and in public places using selective or long-term measurements.

    WHAT'S INCLUDED

    • testo 816-1 sound level meter, according to IEC 61672-1 Class 2 and ANSI S1.4 Type 2
    • Transport bag
    • Wind protection
    • PC software (as a download)
    • USB connection cable
    • Screwdriver for calibration
    • Batteries
    • Instruction manual

    SPECIFICATIONS

    Sensor
      Sound Pressure
    Measuring range 30 to 130 dB
    Frequence range 20 Hz to 8 kHz
    Accuracy ±1.4 dB (under reference conditions: 94 dB, 1 kHz)
    Resolution 0.1 dB
    Measuring rate 0.5 s



    General technical data
    Operating temperature 0 to +40 °C
    Storage temperature -10 to +60 °C
    Frequency weighting A / C
    Microphone 0.5 "
    Dynamic range 100 dB
    Time weighting FAST 125 ms / SLOW 1 sec
    Battery type 4 x type AA batteries
    Weight 390 g
    Dimensions 272 x 83 x 42 mm
