Testo 770-1 clamp meter-Electrical Testing-Testo-Cool Tools HVAC-R
Testo 770-1 Clamp Meter - 0590 7701
Testo 770-1 Clamp Meter - 0590 7701
  • SKU: 0590 7701

Testo 770-1 Clamp Meter - 0590 7701

$356.95
GST included.
    DESCRIPTION
    DOWNLOAD BROCHURE
    Electrical Range Brochure

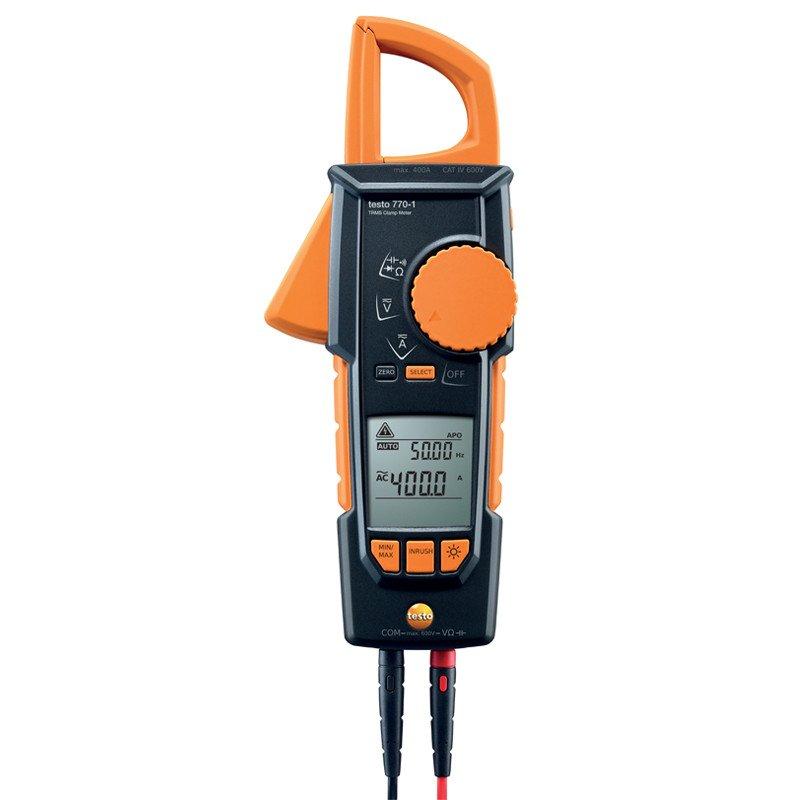

    The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.

    This cable-grabTM clamp meter means you can cope in any application environment, no matter how tight. The movable pincer arm can be fully retracted into the instrument, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. You have never been able to measure as conveniently as this in tight spots.

    The operation of the testo 770-1 clamp meter is also easier and more reliable than ever before. It automatically detects and selects AC/DC and other electrical parameters, such as resistance, continuity, diode and capacitance. In addition, you can also use it to measure the starting current. And the two-line display presents your readings clearly and distinctly.

    FEATURES AND CAPABILITIES

    • Measures the common electrical parameters
    • Auto AC/DC
    • Fully retractable pincer arm for maximum flexibility
    • Large two-line display

    WHAT'S INCLUDED

    • Testo 770-1 TRMS clamp meter including battery
    • 1 set of measuring cables (0590 0010)
    • Instruction manual

    SPECIFICATIONS

    Technical Data

    testo 770-1

    testo 770-2

    testo 770-3

    True RMS

    YES

    YES

    YES

    Basic accuracy

    0.8 %

    0.8 %

    0.1 %

    Voltage measuring range

    1 mV to 600 V AC/DC

    1 mV to 600 V AC/DC

    1 mV to 600 V AC/DC

    Current measuring range

    0.1 to 400 A AC/DC

    0.1 to 400 A AC/DC

    0.1 to 600 A AC/DC

    Power measurement

    -

    -

    YES

    μA measuring range

    -

    0.1 to 400 μA AC/DC

    0.1 to 400 μA AC/DC

    Resistance measuring range

    0.1 Ω to 40 MΩ

    0.1 Ω to 40 MΩ

    0.1 Ω to 60 MΩ

    Frequency measuring range

    0.001 Hz to 10 kHz

    0.001 Hz to 10 kHz

    0.001 Hz to 10 kHz

    Capacitance measuring range

    0.001 μF to 100 μF

    0.001 μF to 100 μF

    0.001 μF to 60,000 μF

    Temperature measuring range

    -

    -20 to +500 °C

    -20 to +500 °C

    Bluetooth & testo
    Smart Probes App

    -

    -

    YES

    Continuity testing

    YES

    YES

    YES

    Diode test

    YES

    YES

    YES

    Display (counts)

    4,000

    4,000

    6,000

    Measurement category

    CAT IV 600 V
    CAT III 1,000 V

    CAT IV 600 V
    CAT III 1,000 V

    CAT IV 600 V
    CAT III 1,000 V

    Operating temperature

    -10 to +50 °C

    -10 to +50 °C

    -10 to +50 °C

    Storage temperature

    -15 to +60 °C

    -15 to +60 °C

    -15 to +60 °C

    Dimensions (L x W x H)

    243 x 96 x 43 mm

    243 x 96 x 43 mm

    243 x 96 x 43 mm

    Weight

    378 g

    378 g

    378 g

    Authorizations

    CSA, CE

    CSA, CE

    CSA, CE

    Standards

    EN 61326-1,
    EN 61140

    EN 61326-1,
    EN 61140

    EN 61326-1,
    EN 61140
