Testo 760-3 Digital Multimeter - 0590 7603

Testo

0590 7603

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE
Electrical Range Brochure

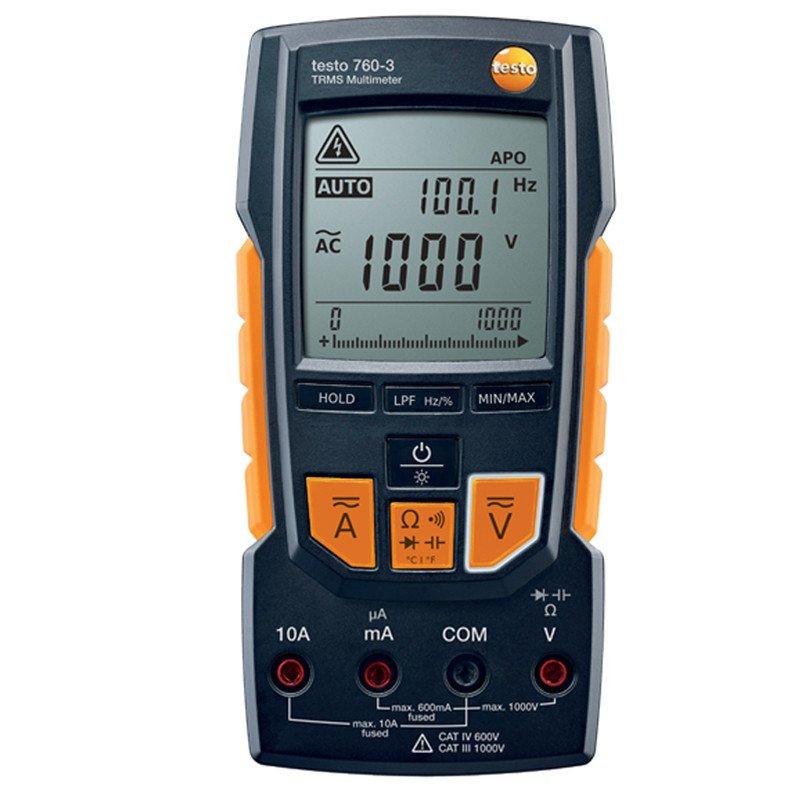

The testo 760-3 is the most high-performance model in Testo's digital multimeter family. In addition to automatic detection of measurement parameters, it is characterized by a voltage measuring range of up to 1,000 V along with large measuring ranges for frequency and capacitance. This makes it ideal for industrial applications.

The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings.

A voltage range of up to 1,000 V, a frequency range of up to 60 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.

Temperatures can also be measured with this multimeter in addition to electrical parameters.


FEATURES AND CAPABILITIES

  • Suitable for almost all electrical measuring tasks
  • Prevents incorrect settings
  • Easy, reliable operation through automatic measurement parameter detection
  • Clear, illuminated display

WHAT'S INCLUDED?

  • Testo 760-3 TRMS multimeter including batteries
  • 1 set of measuring cables (0590 0010)
  • Calibration protocol
  • Instruction manual

SPECIFICATIONS

Technical Data

testo 760-1

testo 760-2

testo 760-3

True RMS

-

YES

YES

Basic accuracy

0.8 %

0.1 %

0.1 %

AC/DC voltage measuring range

0.1 mV to 600 V

0.1 mV to 600 V

0.1 mV to 1,000 V

AC/DC current measuring range

1 mA to 10 A

0.1 μA to 10 A

0.1 μA to 10 A

Resistance measuring range

0.1 to 40 MΩ

0.1 to 60 MΩ

0.1 to 60 MΩ

Frequency measuring range

0.001 Hz to 512 kHz

0.001 Hz to 30 MHz

0.001 Hz to 60 MHz

Capacitance measuring range

0.001 nF to 100 µF

0.001 nF to 30,000 µF

0.001 nF to
60,000 μF

Temperature measuring range

-

-20 to +500°C

-20 to +500°C

Continuity testing

YES

YES

YES

Diode test

YES

YES

YES

Display (counts)

4,000

6,000

6,000

Overvoltage category

CAT4/300 V
CAT3/600 V

CAT4/600 V
CAT3/1,000 V

CAT4/600 V
CAT3/1,000 V

Protection class

IP64

IP64

IP64

Operating temperature

-10 to +50°C

-10 to +50°C

-10 to +50°C

Storage temperature

-15 to +60°C

-15 to +60°C

-15 to +60°C

Dimensions (L x W x H)

167 x 84 x 45 mm

167 x 84 x 45 mm

167 x 84 x 45 mm

Weight

340 g

340 g

340 g

Authorizations

CSA, CE

CSA, CE

CSA, CE

Standards

EN 61326-1

EN 61326-1

EN 61326-1
