Testo 760-2 Digital Multimeter - 0590 7602

Testo

0590 7602

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE
Electrical Range Brochure

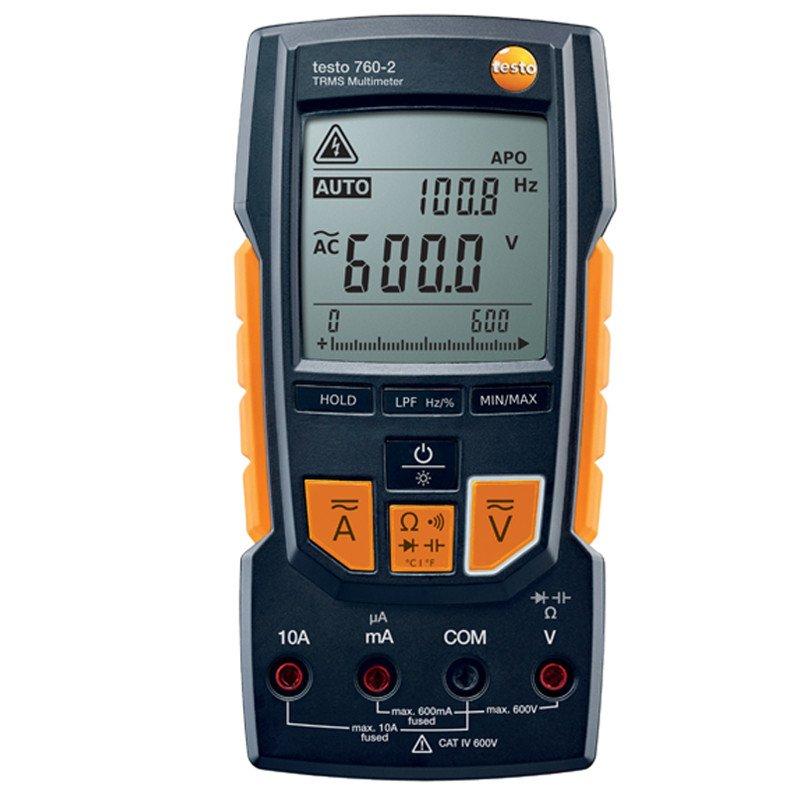

The testo 760-2 digital multimeter is the allrounder for all important electrical measuring tasks. Thanks to the automatic detection of measurement parameters, it offers the greatest possible reliability for every application. You can also measure current in the µA range and determine the true root mean square using this digital multimeter.

The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.

It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.

The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.

Temperatures can also be measured with this multimeter in addition to electrical parameters.


FEATURES AND CAPABILITIES

  • Current measurement in the µA range
  • True root mean square measurement - TRMS
  • Easy, reliable work thanks to automatic measurement parameter detection
  • Low-pass filter for accurate measurement results on frequency converter controlled motors

WHAT'S INCLUDED?

  • Testo 760-2 TRMS multimeter, including batteries
  • 1 set of measuring cables (0590 0010)
  • 1 x adapter for thermocouples type K
  • Calibration protocol
  • Instruction manual

SPECIFICATIONS

Technical Data

testo 760-1

testo 760-2

testo 760-3

True RMS

-

YES

YES

Basic accuracy

0.8 %

0.1 %

0.1 %

AC/DC voltage measuring range

0.1 mV to 600 V

0.1 mV to 600 V

0.1 mV to 1,000 V

AC/DC current measuring range

1 mA to 10 A

0.1 μA to 10 A

0.1 μA to 10 A

Resistance measuring range

0.1 to 40 MΩ

0.1 to 60 MΩ

0.1 to 60 MΩ

Frequency measuring range

0.001 Hz to 512 kHz

0.001 Hz to 30 MHz

0.001 Hz to 60 MHz

Capacitance measuring range

0.001 nF to 100 µF

0.001 nF to 30,000 µF

0.001 nF to
60,000 μF

Temperature measuring range

-

-20 to +500°C

-20 to +500°C

Continuity testing

YES

YES

YES

Diode test

YES

YES

YES

Display (counts)

4,000

6,000

6,000

Overvoltage category

CAT4/300 V
CAT3/600 V

CAT4/600 V
CAT3/1,000 V

CAT4/600 V
CAT3/1,000 V

Protection class

IP64

IP64

IP64

Operating temperature

-10 to +50°C

-10 to +50°C

-10 to +50°C

Storage temperature

-15 to +60°C

-15 to +60°C

-15 to +60°C

Dimensions (L x W x H)

167 x 84 x 45 mm

167 x 84 x 45 mm

167 x 84 x 45 mm

Weight

340 g

340 g

340 g

Authorizations

CSA, CE

CSA, CE

CSA, CE

Standards

EN 61326-1

EN 61326-1

EN 61326-1
