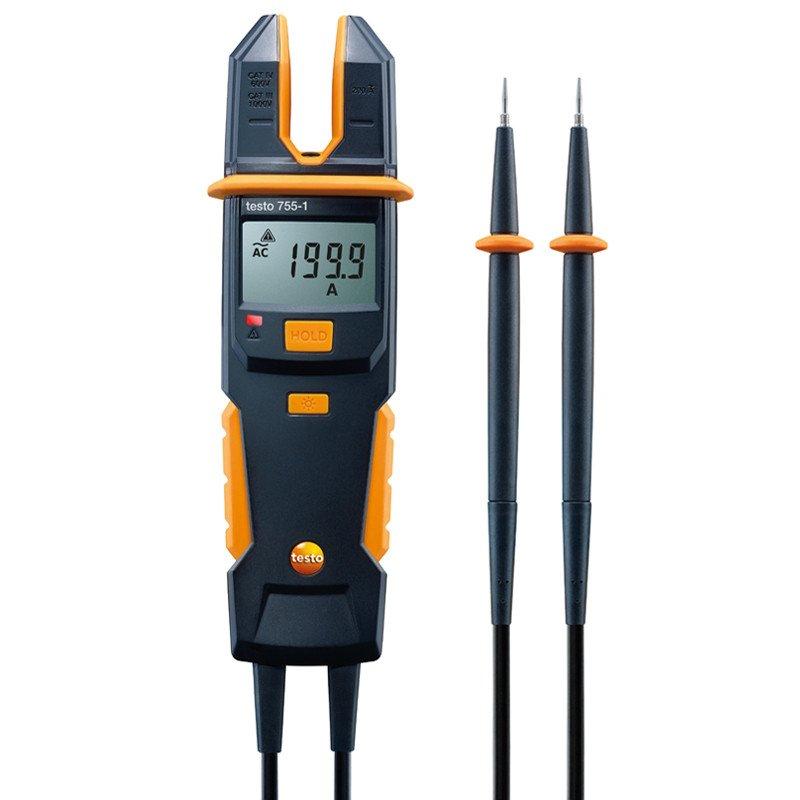

Testo 755-1 Voltage Tester with Current Measurement - 0590 7551

Testo

0590 7551

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE
Electrical Range Brochure

Measuring current with a voltage tester? The innovative testo 755-1 makes this possible – and is, therefore, suitable for virtually all daily electrical measuring tasks. The practical automated switch-on function and automatic measurement parameter detection also mean you can work more reliably than ever before with it.

The first voltage tester with current measurement is here: the testo 755-1. You can test electrical circuits or systems for voltage or de-energization, measure flow of current or current consumption and carry out continuity tests using a single instrument. In the process, the testo 755-1 voltage tester detects and selects all the electrical parameters automatically: you can just start measuring – without any switching on or selection.

The measuring tips, which can be quickly and simply exchanged, are also particularly user-friendly. This means you do not need to replace the whole instrument straight away in the event of damage. Just as practical: the integrated torch for illuminating dark measuring points.

The testo 755-1 current/voltage tester is a genuine allrounder that will make your day-to-day work easier.

FEATURES AND CAPABILITIES

  • Easy, reliable operation through automatic measurement parameter detection
  • Exchangeable measuring tips
  • Suitable for almost all electrical measuring tasks
  • DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified

WHAT'S INCLUDED?

  • Testo 755-1 current/voltage tester
  • Batteries
  • Measuring tips
  • Measuring tip caps
  • Calibration protocol
  • Instruction manual

SPECIFICATIONS

Technical Data

testo 755-1

testo 755-2

Voltage measuring range

6 to 600 V

6 to 1000 V

Current measuring range

0.1 to 200 A AC

0.1 to 200 A AC

Resistance measuring range

1 Ω to 100 kΩ

1 Ω to 100 kΩ

Continuity testing

< 50 Ω

< 50 Ω

Rotating magnetic field testing

-

> 100 to 690 V

Single pole phase testing

-

100 to 690 V
at 50/60 Hz

Display (counts)

4,000

4,000

Measuring point illumination

YES

YES

Overvoltage category

CAT4/600 V
CAT3/1,000 V

CAT4/600 V
CAT3/1,000 V

Protection class

IP 64

IP 64

Operating temperature

-10 to +50°C

-10 to +50°C

Storage temperature

-15 to +60°C

-15 to +60°C

Dimensions (L x W x H)

199 x 62 x 40 mm

199 x 62 x 40 mm

Weight

306 g

306 g

Warranty

2 years

2 years

Authorizations

TÜV, CSA, CE

TÜV, CSA, CE

Standards

EN 61243-3:2010,
EN 61010-1

EN 61243-3:2010,
EN 61010-1
