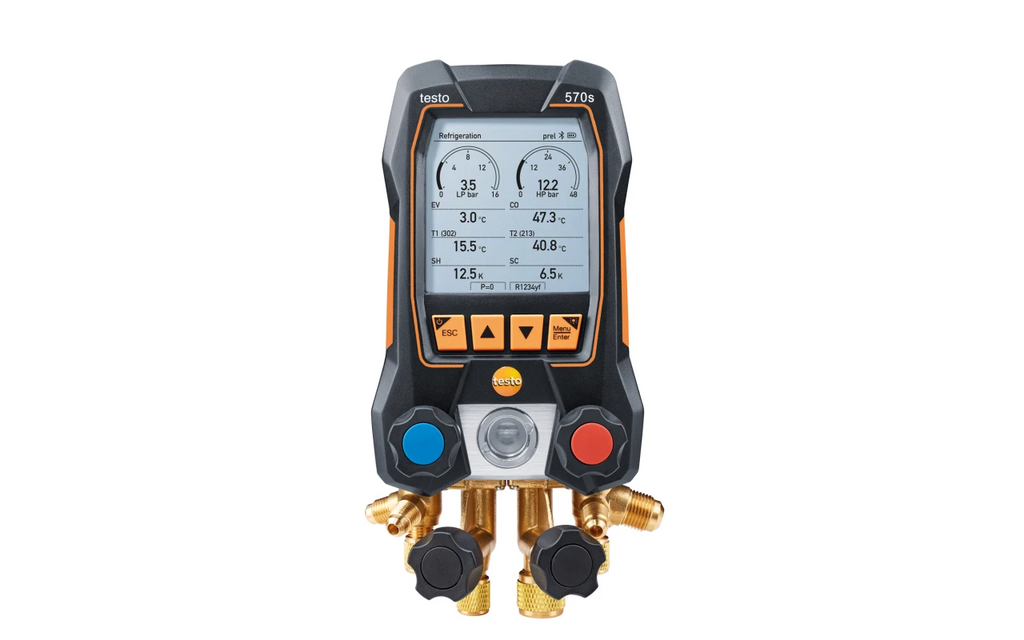

The Testo 570s Digital Manifold, equipped with Bluetooth and a 4-way valve block, is the ideal choice for extended measurements on refrigeration, air conditioning systems, and heat pumps. The Testo Smart App’s intelligent error analysis quickly and reliably identifies irregularities. With an industry-leading runtime of up to 360 hours, a spacious data memory, and high measurement precision, the testo 570s is a dependable tool for both long-term and short-term measurements.
| Temperature | |
| Measuring Range | -50 to +150 °C |
| Accuracy | ±0.5 °C |
| Probe Connection | 2 x Plug-in (NTC) |
| Pressure Measurement | |
| Measuring Range | -1 to 60 bar |
| Resolution | 0.01 bar |
| Accuracy | ±0.25 % fs |
| Probe Connection | 3 x 7/16" – UNF + 1 x 5/8'' – UNF |
| Overload rel. (low pressure) | 65 bar |
| Overload rel. (high pressure) | 65 bar |
| General Technical Data | |
| Operating Temperature | -20 to +50 °C |
| Protection Class | IP54 |
| System Requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires a mobile end device with Bluetooth 4.0 |
| Auto-Off Instrument | 10 min |
| Battery Type | Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA |
| Battery Life | With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination |
| Storage Temperature | -20 to +60 °C |
| Radio Range | 150 m |
