Measuring refrigerant weight quickly, precisely and conveniently - that's only possible with the NEW Testo 560i Digital Refrigerant Scale.
- Wireless measurement of refrigerant weight and operation with Testo manifolds and testo Smart App via Bluetooth
- Automatic and precise refrigerant charging according to target superheat, subcooling and weight in combination with intelligent valve (sold separately)
- All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App
- Particularly handy thanks to compact housing, low weight, practical carrying handle and sturdy plastic bag
Use a Testo manifold and the Testo Smart App on your smartphone/tablet for operation and measured value display after the scale has automatically connected to both via Bluetooth. Especially practical: with the scale and the separately available intelligent valve, you can charge refrigeration systems and heat pumps automatically and precisely.
FEATURES AND CAPABILITIES
With the NEW Testo 560i wireless refrigerant scale, you can measure refrigerant weight quickly, precisely and conveniently.
- 100 kg capacity
- Operation and display of measured values are completely wireless using a Testo manifold and the testo Smart App. For this purpose, the scale automatically connects via Bluetooth with a manifold and a smartphone or tablet
- Versatile in all situations: Bluetooth range of up to 30 m – together with a Testo manifold even up to 150 m
- And best of all: with the separately available intelligent valve, you can charge refrigeration systems and heat pumps fully automatically according to target refrigerant weight, superheat or subcooling
- Compatible with digital manifolds testo 557s/550s/550i as well as testo 557 /550, Smart Probes testo 115i/ 549i/605i, testo Smart App for Android and iOS
Advantages of the testo 560i refrigerant scale
- High measurement accuracy with resolution 10 g and output in kg
- Maximum load of 100 kg for all common refrigerant containers
- High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 30 m)
- Safe handling: 3D corners for accurate positioning of the refrigerant container and textured rubber surface for stable grip
- High robustness due to dust and splash water protection (IP44)
- Especially handy thanks to compact housing, low weight, practical carrying handle and sturdy shoulder bag
- Long battery life of up to 70 hours thanks to replaceable AA batteries and auto power-off function
- High flexibility in outdoor use at temperatures from -10 to 50° C

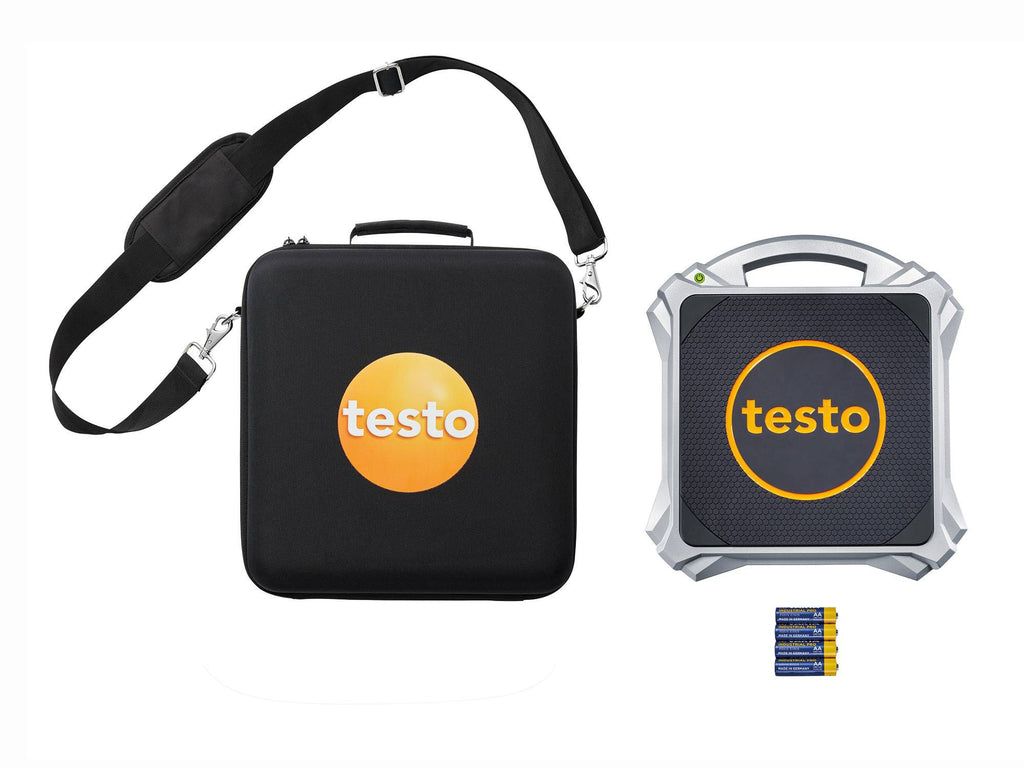

WHAT'S INCLUDED
- Testo 560i digital refrigerant scale with Bluetooth
- 4 x batteries (AA), 1 x 9 V (6LR61) battery
- Shoulder Bag
- Instruction manual
Also available in a kit: Testo 560i Digital Refrigerant Scale Kit with Bluetooth and Intelligent Valve - 0564 2560
SPECIFICATIONS
| testo 560i |
| Measuring range |
0 to 100 kg |
Accuracy
|
Operating temperature +22 °C:
≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg)
≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg) |
| Reolution |
0.01 kg |
| Ambient humidity |
0 to 80 %RH |
| General Technical Data |
| Operating temperature |
-10 °C to +50 °C / +14 °F to +122 °F |
| Storage temperature |
-10 °C to +50 °C / +14 °F to +122 °F |
| Protection Class |
IP44 |
| Connection |
Bluetooth 4.2 |
| Bluetooth® range |
>30 m free field |
| Battery Type |
4 AA alkaline batteries |
| Battery Life |
> 70 h at +25 °C |
| Dimensions |
310 x 287 x 58 mm (LxWxH) |
| Weight |
4.36 kg (incl. batteries and bag) |
