Testo 557s Smart Digital Manifold with Wireless Vacuum and Clamp Temperature Probes - 0564 5571
Testo 557s Smart Digital Manifold with Wireless Vacuum and Clamp Temperature Probes - 0564 5571
Testo 557s Smart Digital Manifold with Wireless Vacuum and Clamp Temperature Probes - 0564 5571
Testo 557s Smart Digital Manifold with Wireless Vacuum and Clamp Temperature Probes - 0564 5571
Testo 557s Smart Digital Manifold with Wireless Vacuum and Clamp Temperature Probes - 0564 5571
  • SKU: 0564 5571

Testo 557s Smart Digital Manifold with Wireless Vacuum and Clamp Temperature Probes - 0564 5571

$1,140.13
GST included.
DESCRIPTION

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

The testo 557s digital manifold with 4-way valve block enables you to carry out your measurements on refrigeration and air conditioning systems and heat pumps particularly fast.

The large display also helps you to evaluate the results in graphic form. Stored programs guide you through the measurement and enable the automatic determination of numerous important system parameters such as superheat, pressure drop test or evacuation.

Thanks to the testo 552i Bluetooth vacuum probe included in the kit, the testo 557, as the first manifold ever, makes wireless vacuum measurement possible.

Bluetooth probes for temperature, pressure and humidity can be easily connected directly to the instrument and offer maximum flexibility in their application.

In conjunction with the testo Smart App, you can take care of digital documentation directly on site. In addition to this, you always have the current refrigerants available to you and can set your favourites and transfer them to the instrument. Its proven quality and great durability guarantee the continuously high performance of your manifold in all conditions.



FEATURES AND CAPABILITIES

  • 90 built-in refrigerants
  • -1 to 60 Bar Pressure
  • 4-way valve block with four connections (3 x 7/16" – UNF + 1 x 5/8'' – UNF)
  • Compact, easy-to-handle, robust housing with IP 54 protection class
  • External vacuum probe for faster and more reliable evacuation of the system
  • Wireless temperature and vacuum measurements via automatic Bluetooth connection
  • Measures high side / low side pressures and temperatures
  • Guided measurement menus for target superheat, vacuum and pressure loss
  • On-site monitoring and documentation via testo Smart App
  • Large graphic display to evaluate results in graphic form
  • 90 selectable refrigerants in the instrument
  • Refrigerant management in the App with favourites and automatic updates

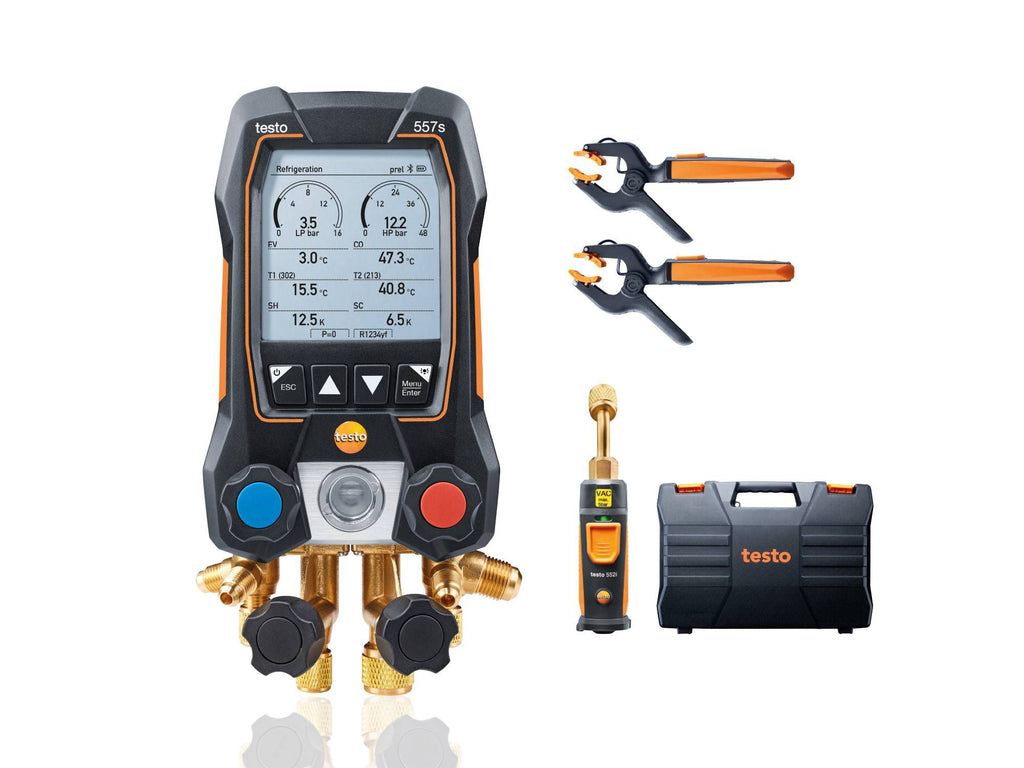

WHAT'S INCLUDED?

 In this Testo 557s Smart Vacuum Kit, you will receive the following:

  • Testo 557s Smart digital 4-way manifold
  • 1 x Testo 552i wireless Bluetooth vacuum probe
  • 2 x Testo 115i wireless Bluetooth clamp temperature probe
  • Protective Case
  • Batteries
  • Testo Smart App (free download)
  • Certificate of conformity and user's manual

Also available with filling hoses. Please go to: Testo 557s Smart Vacuum Kit with filling hoses 0564 5572



SPECIFICATIONS

Testo 557s Temperature Pressure
Measuring range -50 to +150 °C -1 to 60 bar
Accuracy ±0.5 °C ±0.5 % fs
Resolution 0.1 °C 0.01 bar
Probe connection 2 x Plug-in (NTC) 3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (high pressure)  - 65 bar



General Technical Data
Operating temperature -20 to +50 °C
Storage temperature -20 to +60 °C
Protection class IP54
Product colour Black
Auto-off 10 min*
Battery type 4 x type AA batteries
Battery life 250 h with no illumination, no Bluetooth®h (without illumination, without Bluetooth®, without vacuum probe); 100 h with illumination and Bluetooth®
Radio range 150 m
Pressure media CFC
Refrigerants in instrument R1234yf; R744 (CO₂); R437A; R503; R452A; R500; R114; R444B; R407H; R422B; R434A; R410A; R290; R449A; R401B; R407F; R13; R123; R718 (H₂O); R404A; R125; R416A; R421B; R422C; R448A; R22; R407A; R409A; R12; R454B; R414B; R442A; R1233zd; R420A; R424A; R458A; R427A; R450A; R124; R502; R1234ze; R600a; R23; R402B; R455A; R454A; R407C; R453a; R513A; R401A; R422D; R402A; R507; R454C; R408A; R421A; R134a; R32; R452B; R438A
System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Refrigerants update via App R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Bluetooth technology/ range Bluetooth® 5.0/150 m
Compatibility requires iOS 11.0 or newer/Android 6.0 or newer
requires mobile terminal device with Bluetooth® 4.0
Dimensions 229 x 112.5 x 71 mm (LxWxH)
Weight 1243 g

  * when not connected via Bluetooth
