Testo 440 Hot Wire Set for Measurements in Ventilation Ducts - 0563 4400

Testo

0563 4400

Estimated Delivery Between and .

American express Apple pay Diners club Discover Facebook pay Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

The testo 440 combines the benefits of a compact handheld device with intuitive measurement menus and a comprehensive selection of air velocity & IAQ probes. This
means you have all measuring tasks on air conditioning and ventilation systems reliably under control.

  • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature in ventilation ducts
  • Convenient: integrated telescope that can be extended to 0.85 m, with scaling, makes it easy to carry out measurements
  • Reliable: absolute pressure compensation, internal data storage and USB port for data export
  • As multifaceted as your challenges themselves: the air velocity and IAQ measuring instrument can be expanded with a large portfolio of digital probes

With the testo 440 hot wire kit, all IAQ-related parameters in ventilation ducts can be measured and documented. The testo 440 air velocity & IAQ measuring instrument recognizes probes automatically, and its structured measurement menus simplify the adjustment of air conditioning and ventilation systems. Up to 3 probes can be connected simultaneously to the measuring instrument: a Bluetooth® probe, a wired probe and a temperature probe with Type K thermocouple connector.

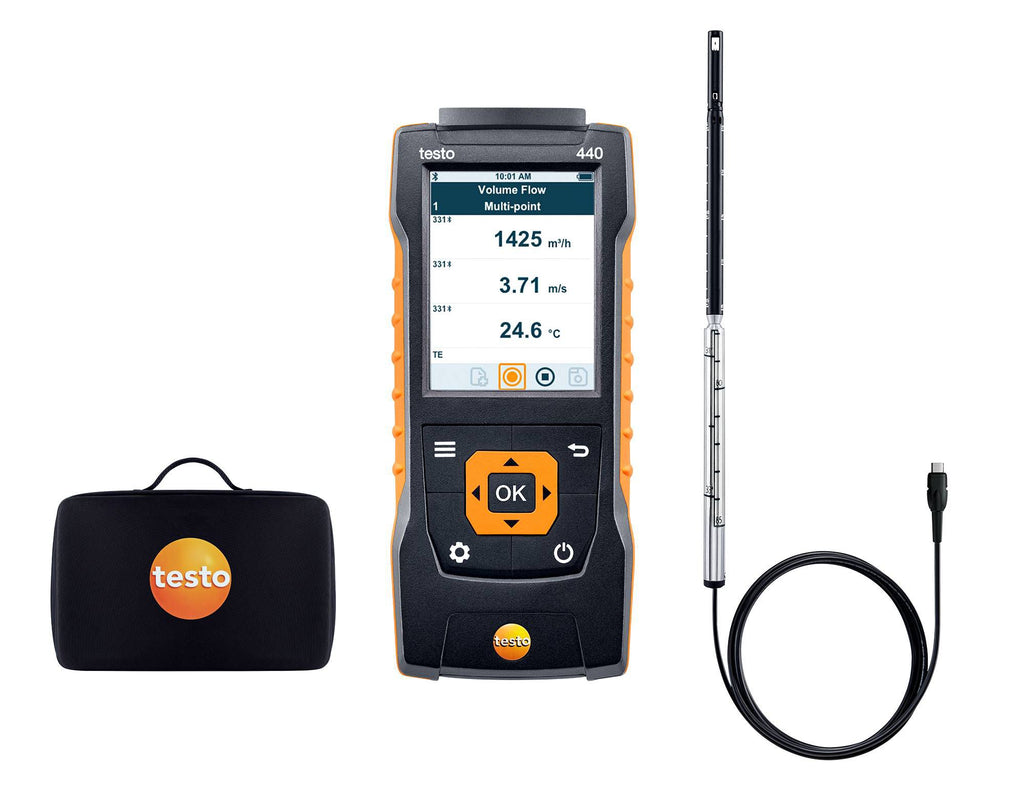

Kit for carrying out measurements in ventilation ducts: the testo 440 air velocity and IAQ measuring instrument and the hot wire probe (Ø 9 mm) including temperature sensor are all safely stowed away in the case. So you can get down to work straight away!

FEATURES AND CAPABILITIES

testo 440 - Air velocity and IAQ measuring instrument

testo 440 Brochure
  • Intuitive: clearly structured measurement menus for volume flow, degree of turbulence, cooling/heating output, mould detection and long-term measurement, such as CO₂
  • Wireless: Bluetooth® probes for extra convenience when measuring and less cable clutter in the measuring case (please order probes separately)
  • Clear overview: large graphic display with parallel display of 3 readings
  • Safe and reliable: internal data storage and USB port for data export

Hot wire probe (digital) - including temperature sensor, wired

  • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature
  • Precise: automatic absolute pressure compensation guarantees accurate measurement results
  • Convenient: integrated telescope that can be extended to 0.85 m, with scaling, makes it easy to measure in any cross-section
  • Intelligent calibration concept

APPLICATIONS

Ideal for the following applications:

  • Convenience and maximum flexibility for duct and outlet measurements
  • Long-term monitoring of indoor air quality
  • Turbulence measurement in accordance with EN ISO 7730 / ASHRAE 55
  • Range of probes for cleanrooms and laboratories

WHAT'S INCLUDED?

In this Testo 440 Hot Wire Kit, you will receive the following:

  • testo 440 air velocity and IAQ measuring instrument, 3 x AA batteries, USB cable and calibration protocol
  • Hot wire probe (Ø 9 mm) with fixed cable (length 1.7 m) including temperature sensor, with telescope (can be extended to 0.85 m) and calibration protocol (0635 1032)
  • Basic case for testo 440 and 1 probe

SPECIFICATIONS

Sensor - testo 440
  Temperature - NTC Temperature - TC Type K (NiCr-Ni)
Measuring range -40 to +150 °C -200 to +1370 °C
Accuracy ±0.4 °C (-40 to -25.1 °C)
±0.3 °C (-25 to +74.9 °C)
±0.4 °C (+75 to +99.9 °C)
±0.5 % of mv (Remaining Range)
±(0.3 °C + 0.3 % of mv)
Resolution 0.1 °C 0.1 °C



Sensor - Hot wire probe (Ø 9 mm)
  Temperature - NTC Absolute Pressure Velocity - Hot wire
Measuring range -20 to +70 °C +700 to +1100 hPa 0 to 30 m/s
Accuracy ±0.5 °C ±3.0 hPa ±(0.03 m/s + 4 % of mv)
(0 to 20 m/s)
±(0.5 m/s + 5 % of mv)
(20.01 to 30 m/s)
Resolution 0.1 °C 0.1 hPa 0.01 m/s



General technical data
  testo 440 Hot wire probe (Ø 9 mm)
Data transmission Bluetooth®, USB interface
Operating temperature -20 to +50 °C -20 to +70 °C
Storage temperature -20 to +50 °C -20 to +70 °C
Probe head diameter   Ø 9 mm
Dimensions 154 x 65 x 32 mm 315 x 12 x 12 mm
Weight 250 g 90 g
