Testo 440 Air Flow Combo Set 2 with Two Vane Probes 100mm and 16mm - 0563 4407

Testo

0563 4407

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

With the testo 440 flow ComboKit 2 with Bluetooth®, all IAQ-related parameters at air vents and in ducts can be measured and documented wirelessly. The testo 440 air velocity & IAQ measuring instrument recognizes probes automatically, and its structured measurement menus simplify the adjustment of air conditioning and ventilation systems. Up to 3 probes can be connected simultaneously to the measuring instrument: a Bluetooth® probe, a wired probe and a temperature probe with Type K thermocouple connector.

  • Intuitive: Clearly structured measurement menus for volume flow and determination of air velocity, humidity, and temperature in ventilation ducts, or at ventilation outlets​
  • Smart: vane probe (Ø 16 mm) with telescope (0.85 m); combine the vane probe (Ø 100 mm) with Bluetooth with the telescope for ceiling outlets or the funnel set for plate outlets (please order separately) ​
  • Convenient: wireless probe, internal data storage and USB port for data export​
  • Versatile: Your testo 440 setup can be expanded with a large selection of digital probes

The testo 440 combines the benefits of a compact handheld device with intuitive measurement menus and a comprehensive selection of air velocity & IAQ probes. This means you have all measuring tasks on air conditioning and ventilation systems reliably under control.

Kit for carrying out measurements in ventilation ducts and at air outlets: The testo 440 air velocity and IAQ measuring instrument, the vane probe (Ø 100 mm) with Bluetooth® including temperature sensor and the vane probe (Ø 16 mm) are all safely stowed away in the case. So you can get down to work straight away!

FEATURES AND CAPABILITIES

testo 440 - Air velocity and IAQ measuring instrument

testo 440 Brochure
  • Intuitive: clearly structured measurement menus for volume flow, degree of turbulence, cooling/heating output, mould detection and long-term measurement, such as CO₂
  • Wireless: Bluetooth® probes for extra convenience when measuring and less cable clutter in the measuring case (please order probes separately)
  • Clear overview: large graphic display with parallel display of 3 readings
  • Safe and reliable: internal data storage and USB port for data export

Vane probe (Ø 100 mm, digital) - with Bluetooth® including temperature sensor

  • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature
  • Precise: get the right results in next to no time, even in turbulent air flow – using the optionally available funnel set and volume flow straightener
  • Convenient: Bluetooth connection between measuring instrument and probe, with a practical button on the handle for storing individual readings, convenient measurement at ceiling outlets with optional telescope (up to 1 m)
  • Intelligent calibration concept

Vane probe (Ø 16 mm, digital) - wired

  • Intuitive: parallel determination of air velocity, volume flow and humidity
  • Precise: accurate measurement results from +0.6 to +50 m/s
  • Convenient: integrated telescope that can be extended to 0.85 m, with scaling, makes it easy to measure in any cross-section
  • Intelligent calibration concept

Combi-case for testo 440 and multiple probes

  • Case for the testo 440 or testo 440 dP air velocity and IAQ measuring instrument
  • Dimensions: 516 x 135 x 256 mm (W x H x L)

APPLICATIONS

Ideal for the following applications:

  • Convenience and maximum flexibility for duct and outlet measurements
  • Long-term monitoring of indoor air quality
  • Turbulence measurement in accordance with EN ISO 7730 / ASHRAE 55
  • Range of probes for cleanrooms and laboratories

WHAT'S INCLUDED?

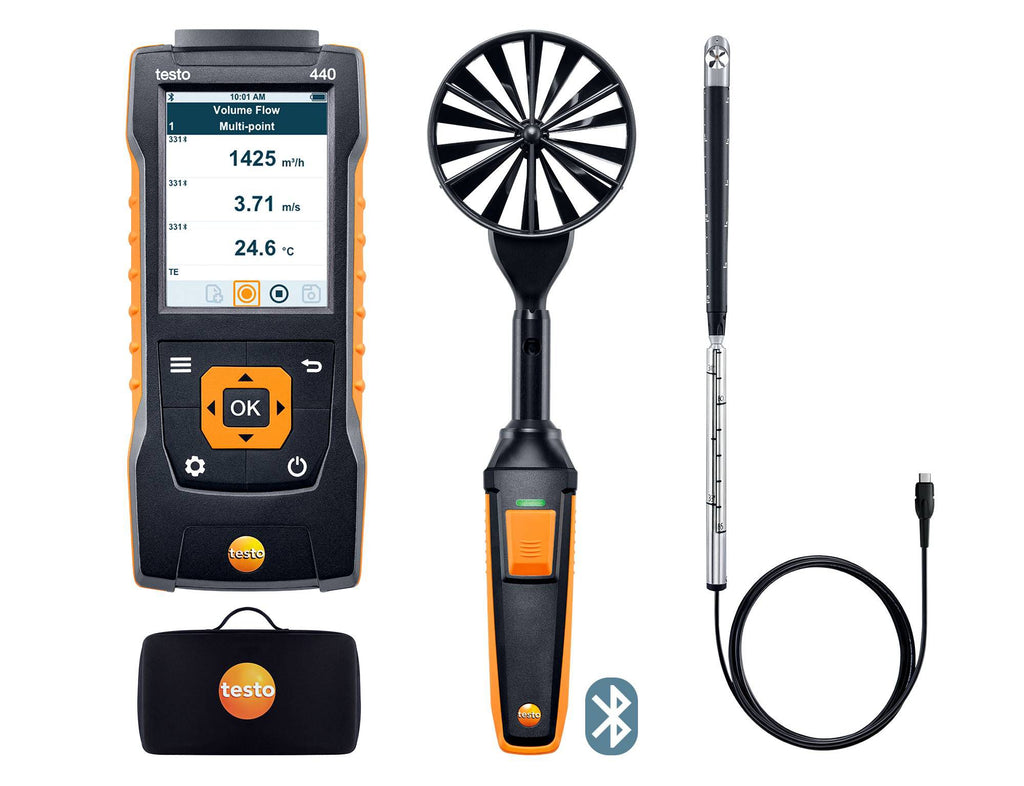

In this Testo 440 Air Flow Combo Kit 2 you will receive the following:

  • testo 440 air velocity and IAQ measuring instrument, 3 x AA batteries, USB cable and calibration protocol (0560 4401)
  • Vane probe (Ø 100 mm) with Bluetooth® including temperature sensor (consisting of 100 mm vane probe head, handle adapter and Bluetooth® handle); bracket for testovent measurement funnel, 4 x AA batteries and calibration protocol (0635 9431)
  • Vane probe (Ø 16 mm) with fixed cable (cable length 1.7 m), including telescope (can be extended to 0.85 m) and calibration protocol (0635 9532)
  • Combi-case for testo 440 and multiple probes (0516 4401)

SPECIFICATIONS

Sensor - testo 440
  Temperature - NTC Temperature - TC Type K (NiCr-Ni)
Measuring range -40 to +150 °C -200 to +1370 °C
Accuracy ±0.4 °C (-40 to -25.1 °C)
±0.3 °C (-25 to +74.9 °C)
±0.4 °C (+75 to +99.9 °C)
±0.5 % of mv (Remaining Range)
±(0.3 °C + 0.3 % of mv)
Resolution 0.1 °C 0.1 °C



Sensor - Vane probe (Ø 100 mm) with Bluetooth®
  Temperature - NTC Velocity / Volume flow
Measuring range -20 to +70 °C 0.3 to 35 m/s
Accuracy ±0.5 °C ±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s)
±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
Resolution 0.1 °C 0.01 m/s



Sensor - Vane probe (Ø 16 mm)
  Velocity / Volume flow
Measuring range 0.6 to 50 m/s
Accuracy ±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s)
±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
Resolution 0.1 m/s



General technical data
  testo 440 Vane probe (Ø 100 mm)
with Bluetooth®
Vane probe (Ø 16 mm)
Data transmission Bluetooth®, USB interface Bluetooth®, wireless range up to 20 m
Operating temperature -20 to +50 °C -20 to +70 °C -10 to +70 °C
Storage temperature -20 to +50 °C -20 to +70 °C -10 to +70 °C
Probe head diameter   Ø 100 mm Ø 16 mm
Dimensions 154 x 65 x 32 mm 375 x 105 x 46 mm 330 x 16 x 16 mm
Weight 250 g 360 g 150 g
