Testo 440 100 mm Vane Set with Bluetooth for Measurements at Air Vents - 0563 4403
Testo 440 100 mm Vane Set with Bluetooth for Measurements at Air Vents - 0563 4403
  • SKU: 0563 4403

Testo 440 100 mm Vane Set with Bluetooth for Measurements at Air Vents - 0563 4403

$1,729.43
GST included.
DESCRIPTION

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

The testo 440 combines the benefits of a compact handheld device with intuitive measurement menus and a comprehensive selection of air velocity & IAQ probes. This
means you have all measuring tasks on air conditioning and ventilation systems reliably under control.

  • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, humidity and temperature in ventilation ducts or at air outlets
  • Precise: combine the vane probe with Bluetooth with the telescope for ceiling outlets or the funnel set for plate outlets (please order separately) as required
  • Convenient: wireless probe, internal data storage and USB port for your data export
  • As multifaceted as your challenges themselves: the air velocity and IAQ measuring instrument can be expanded with a large portfolio of digital probes

With the testo 440 100 mm vane kit with Bluetooth®, all IAQ-related parameters at air vents can be measured and documented wirelessly. The testo 440 air velocity & IAQ measuring instrument recognizes probes automatically, and its structured measurement menus simplify the adjustment of air conditioning and ventilation systems. Up to 3 probes can be connected simultaneously to the measuring instrument: a Bluetooth® probe, a wired probe and a temperature probe with Type K thermocouple connector.

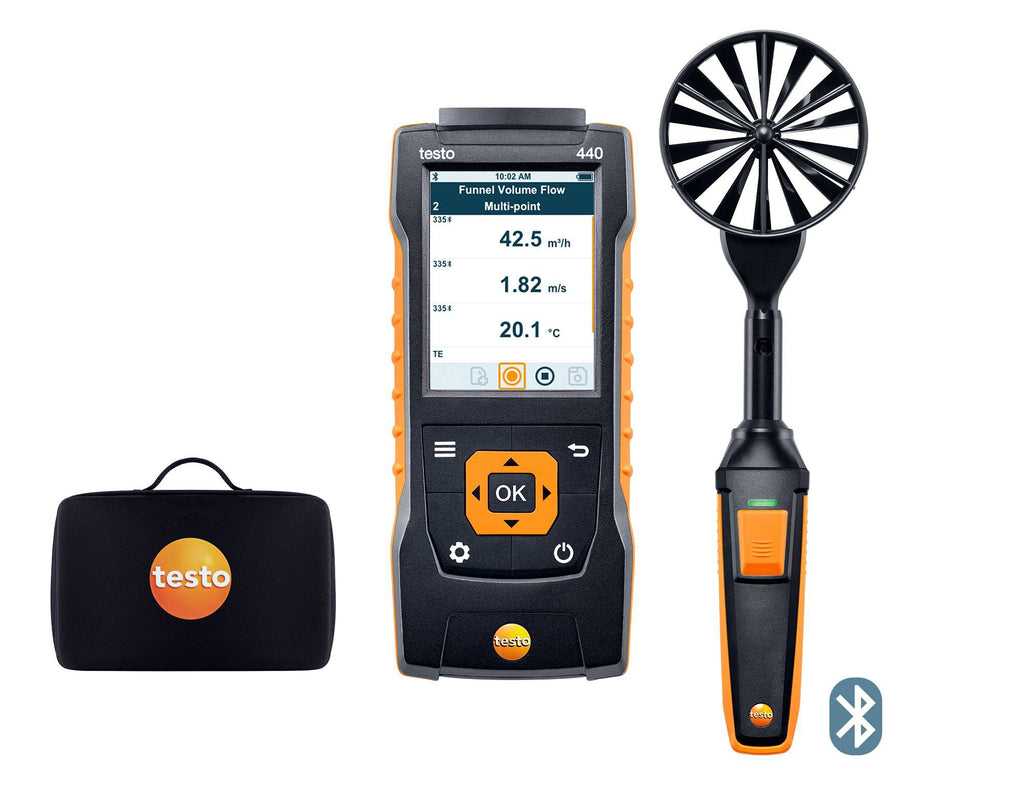

Kit for carrying out measurements at air outlets: the testo 440 air velocity and IAQ measuring instrument and the vane probe (Ø 100 mm) with Bluetooth® including temperature sensor are all safely stowed away in the case. So you can get down to work straight away!

FEATURES AND CAPABILITIES

testo 440 - Air velocity and IAQ measuring instrument

testo 440 Brochure
  • Intuitive: clearly structured measurement menus for volume flow, degree of turbulence, cooling/heating output, mould detection and long-term measurement, such as CO₂
  • Wireless: Bluetooth® probes for extra convenience when measuring and less cable clutter in the measuring case (please order probes separately)
  • Clear overview: large graphic display with parallel display of 3 readings
  • Safe and reliable: internal data storage and USB port for data export

Vane probe (Ø 100 mm, digital) - with Bluetooth® including temperature sensor

  • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature
  • Precise: get the right results in next to no time, even in turbulent air flow – using the optionally available funnel set and volume flow straightener
  • Convenient: Bluetooth connection between measuring instrument and probe, with a practical button on the handle for storing individual readings, convenient measurement at ceiling outlets with optional telescope (up to 1 m)
  • Intelligent calibration concept

APPLICATIONS

Ideal for the following applications:

  • Convenience and maximum flexibility for duct and outlet measurements
  • Long-term monitoring of indoor air quality
  • Turbulence measurement in accordance with EN ISO 7730 / ASHRAE 55
  • Range of probes for cleanrooms and laboratories

WHAT'S INCLUDED?

In this Testo 440 100 mm Vane Kit, you will receive the following:

  • testo 440 air velocity and IAQ measuring instrument, 3 x AA batteries, USB cable and calibration protocol (0560 4401)
  • Vane probe (Ø 100 mm) with Bluetooth® including temperature sensor (consisting of 100 mm vane probe head, handle adapter and Bluetooth® handle); bracket for testovent measurement funnel; 4 x AA batteries and calibration protocol (0635 9431)
  • Basic case for testo 440 and 1 probe

SPECIFICATIONS

Sensor - testo 440
  Temperature - NTC Temperature - TC Type K (NiCr-Ni)
Measuring range -40 to +150 °C -200 to +1370 °C
Accuracy ±0.4 °C (-40 to -25.1 °C)
±0.3 °C (-25 to +74.9 °C)
±0.4 °C (+75 to +99.9 °C)
±0.5 % of mv (Remaining Range)
±(0.3 °C + 0.3 % of mv)
Resolution 0.1 °C 0.1 °C



Sensor - Vane probe (Ø 100 mm) with Bluetooth®
  Temperature - NTC Velocity / Volume flow
Measuring range -20 to +70 °C 0.3 to 35 m/s
Accuracy ±0.5 °C ±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s)
±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
Resolution 0.1 °C 0.01 m/s



General technical data
  testo 440 Vane probe (Ø 100 mm)
with Bluetooth®
Data transmission Bluetooth®, USB interface Bluetooth®, wireless range up to 20 m
Operating temperature -20 to +50 °C -20 to +70 °C
Storage temperature -20 to +50 °C -20 to +70 °C
Probe head diameter   Ø 100 mm
Dimensions 154 x 65 x 32 mm 375 x 105 x 46 mm
Weight 250 g 360 g
