Testo 420 Air Flow Hood Kit Includes Hood - 0563 4200


0563 4200

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

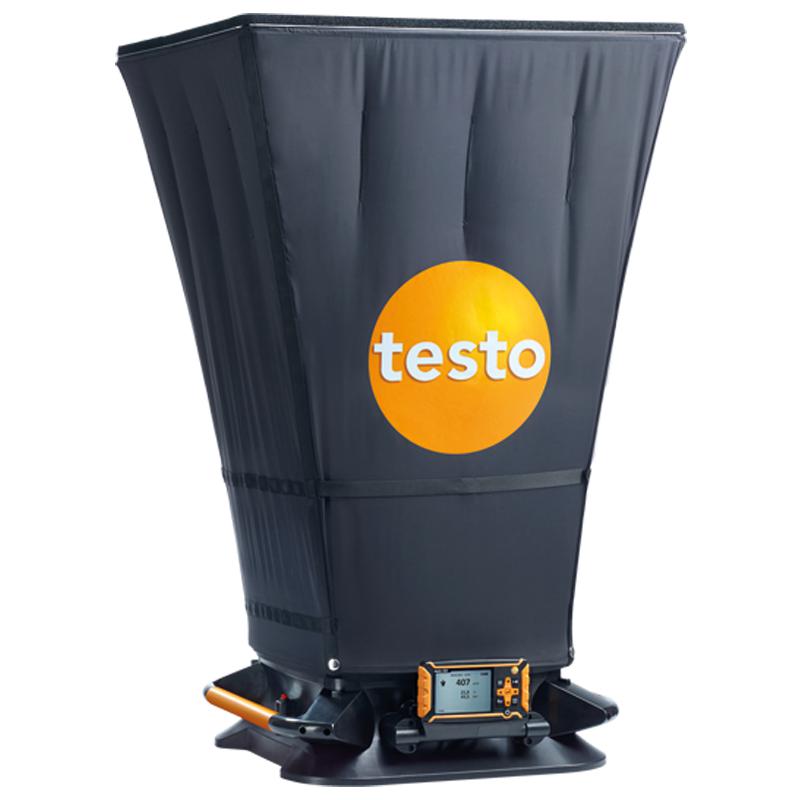

The Testo 420 volume flow hood is suited for HVAC systems and comes with a control panel for displaying measurement data. The control panel can be tilted or removed to suit user requirement.

The Testo 420 measuring instrument enables you to measure flow velocity, volume flow, absolute pressure, temperature and relative humidity. The automatic zeroing function ensures higher accuracy for low pressures.

All measuring values are easy to read on the large display which has an illumination function. For analysis and documentation, measurement data can be saved and measurement protocols can be created directly on site using the testo 420 App. In addition the measurement data can be easily accessed via PC without any additional software thanks to the plug & play function.

The Testo 420 volume flow hood with its integrated measuring instrument was not only developed to measure volume flow measurement. The measuring instrument can also be taken off the hood and used to measure pressure, flow and volume flow measurements in a duct. Simply attach a Pitot tube and connection hoses (both optional). With integrated, timed and multi-point mean calculation.


  • 16 measurement points that records Temperature, Humidity, Differential and Absolute Pressure
  • Highly precise readings at swirl outlets thanks to flow straightener
  • IOS & Andriod App Integration via Bluetooth connectivity
  • Onsite report generation & email

High measuring accuracy at swirl outlets thanks to volume flow straightener

Volume air flow is frequently measured at swirl outlets. Air flows are often incorrectly measured due to the turbulent air at these outlets.

The Testo 420 enables you to significantly reduce these measurement errors. The integrated volume flow straightener calms the turbulence and converts it into a virtually uniform air flow. This enables accurate calculation of volume flow in the 80 to 3,500 m3/h range.

Create protocols directly on site and E mail them using the Testo 420 App

Take advantage of further practical functions and download our free App. Because the App connection enables mobile devices such as smartphones and tablets to be used as a secondary display and as a remote control via Bluetooth.

The App enables live measurement on HVAC systems using a start and stop function and the saving of measurement data in txt format. You can create the measurement protocol directly on site using the App. Measurement results, such as the overall volume flow and the air exchange rate, can be directly assigned to customer-specific protocol templates. You can then send your readings and protocols via the e-mail function. This means you save a considerable amount of time and increase efficiency.


  • Testo 420 volume flow hood including measuring instrument
  • 610 x 610 mm hood
  • 5 x tension rods
  • USB cable
  • Batteries,
  • Trolley
  • Protocol certificate


Technical Data

Battery Type

Alkaline manganese, Type AA

Battery Life

40 h


Micro-USB; Bluetooth® 4.0 wireless technology

Operating Temperature

-5 To +50 ° C

Storage Temperature  -20 To +60 ° C


2 GB (internal)


2.9 Kg's

Instrument Sensor


Measuring Range



Response Time

Temperature - NTC

-20 To +70 ° C

± 0.5 ° C (0 to +70 ° C)
± 0.8 ° C (-20 to + 0 ° C)

0.1 ° C

45 s (t90)

Moisture - Capacitive

0 to 100% RH

± 1.8% RH + 3% v. Mw. at + 25 ° C
(5 to 80% RH)

0.1% RH


Differential Pressure

-120 To 120 Pa

± 2% v. Mw. + 0.5 Pa at +22 ° C, 1013 hPa

0,001 Pa

1 s (t90)

Absolute Pressure

700 to 1100 hPa

± 3 hPa

0.1 hPa

1 s


40-4000 m³ / h

± 3% v. Mw. + 12 m³ / h at +22 ° C
1013 hPa (85 to 3500 m³ / h)

1 s (t90)

1 m³ / h
