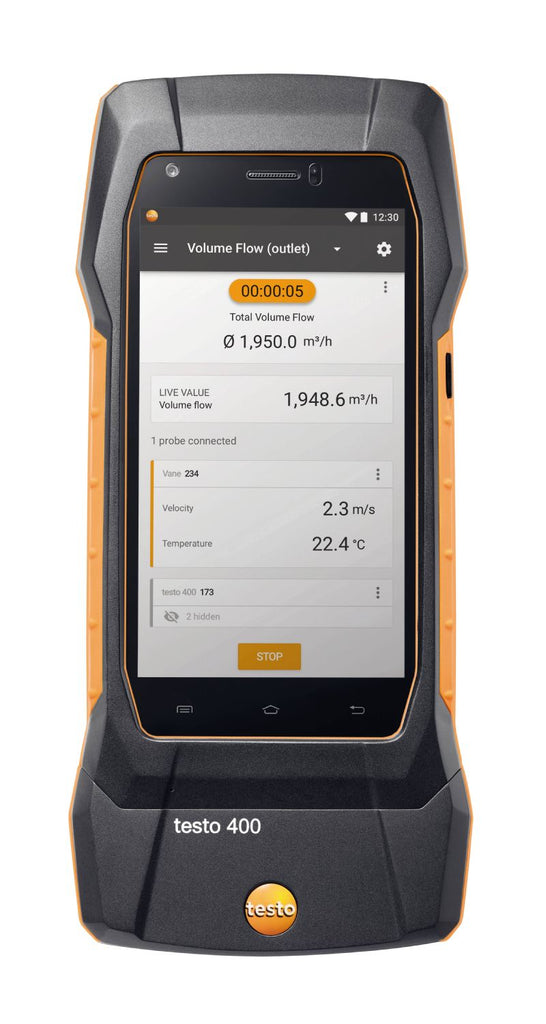

Testo 400 Universal Indoor Air Quality Instrument - 0560 0400

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

As an expert in the field of air conditioning and ventilation, you will find the Testo 400 universal IAQ measuring instrument ideal. Measure, analyze and document all IAQ and comfort level parameters (flow, temperature, humidity, pressure, illuminance, radiant heat, turbulence, CO₂ and CO) using just one instrument – simply, conveniently and in compliance with the standards.

The IAQ measuring instrument with a built-in measurement assistant provides optimum support for carrying out air flow and comfort level measurements in accordance with the standards, as well as for adjusting and inspecting air conditioning and ventilation systems.

High-quality measuring technology, intuitive measurement assistants, versatile documentation options and a comprehensive selection of IAQ probes make the Testo 400 the perfect partner for your day-to-day work.

FEATURES AND CAPABILITIES

• Measures all IAQ-related parameters (flow, temperature, humidity, pressure, illuminance, radiant heat, turbulence, CO₂ and CO) with a wide range of probes for all IAQ measurements
• Measuring Range:
• -100 to +200 hPa Differential pressure (integrated)
• 700 to +1100 hPa Absolute pressure (integrated)
• -40 to +150 °C Temperature NTC (with appropriate probe)
• -200 to +1370 °C Temperature TC type K (with appropriate probe)
• High-precision, location-independent and integrated differential pressure sensor
• Document measuring values directly on the customer's site and send them by e-mail, or further analyze them using the Testo DataControl PC software
• Smart, intuitive measurement programs including HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD and turbulence as per EN ISO 7730 and ASHRAE 55

WHAT'S INCLUDED?

• 1 x Testo 400 universal IAQ instrument
• Connection hose
• Mains unit with USB cable
• Transport case for air flow measurements
• Certificate of conformity and user's manual

The Testo 400 IAQ Instrument is also available in kits:

• Testo 400 Air Flow Kit with Hot Wire Probe - 0563 0400 71

• Testo 400 Air Flow Kit with 16mm Vane Probe - 0563 0400 72
• Testo 400 Indoor Air Quality and Comfort Kit with Tripod - 0563 0401

SPECIFICATIONS

• Storage Temperature: -20 to + 60°C
• Operating Temperature: -5 to +45 °C
• Power Supply: Rechargeable li-ion battery (5550 mAh)
• Battery Life: Approx. 10 hrs continuous operation
• Display: 5.0 inch HD touch display, 1280 x 720 px resolution
• Camera:
• Main camera: 8.0 MP
• Front camera: 5.0 MP
• Memory: 2 GB (corresponds to approx. 1,000,000 readings)
• Probe connections: 4x Bluetooth®, 2x TUC*, 2x TC type K
• Dimensions: 210 x 95 x 39 mm

Please view the Brochure to view technical data for the Testo 400 Universal Indoor Air Quality Instrument - 0560 0400
