Testo 400 IAQ Data Logger for long-term measurements - 0577 0400
Testo 400 IAQ Data Logger for long-term measurements - 0577 0400
  • SKU: 0577 0400

Testo 400 IAQ Data Logger for long-term measurements - 0577 0400

$1,946.03
GST included.
DESCRIPTION

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

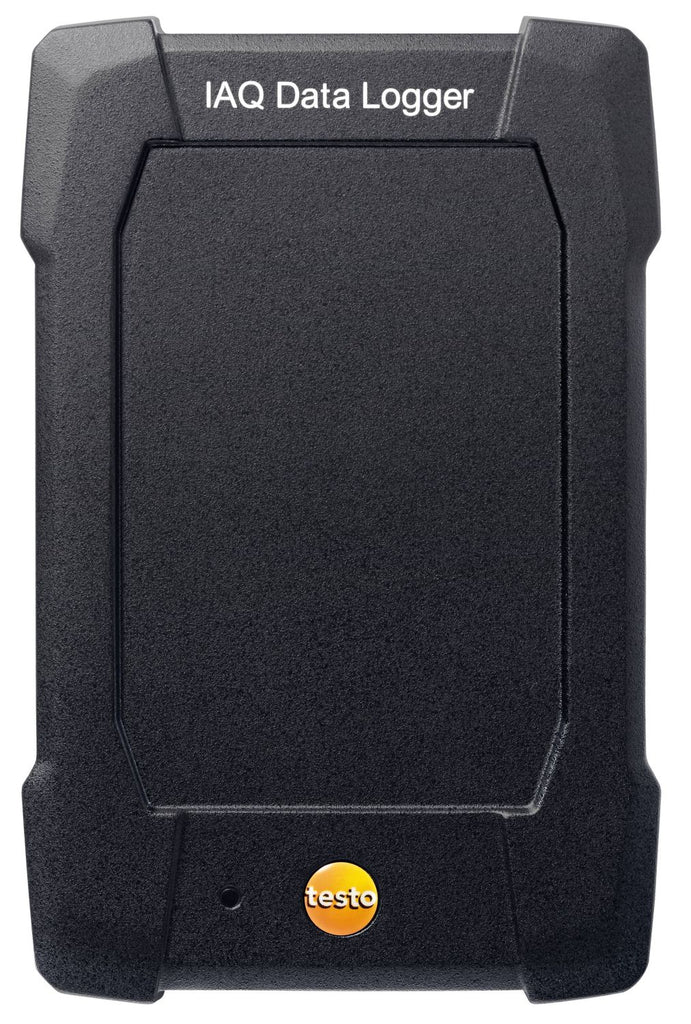

The IAQ data logger is ideal for carrying out long-term measurements of indoor air quality. Programming of measuring interval and measurement period of the stand-alone data logger is carried out via the Testo 400 universal IAQ instrument (please order separately). Once the IAQ measurement is completed, you can read out, analyze and document all the saved values with the Testo 400.

  • Data logger configurable via Testo 400 universal IAQ instrument
  • Compatible with probes for measuring the comfort level, turbulence, radiant heat, CO2, CO, illuminance, air flow velocity, humidity and temperature
  • Stand-alone data logger for long-term measurements up to 2 weeks
  • Connect up to six fixed cable probes at the same time
  • Practical tripod for mounting data logger and probes  as an accessory

Particularly useful: Since the data logger acts independently of the measuring instrument during the measurement, you can use the IAQ measuring instrument to carry out measurements elsewhere in the meantime.

Use the compatible probes (please order separately) to measure the comfort level, turbulence, radiant heat, CO2, CO, illuminance, air flow velocity, humidity and temperature. The IAQ data logger offers connection options for up to six fixed cable probes at the same time.

To install data loggers and probes, you can order an accessory in the form of a practical tripod.

FEATURES AND CAPABILITIES

Main applications of the IAQ data logger
In combination with the corresponding probes, the IAQ data logger is ideal for carrying out the following measurements:

  • PMV/PPD measurement in accordance with EN ISO 7730 / ASHRAE 55
  • Local discomfort level measurement in accordance with EN ISO 7730 / ASHRAE 55, e.g. draught rate and degree of turbulence at up to three positions at the same time
  • NET measurement in accordance with DIN 33403

A practical tripod is available as an accessory for mounting logger and probes.





WHAT'S INCLUDED?

  • 1 x IAQ data logger for long-term measurements, including mains unit with USB cable

Note: This meter uses a sensor to start up. Check the Brochure for available probes and accessories.



SPECIFICATIONS

Temperature NTC (with appropriate probe)
Measuring range -40 to +150 °C
Accuracy ±0.2 °C ±1 Digit (-25 to +74.9 °C)
±0.4 °C ±1 Digit (-40 to -25.1 °C)
±0.4 °C ±1 Digit (+75 to +99.9 °C)
±0.5 % of mv ±1 Digit (Remaining Range)
Resolution 0.1 °C



Temperature TC type K (with appropriate probe)
Measuring range -200 to +1370 °C
Accuracy ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution 0.1 °C



General technical data
Operating temperature -5 to +45 °C
Storage temperature -20 to +60 °C
Connectable probes 4 x digital probe with fixed cable or
NTC temperature probe with fixed cable
(via Testo Universal Connector - TUC);
2 x temperature probe TC type K with fixed cable
Cable length 1 m
Power supply External power supply via mains unit
Interface USB
Memory 360,000 measuring values; 1.5 MB
Product-/housing material Plastic
Protection class IP20
Product colour Black
Dimensions 136 x 89 x 39 mm (LxWxH)
Weight 162 g

*TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes.
