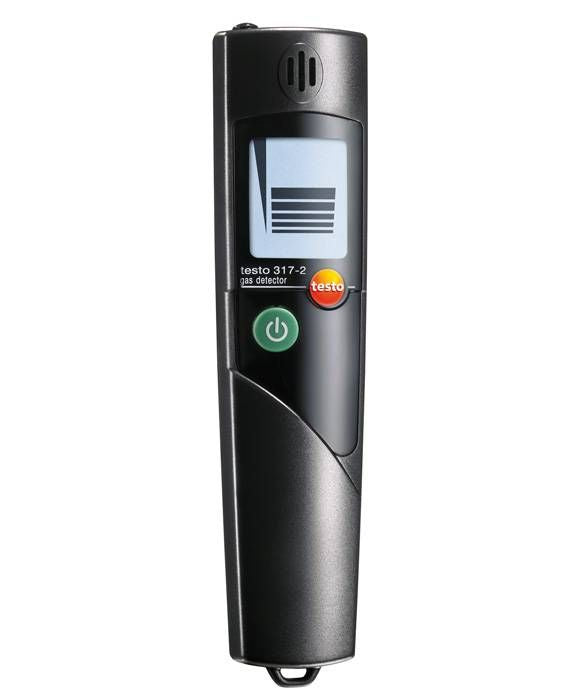

Testo 317-2 Methane and Propane Gas Leak Detector - 0632 3172

Testo

0632 3172

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

Do you want to test quickly and efficiently whether there is a gas leak on gas pipe connections? Let the reliable testo 317-2 Methane & Propane Detector support you in your task.

Highly practical gas leak detector for fast checks on gas pipe connections, with visual bar display.

FEATURES AND CAPABILITIES

  • Display of gas concentration via bar display
  • Self-test of sensor after switching on
  • Rising alarm tone with increasing gas concentration
  • Continuous tone when alarm threshold is exceeded
  • Audible confirmation of readiness to operate
  • Battery monitoring with optical display
Overview Testo gas leak detectors
Measuring
instrument
testo 317-2 testo 316-1 testo 316-2 testo gas detector testo 316-EX
  The convenient
gas leak detector
for beginners
The detector for
leaks in natural gas
pipes
The gas leak
detector with
integrated pump
for fast check
measurements
Gas detector Gas detector
with
EX-protection
Measuring range
     Methane 100 to
20.000 ppm CH4
100 to
10,000 ppm CH4
10 ppm to 4,0
Vol. % CH4
10 to 999 ppm CH4
0,1 to 4,4 Vol. % CH4
1 ppm to
2.5 Vol. % CH4
     Propane 50 to 10.000 C3H8 - 10 ppm to 1,9
Vol. % C3H8
10 to 999 ppm C3H8
0,1 to 1,9 Vol. % C3H8
1 ppm to
1.0 Vol. % C3H8
     Hydrogen - - 10 ppm to 4,0
Vol. % H2
10 to 999 ppm H2
0,1 to 4,0 Vol. % H2
1 ppm to
2.0 Vol. % H2
Lower response
thresholds
100 ppm CH4
50 C3H8
100 ppm 10 ppm 10 ppm -
1st alarm limit 10.000 ppm CH4
5000 C3H8
(20% LEL)
from 200 ppm CH4
(LED yellow)
200 ppm CH4
100 ppm C3H8
200 ppm H2
- -
2nd alarm limit - from 10.000 ppm CH4
(LED red)
10.000 ppm CH4
5.000 ppm C3H8
10.000 ppm H2
- -
Resolution  - - - 1 ppm / 0,1 Vol. % 1 ppm / 0,1 Vol. %
Display 8 segment trend
display
LED (3 colour) 18 segment bar
display
ppm display -
Battery life 4 h (LR03) > 5 h 6 h > 8 h to 10 h
Other features audible signal Semi-conductor
sensor
Earphone socket · extendable probe
· Inherently safe
sensor according to
DMT
Protection class
IP54
EU guideline
94/9/EG (ATEX)
2004/108/EG
EX-protection II 2G
EEx ib IIC T1 (Ex
Zone 1)

WHAT'S INCLUDED?

  • Testo 317-2 gas leak detector
  • Carrying bag with belt clip
  • Wrist strap
  • Battery

SPECIFICATIONS

Sensor
  Methane (CH₄) Propane (C₃H₈)
Measuring range 100 to 20000 ppm 50 to 10000 ppm
Lower response threshold 100 ppm 50 ppm
1st alarm limit 10000 ppm (20% LEL) 5000 ppm (20% LEL)



General technical data
Reaction time t₉₀ < 5 s
Operating temperature -5 to +45 °C
Storage temperature -20 to +50 °C
Heat up time 60 s
Battery type 2 batteries type micro AAA 1.5 V (LR03)
Battery life 4 h (LR03)
Display type 8 segment trend display
Storage temperature -20 to +50 °C
Weight < 300 g
