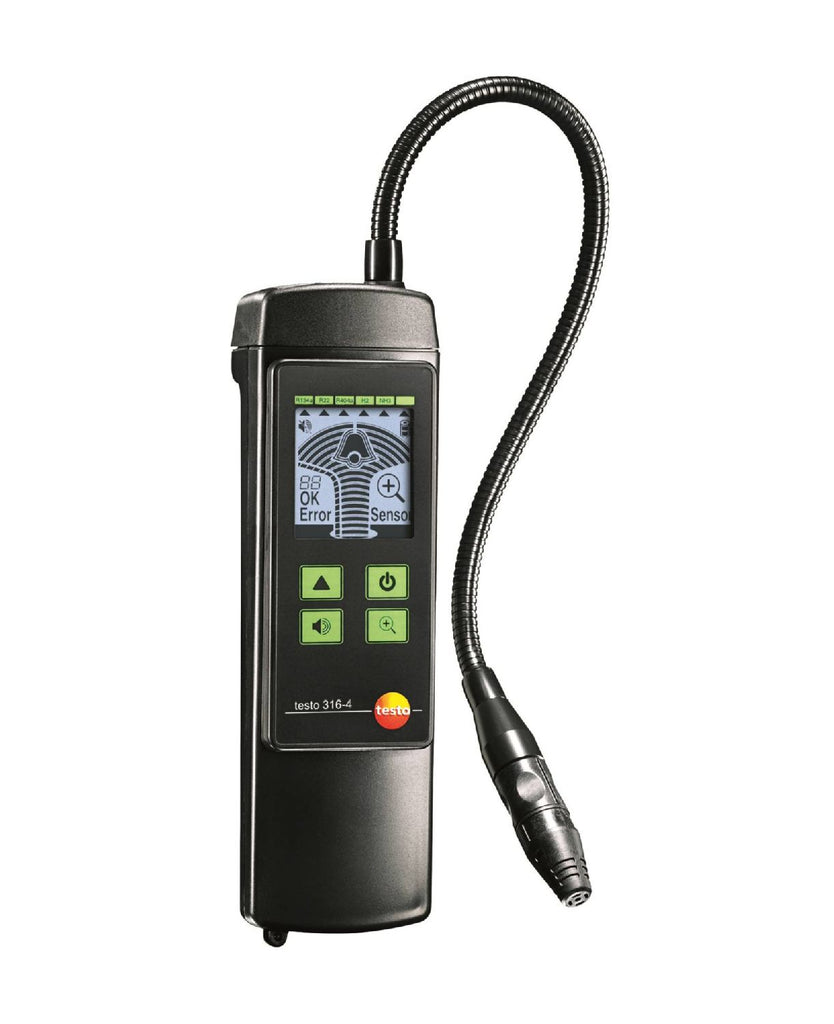

Testo 316-4 Refrigeration Leak Detector for Amonia Set 2 - 0563 3165
Testo 316-4 Refrigeration Leak Detector for Amonia Set 2 - 0563 3165
  • SKU: 0563 3165

Testo 316-4 Refrigeration Leak Detector for Amonia Set 2 - 0563 3165

GST included.

    For refrigeration systems that operate with ammonia, there is the testo 316-4 set 2 specially for ammonia, or the replacement ammonia head (NH3) for the testo 316-4 set 1.

    Everything you need for professional leakage detection: the testo 316-4 set 2 with leak detector for all common refrigerants NH3,CFC, HFC, HCFC and H2, including refrigerant sensor head, case, mains unit and earphones. You will therefore be ideally equipped to carry out quick, reliable leakage detection.

    Leaks on a refrigeration system or heat pump have serious consequences. The system no longer provides the required cooling capacity and, in the worst-case scenario, system components can be damaged. Not to mention the environmental damage and the costs incurred by your customer. You need fast, reliable measuring instruments such as the testo 316-4 leak detector in order to be able to detect even the smallest of leaks.

    • Extremely high sensitivity of ˂3g/a enables detection of even the smallest leaks
    • Permanent sensor check, ensuring that your work is both safe and fast
    • Visual and acoustic alarm for optimum leakage detection
    • Earplug connection for safe leakage detection in loud environments


    Advantages of the testo 316-4 set 2 leak detector

    Ideal for ammonia: the testo 316-4 leak detector (set 2) is a fast, reliable leak detector for ammonia.

    Practical sensor technology: the leak detector's sensor is permanently monitored and displays malfunctions or contaminations on the screen. The use of test leaks is therefore no longer necessary. If dirty, the sensor can be easily cleaned and is then ready for use again straight away. Moreover, thanks to its flexible gooseneck, the sensor can be positioned close to the pipework or the measuring location.

    High sensitivity: its extremely high sensitivity of ˂3g/a in accordance with EN 14624 enables reliable detection of even the smallest leaks. The drag pointer function indicates maximum leakages, making it easier to locate leaks.

    Reliable warning functions: if a leak is found, the display changes from green to red. An audible signal also indicates that a leak has been detected. The earphones included in the set also enable the testo 316-4-2 leak detector to be used in loud environments.


    • Very high sensitivity of < 3g/a allows the detection of the smallest leaks
    • Very long sensor life
    • Permanent sensor check for fast and safe work
    • Optical and audible alarm for optimum leakage detection
    • Earphone connection for secure leakage detection in loud surroundings
    • Trend display shows maximum leakages


    • Testo 316-4-2
    • Amonia sensor head
    • Case
    • Mains unit
    • Earphones


    • Detectable: R134a; R22; R404A; H₂ and all common refrigerants such as CFC, HCFC, HFC NH₃ (separate sensor head)
    • Sensitivity: 3 g/a
    • Start-up time: < 50 s (0 ... +50 °C); < 80 s (-20 ... 0 °C)
    • Leakage alarm: optical and audible alarm
    • Alarm function: Optical; audible
    • Length of gooseneck: 370 mm
    • Operating humidity: 20 to 80 %RH
    • Operating temperature: -20 to +50 °C
    • Storage temperature: -25 to +70 °C
    • Battery type: 1 battery block (6 cells NiMh)
    • Battery life: 6 h (Continuous operation)
