Testo 316-1 Methane Gas Leak Detector - 0632 0316

Testo

0632 0316

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

Hairline cracks in pipes, old and worn out gaskets. Even the tiniest of gas leaks in a natural gas pipe can cause enormous problems. The Testo 316-1 natural gas leak detector will help you pinpoint the exact position of a leak when the leak has already been detected using a leak measuring device, for example.

Quick and reliable detection of gas leaks in natural gas pipes. The Testo 316-1 natural gas leak detector with two-stage visual alarm system is ideal for carrying out gas checks.

FEATURES AND CAPABILITIES

  • Flexible measurement probe for inaccessible pipes
  • Audible & Visual alarm if limit value is exceeded
  • Quick responsive sensor
  • Optical alarm
  • Easy to use

The testo 316-1 gas leak detector. The sure and easy way to detect methane gas.

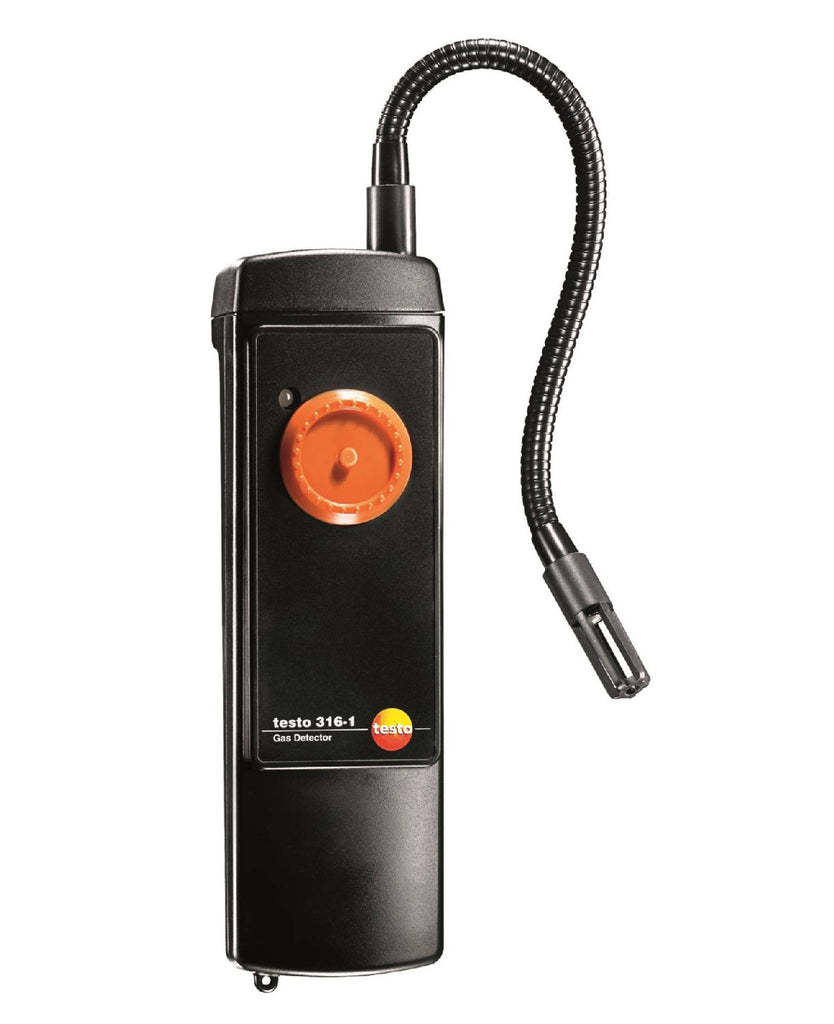

The Testo 316-1 is an especially easy-to-use gas leak detector with an adjustable sensitivity dial. The leak detector is equipped with both a visual audible and an alarm. A yellow LED lights up when the reading is higher than 200 ppm CH4. The LED changes to red when the reading is higher than 10,000 ppm CH4. This special feature allows you to pinpoint the exact position of the leak. The testo 316-1 is also equipped with a flexible gooseneck sensor for locating gas leaks in especially hard-to-reach or otherwise inaccessible places.



Overview Testo gas leak detectors
Measuring
instrument
testo 317-2 testo 316-1 testo 316-2 testo gas detector testo 316-EX
  The convenient
gas leak detector
for beginners
The detector for
leaks in natural gas
pipes
The gas leak
detector with
integrated pump
for fast check
measurements
Gas detector Gas detector
with
EX-protection
Measuring range
     Methane 100 to
20.000 ppm CH4
100 to
10,000 ppm CH4
10 ppm to 4,0
Vol. % CH4
10 to 999 ppm CH4
0,1 to 4,4 Vol. % CH4
1 ppm to
2.5 Vol. % CH4
     Propane 50 to 10.000 C3H8 - 10 ppm to 1,9
Vol. % C3H8
10 to 999 ppm C3H8
0,1 to 1,9 Vol. % C3H8
1 ppm to
1.0 Vol. % C3H8
     Hydrogen - - 10 ppm to 4,0
Vol. % H2
10 to 999 ppm H2
0,1 to 4,0 Vol. % H2
1 ppm to
2.0 Vol. % H2
Lower response
thresholds
100 ppm CH4
50 C3H8
100 ppm 10 ppm 10 ppm -
1st alarm limit 10.000 ppm CH4
5000 C3H8
(20% LEL)
from 200 ppm CH4
(LED yellow)
200 ppm CH4
100 ppm C3H8
200 ppm H2
- -
2nd alarm limit - from 10.000 ppm CH4
(LED red)
10.000 ppm CH4
5.000 ppm C3H8
10.000 ppm H2
- -
Resolution  - - - 1 ppm / 0,1 Vol. % 1 ppm / 0,1 Vol. %
Display 8 segment trend
display
LED (3 colour) 18 segment bar
display
ppm display -
Battery life 4 h (LR03) > 5 h 6 h > 8 h to 10 h
Other features audible signal Semi-conductor
sensor
Earphone socket · extendable probe
· Inherently safe
sensor according to
DMT
Protection class
IP54
EU guideline
94/9/EG (ATEX)
2004/108/EG
EX-protection II 2G
EEx ib IIC T1 (Ex
Zone 1)

WHAT'S INCLUDED?

  • Testo 316-1 electronic gas leak detector
  • Battery

SPECIFICATIONS

Sensor
  Methane (CH₄)
Measuring range 100 to 10000 ppm CH₄
Lower response threshold 100 ppm
1st alarm limit 200 ppm CH₄ (LED yellow)
2nd alarm limit 10000 ppm CH₄ (LED red)



General technical data
Operating humidity 0 to 95 %RH
Storage temperature -20 to +50 °C
Reaction time t₉₀ < 5 s
Operating temperature +4 to +45 °C
Heat up time 30 s
Battery type 9V block battery
Battery life > 5 h
Weight 300 g
Dimensions 190 x 57 x 42 mm (without sensors)
