Testo 184 G1 USB Data Logger Humidity, Temperature and Shock 0572 1846
  • SKU: 0572 1846

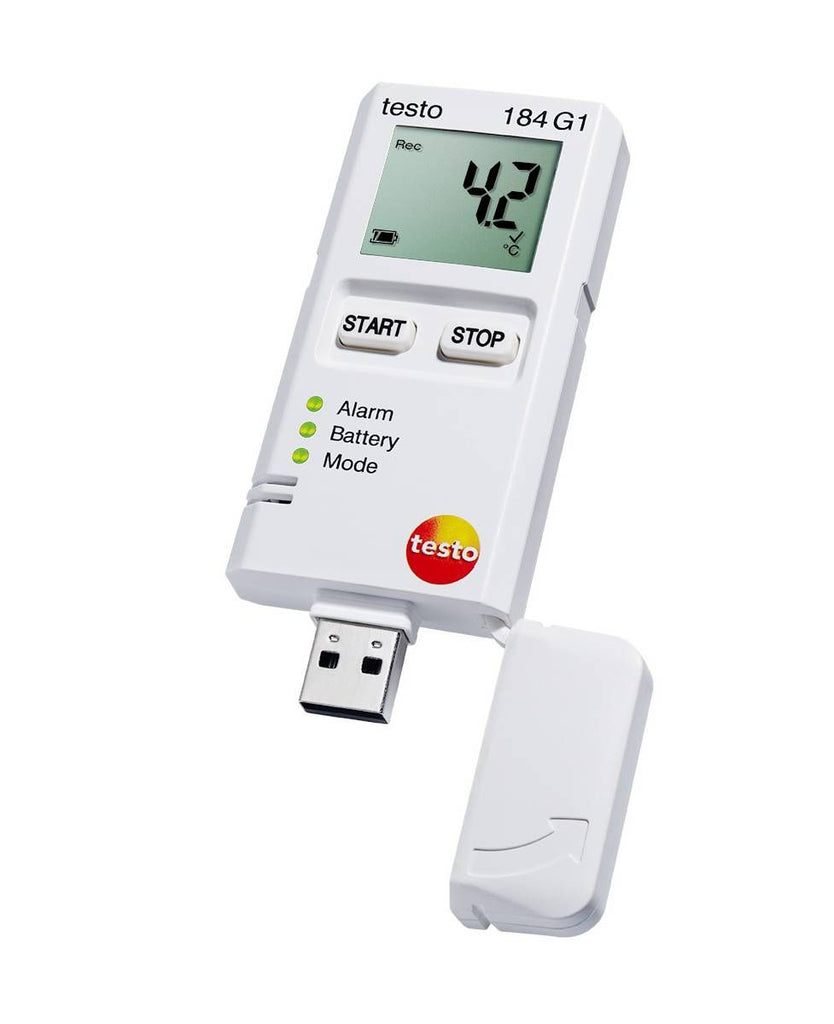

Testo 184 G1 USB Data Logger Humidity, Temperature and Shock 0572 1846

$487.05
GST included.
    DESCRIPTION

    TESTO 184 G1 VIBRATION, HUMIDITY AND TEMPERATURE DATA LOGGER FOR TRANSPORT MONITORING

    DOWNLOAD BROCHURE

    The data logger testo 184 G1 is designed specifically for the monitoring of shock, relative humidity and temperature during transportation. In addition to the precise temperature

    and humidity measurement, a 3-axle acceleration sensor measures any vibrations which occur.

    With the data loggers testo 184 G1 for shock, humidity and temperature, you can now monitor the transport of sensitive products such as electronics, art, pharmaceuticals or foods over an unlimited operating time. More info on applications (link to tab Applications)

    At their destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 G1: Configuration file, instruction manual and PDF report of your recorded data.

    The measurement value store of the data logger testo 184 G1 for shock has a capacity of 1000 measurement values, for humidity and temperature 64000 measurement values. The measurement rate is freely selectable from 1 min to 24 h. The battery has a life of 120 days. The temperature data logger testo 184 G1 is supplied by a standard battery which can be exchanged by the user.

    Testo 184 G1 is compliant with GxP, 21 CFR Part 11 and HACCP. Testo AG is an ISO 9001:2008-certified company and ensures adherence to the norms through internal audits as well as accredited external audits.



    FEATURES AND CAPABILITIES

    • All in one data logger: PDF measurement data, configuration file and instruction manual
    • Unlimited operating time
    • Immediate creation of a PDF report directly after connection to a computer
    • Transport monitoring in compliance with GxP, 21 CFR Part 11 and HACCP



    All advantages at a glance:
    1. Clear alarm indication: A glance at the display or the LEDs is enough to know whether limit values have been violated during transport.

    2. Easiest operation: testo 184 G1 is intuitively operated, and can be used without special training or previous knowledge: The "Start" button begins data recording. "Stop" ends it.


    3. Easiest configuration: In each testo 184 G1, a configuration file is stored, with which the configuration of the testo 184 G1 is childsplay – no download, no installation, no user interface and no additional costs.

    4. Convenient readout: A PDF report with the transport data is created immediately on connection of the testo 184 G1 data logger to the USB interface of a computer. This is suitable for long-term archiving according to PDF/A standard.


    5. Mobile readout/printout on site: Data transfer from the data logger to a compatible Testo fast printer (option) also functions wirelessly via NFC.

    6. IT-safe: The testo 184 G1 data loggers work securely without software installation or download, so that IT problems are triggered neither by the firewall nor the virus scanner.



    APPLICATIONS

    Ideal for the following APPLICATION

    • Monitoring and documentation of temperature, humidity and shock in food, pharmaceutical, or any kind of logistical services.




    WHAT'S INCLUDED

    • Data logger for shock, humidity and temperature testo 184 G1 for transport monitoring
    • Battery
    • Wall bracket



    SPECIFICATIONS

    Sensor
    Measurement
    parameter
    Temperature Humidity Vibration
    Sensor Type  NTC Capacitive Shock
    Measuring range -20 to +70 °C 0 to 100 %RH 0 to 27 g
    0 to 265 m/s²
    Accuracy ±0.5 °C (0 to +70 °C)
    ±0.8 °C (-20 to 0 °C)
    ±2 %RH at +25 °C (20 to 80 %RH)
    ±3 %RH at +25 °C (< 20 and > 80 %RH)
    ±1 %rF Hysterese
    ±1 %rF/year Drift
    ±(0.1 g + 5 % of mv)
    ±1 / 1 / 1 m/s²
    Resolution 0.1 °C 0.1 %RH 0.1 g
    1 m/s²
    Reaction time t₉₀ = 30 min
    Measuring rate 1 min to 24 h 1 min to 24 h 1 s



    General technical data
    Operating temperature -20 to +70 °C
    Storage temperature -55 to +70 °C
    Product-/housing material ABS
    Protection class IP30
    System requirements Adobe® Acrobat Reader
    Product colour white
    Standards CE 2014/30/EU; DIN EN 61326-1:2013; DIN EN 50581:2013; CFR 21 Part 11 (in use with testo ComSoft CFR-Software); HACCP International
    Channels 5 internal
    Operating time Unlimited
    Authorizations CE
    Alarm function via LED and Display
    Battery type Lithium battery CR2450, 3V, exchangeable
    Battery life 120 days (at +25 °C and 15 min. meas. cycle)
    Display type segment LCD
    Display size one-line
    Display ligthing no
    Interface USB; NFC
    Memory 64,000 measurement values (temperature and humidity); 1,000 measurement values (shock)
