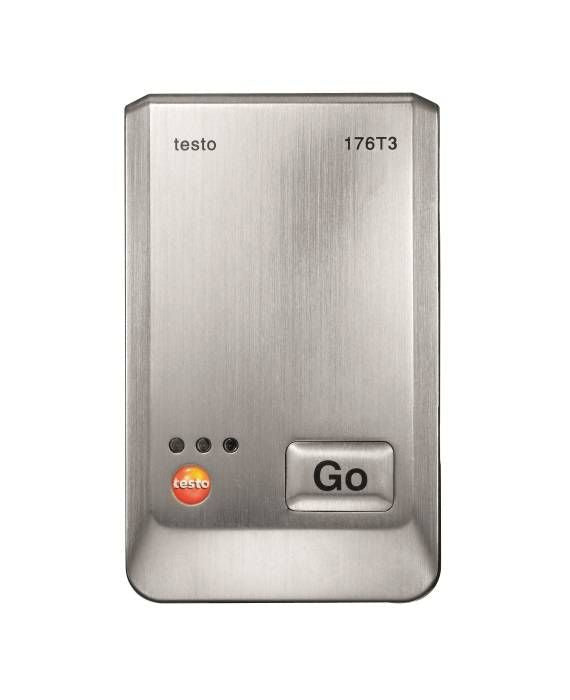

Testo 176 T3 Four Channel Temperature Data Logger with External Sensor Connection - 0572 1763

Testo

0572 1763

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

It is often important to check whether the prescribed temperature values in a process are really being adhered to. The Testo 176 T3 in its robust metal housing is the right data logger for measuring and recording temperatures simultaneously at four different sites in industrial processes.

Up to four thermocouple probes can be connected to the data logger (temperature probes TC Type K, Type T or Type J). The advantage of thermocouple probes is that they react very quickly and cover a large measuring range. For example, you can record particularly low temperatures (as low as -195 °C) using a temperature probe TC Type K – depending on the model selected – or you can even carry out high-temperature measurements (up to +1,000 °C). This enables you to both take measurements in super freezers and also monitor high-temperature industrial processes. Thanks to the broad selection of connectable thermocouple probes, the requirements of the most widely differing applications can be fulfilled. You can select the thermocouple probes from our large probes range and order them when purchasing the data logger.

The memory of the temperature data logger records up to 2 million readings and can therefore be used for long-term measurements, eliminating the need for the data logger to be read out overly frequently. The data logger has a battery life of up to 8 years, which also makes it a practical instrument for long-term measurements. The free ComSoft Basic software allows fast programming of the data logger and easy data analysis.



Please Note: The temperature data logger is programmed and read out by means of a USB cable, which is not included in the delivery. You can also use the cable to transmit the measurement data to your PC. You also have the option of using an SD card for this. You can order both when purchasing your data logger.



Available Probes and Accessories (purchase separately):

FEATURES AND CAPABILITIES

  • 4-channel temperature logger in metal housing
  • Simultaneous measurement at four sites
  • Thermocouples Type T, Type K, Type J connectable
  • Large data memory for 2 million readings with high data security
  • Up to 8 years battery life (standard battery (AA) exchangeable by the user)
  • Data transfer via USB cable or SD card
  • IP65 protection class

WHAT'S INCLUDED?

  • Testo 176 T3 temperature data logger
  • Wall bracket
  • Lock
  • Battery
  • Calibration protocol

SPECIFICATION

  • Measuring range: -200 to +1000 °C (Temperature -  TC Type K)
  • Accuracy:
    • ±1 % of mv (-200 to -100.1 °C) ±1 Digit
    • ±0.3 °C (-100 to +70 °C) ±1 Digit
    • ±0.5 % of mv (+70.1 to +1000 °C) ±1 Digit
  • Measuring rate: 1 s to 24 h; 2 s to 24 h (online measurement)
  • Channels: 4 external
  • Connectable probes: 4 x thermocouple (type T, K and J)
  • Memory: 2 million measuring values
  • Interface: mini USB, SD card slot
  • Operating temperature: -20 to +70 °C
  • Storage temperature: -40 to +85 °C
  • Battery type: 1 x Lithium (TL-5903)
  • Battery life: 8 years at 15 min. meas. rate, +25 °C
  • Protection class: IP65
